Product Details
|
Brief Description: The MBR20200CT is a fast-recovery Schottky rectifier diode , designed for automotive applications. It features a common cathode configuration and is packaged in a TO-220AB package. Features: Voltage - Forward (Vf) (Max): 890mV @ 10A Voltage - DC Reverse (Vr) (Max): 200V Speed: Fast Recovery <= 500ns, > 200mA (Io) Series: Automotive, AEC-Q101 RoHS Status: ROHS3 Compliant Peak Reverse Current: 100μA Peak Non-Repetitive Surge Current: 170A Operating Temperature - Junction: -55°C ~ 175°C Forward Current: 20A Element Configuration: Common Cathode Diode Type: Schottky Diode Configuration: 1 Pair Common Cathode Current - Reverse Leakage @ Vr: 100μA @ 200V Current - Average Rectified (Io): 10A Average Rectified Current: 10A Application Grade: The MBR20200CT is designed for automotive applications, making it suitable for use in vehicles, including power supplies, battery management systems, and other high-reliability applications. Applications: The MBR20200CT can be used in a variety of applications, including: Automotive power supplies Battery management systems DC-DC converters Power factor correction circuits High-reliability applications requiring fast-recovery Schottky rectifiers Overall, the MBR20200CT is a high-reliability Schottky rectifier diode designed for automotive applications, offering fast recovery and high forward current capabilities. |
Product Description
| Type | Description |
| ANSC PART# | ANSC-MBR20200CT |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | Original |
| Series | SWITCHMODE™ |
| Packaging | Tube |
| Part Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 mA @ 200 V |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |

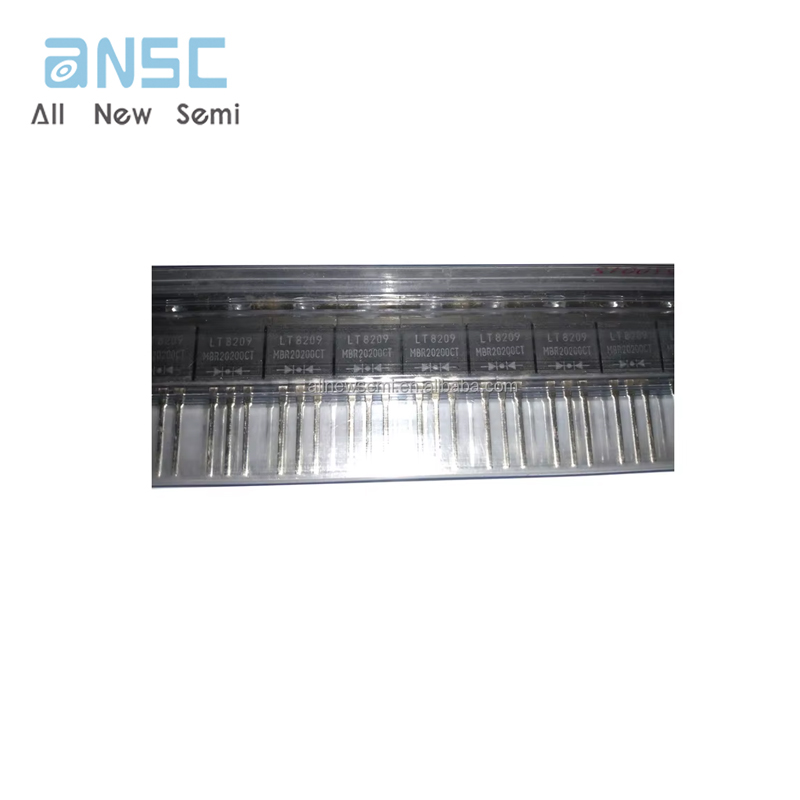

Actual image of the product

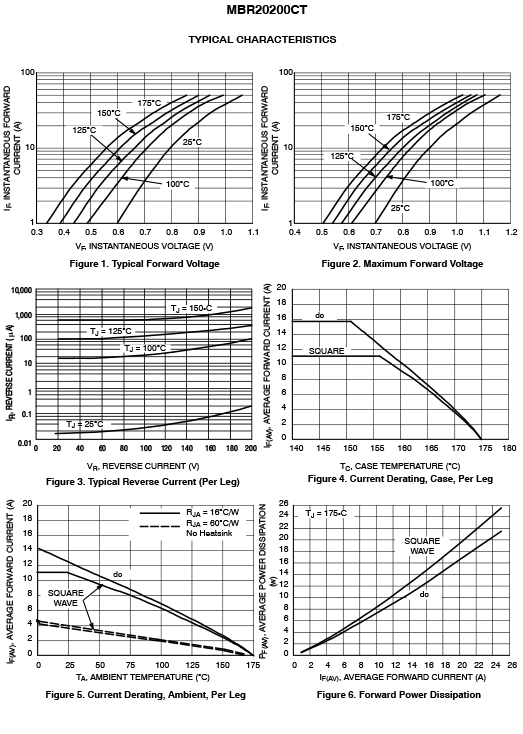

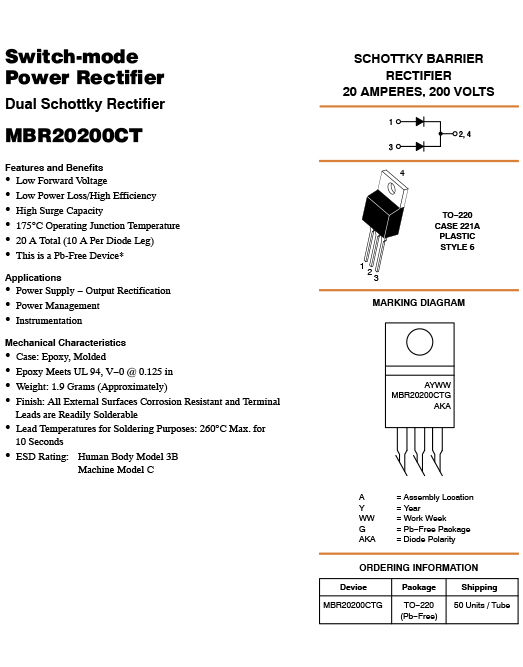

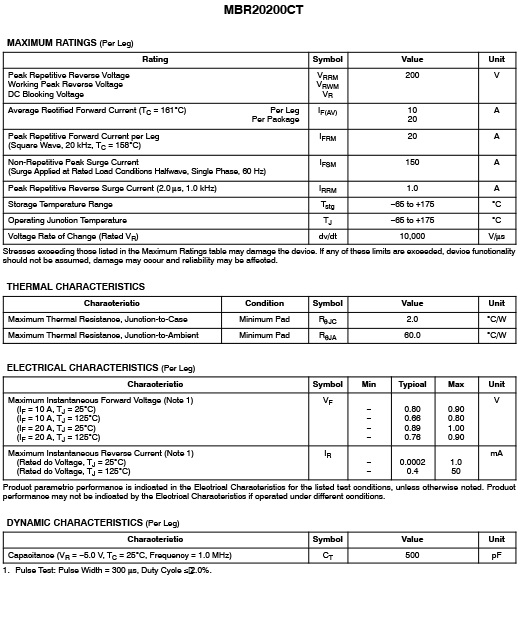

Product datasheet
For more information, please download
