Product Details
|
Brief Description: The MBR2545CT is a Schottky rectifier . designed for high-efficiency applications. It features a low power loss and free-wheeling diode configuration, making it suitable for use in power supplies, converters, and inverters. Features: Schottky diode configuration with low forward voltage drop (820mV) Low power loss and free-wheeling diode for high-efficiency applications Fast recovery time (<= 500ns) for high-speed switching High current rating (30A) and high surge current rating (150A) Operating temperature range: -65°C to 150°C RoHS3 compliant and Pb-free Application Grade: The MBR2545CT is designed for high-efficiency applications, such as: Power supplies Converters Inverters Efficiency-critical applications Applications: Power supplies for industrial and commercial equipment Converters for renewable energy systems Inverters for motor drives and power conversion Efficiency-critical applications in automotive, aerospace, and medical industries Overall, the MBR2545CT is a high-performance Schottky rectifier array that offers low power loss, high efficiency, and high current handling capabilities, making it suitable for a wide range of applications. |
Product Description
| Type | Description |
| PART# | MBR2545CT |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 820 mV @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 VV |
| Operating Temperature - Junction |
-65°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Base Product Number | MBR2545 |

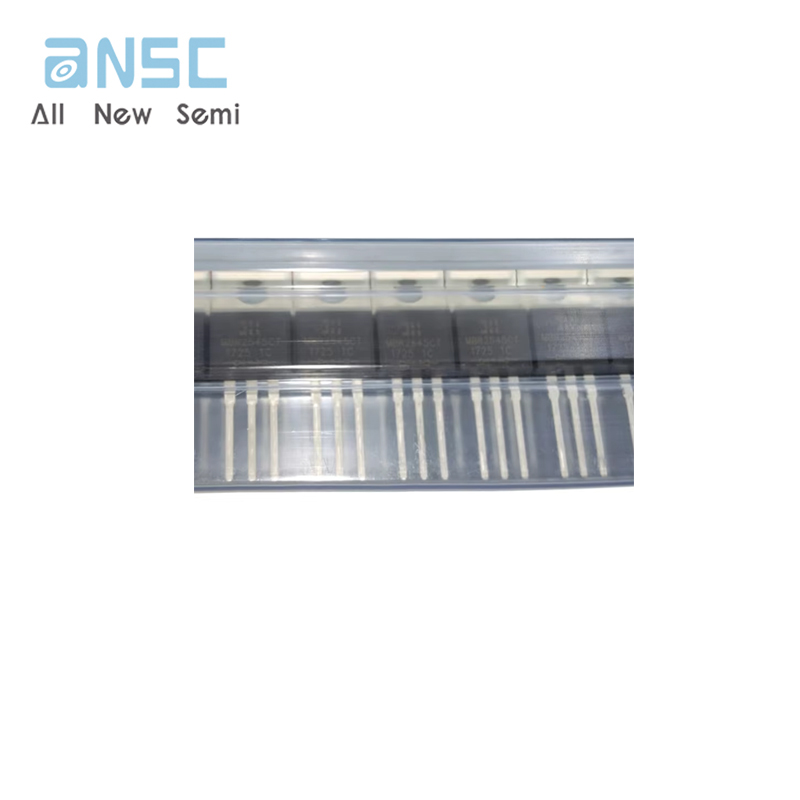

Actual image of the product
