Product Description

The S558-5999-Q3-F is a high-performance pulse transformer designed . Specifically categorized under pulse transformers, this component is engineered to meet the stringent requirements of telecommunications and datacom applications. With its compact module design and lead-free construction, it ensures reliability and environmental compliance.

Product Features

· Inductance: The transformer boasts an inductance of 350 μH, making it suitable for applications requiring precise signal isolation and impedance matching.

· Insertion Loss: The insertion loss is minimized at -1 dB, ensuring minimal signal degradation during transmission.

· Return Loss: The return loss is optimized at -18 dB, ensuring high signal integrity and minimal reflections.

· Operating Temperature: The operating temperature range is from 0°C to 70°C, making it suitable for a wide range of environments.

· Mounting Type: The surface mount design (SMD/SMT) allows for easy integration into modern PCBs.

· Lead/Base Style: The gull wing lead style facilitates efficient PCB assembly.

· RoHS Compliance: The product is fully compliant with ROHS3 standards, ensuring environmental sustainability.

Product Applications

Primary Applications:

Telecommunications: The transformer's high inductance and low insertion/return loss make it ideal for use in telecommunications systems where signal integrity is crucial.

Datacom: Its compact size and reliable performance make it suitable for datacom applications requiring efficient signal transmission.

Secondary Applications:

Industrial Automation: The transformer's robust design and wide operating temperature range make it suitable for industrial automation systems.

Medical Equipment: Its high reliability and low signal degradation ensure it can be used in medical equipment where precise signal transmission is essential.

Embedded Modules

The S558-5999-Q3-F pulse transformer is commonly used in various embedded modules such as:

· Ethernet Switches: Its high inductance and low insertion/return loss ensure efficient signal transmission in Ethernet switches.

· Network Interface Cards (NICs): The transformer's compact size and reliable performance make it an ideal choice for NICs.

· Industrial Control Systems: Its robust design and wide operating temperature range make it suitable for use in industrial control systems.

In summary, the S558-5999-Q3-F pulse transformer. offers exceptional performance in telecommunications and datacom applications due to its high inductance, low insertion/return loss, and reliable surface mount design. Its versatility makes it suitable for a variety of secondary applications including industrial automation and medical equipment.

 Product Description

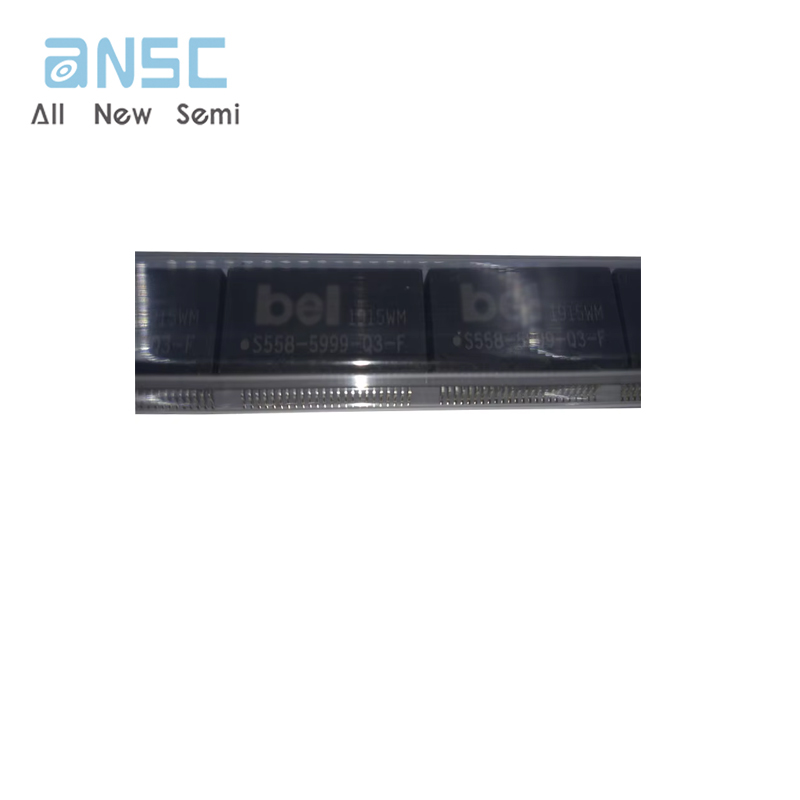

Actual image of the product
