Product Details
Features
• Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designate RoHS Compliant. See ordering information)
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
• High Surge forward current capability
• Extremely Low Thermal Resistance
• Halogen free available upon request by adding suffix "-HF"
Product Description
|
Type |
Description |
|---|---|
| PART# | SL310A-TP |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
Schottky |
|
Voltage - DC Reverse (Vr) (Max) |
100 V |
|
Current - Average Rectified (Io) |
3A |
|
Voltage - Forward (Vf) (Max) @ If |
600 mV @ 3 A |
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
|
Current - Reverse Leakage @ Vr |
500 µA @ 100 V |
|
Capacitance @ Vr, F |
- |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AC, SMA |
|
Supplier Device Package |
DO-214AC (SMA) |
|
Operating Temperature - Junction |
-55°C ~ 150°C |
|
Base Product Number |
SL310 |

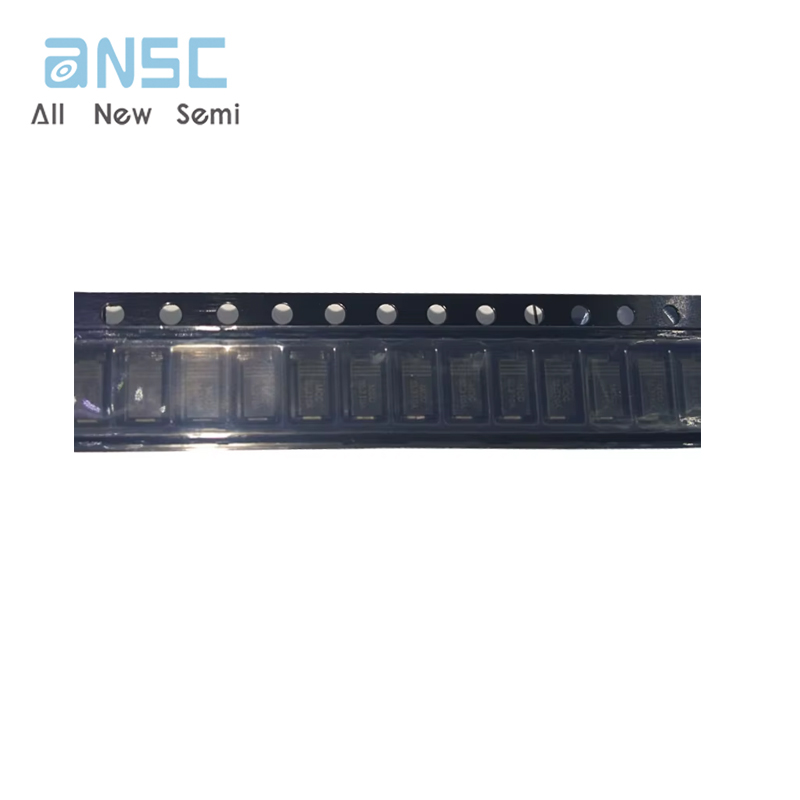

Actual image of the product
