Product Details
| Product Description: SP4065-08ATG TVS Diode The SP4065-08ATG is a high-performance, low-capacitance TVS (Transient Voltage Suppressor) diode ., designed to provide robust protection against voltage transients in automotive applications. This unidirectional diode is engineered with silicon as the diode element material, ensuring reliable operation across a wide temperature range. Features: Low Capacitance: With a capacitance of 4.4 pF, this diode minimizes the impact on signal integrity and high-frequency performance. High Clamping Voltage: The clamping voltage is set at 13.5 V, providing effective protection against voltage spikes. High Surge Current Capability: The peak pulse current rating is 20 A, making it suitable for handling high surge currents. Surface Mount Technology (SMT): The 10-TFSOP and 10-MSOP packages are designed for easy surface mount assembly. Automotive Grade: Compliant with AEC-Q101 standards, ensuring reliability in harsh automotive environments. Power Line Protection: Equipped with power line protection features, making it ideal for protecting sensitive electronic components from voltage transients. Applications: Primary Applications: Automotive Systems: The SP4065-08ATG is specifically designed to protect automotive systems from voltage transients, ensuring reliable operation in harsh electrical environments. Industrial Control Systems: Its high surge current capability and low capacitance make it suitable for industrial control systems where robust transient protection is required. Secondary Applications: Consumer Electronics: Can be used in consumer electronics to protect against voltage spikes and transients. Medical Devices: Provides reliable transient protection in medical devices where safety and reliability are paramount. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - SP4065-08ATG |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | SP4065, SPA® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 8 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 13.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 20A (8/20µs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | Yes |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |

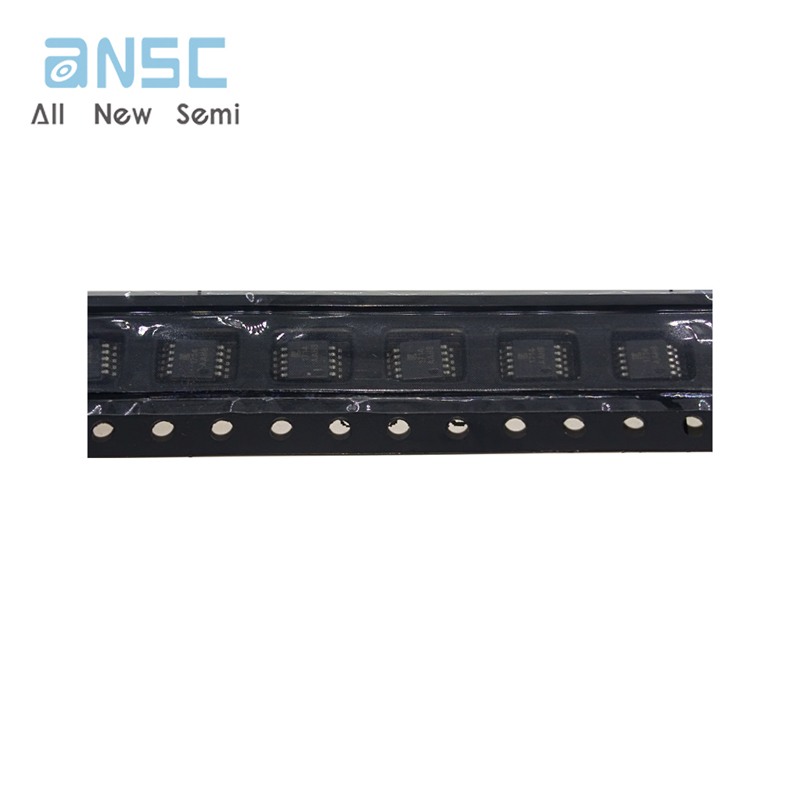

Actual image of the product

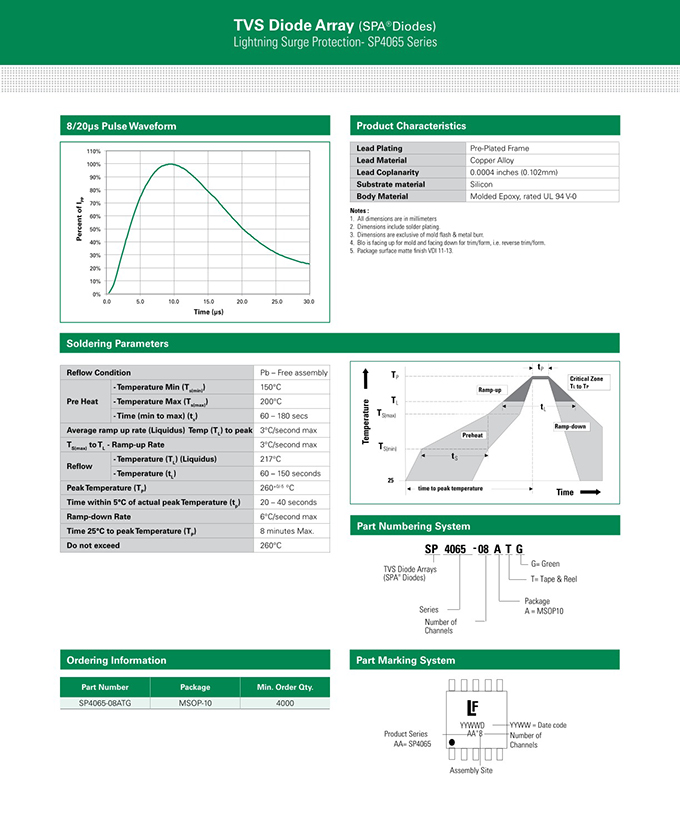

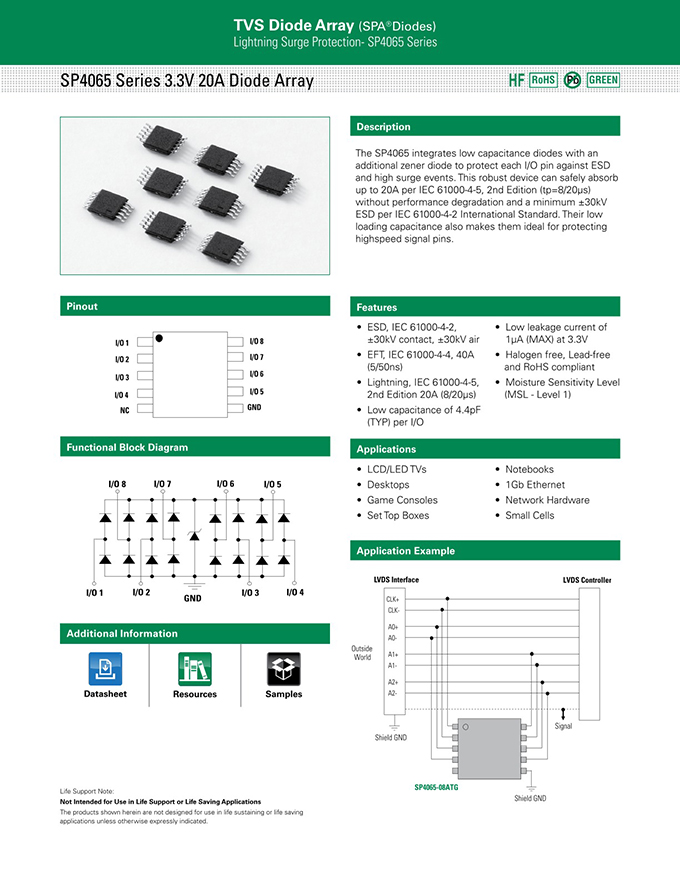

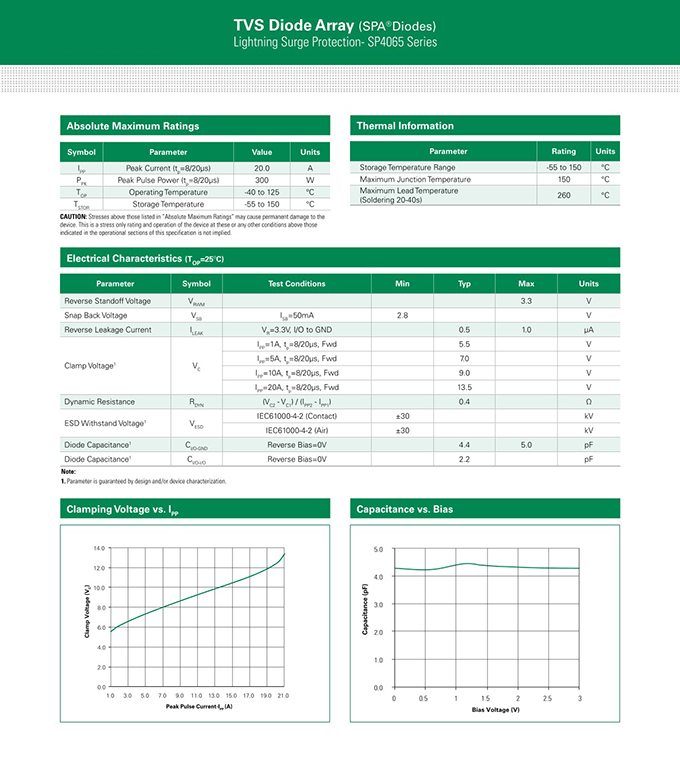

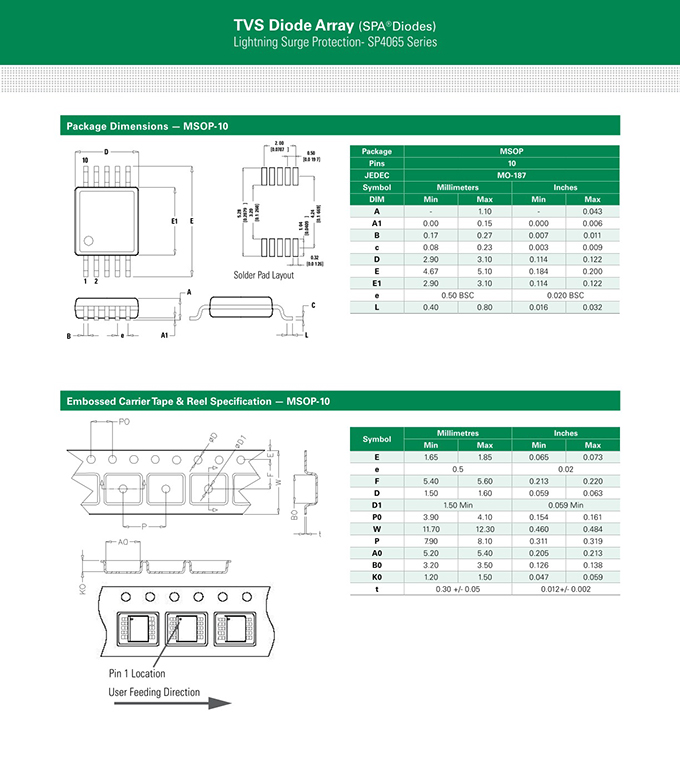

Product datasheet
For more information, please download
