Product Details
The CDR / CDRH series of ferrite shielded inductors exhibit excellent current handling characteristics.
▪ Ferrite Shielded
▪ Up to 8 Amps
▪ Competitive Prices
▪ Low Profile to 2.0mm
▪ Typical Reel Size 1000pcs
Product Description
| Type# | Description |
| Part# | CDRH125-470M |
| category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| manufacturer | |
| series | CDRH125 |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| product status | discontinued |
| inductance | 47 H |
| Tolerance | ±20% |
| Rated Current (Ampere) | 1.8 A |
| Current - Saturation (Isat) | - |
| shield | shield |
| DC resistance (DCR) | 75 milliohms max |
| Operating temperature | -25°C ~ 80°C |
| Inductor Frequency - Test | 1 kHz |
| installation type | Surface Mount Type |
| Package/Enclosure | non-standard |
| Supplier Device Packaging | - |
| size/dimension | 0.472"L x 0.472"W (12.00mm x 12.00mm) |
| Height - Mounted (Maximum) | 0.236"(6.00mm) |

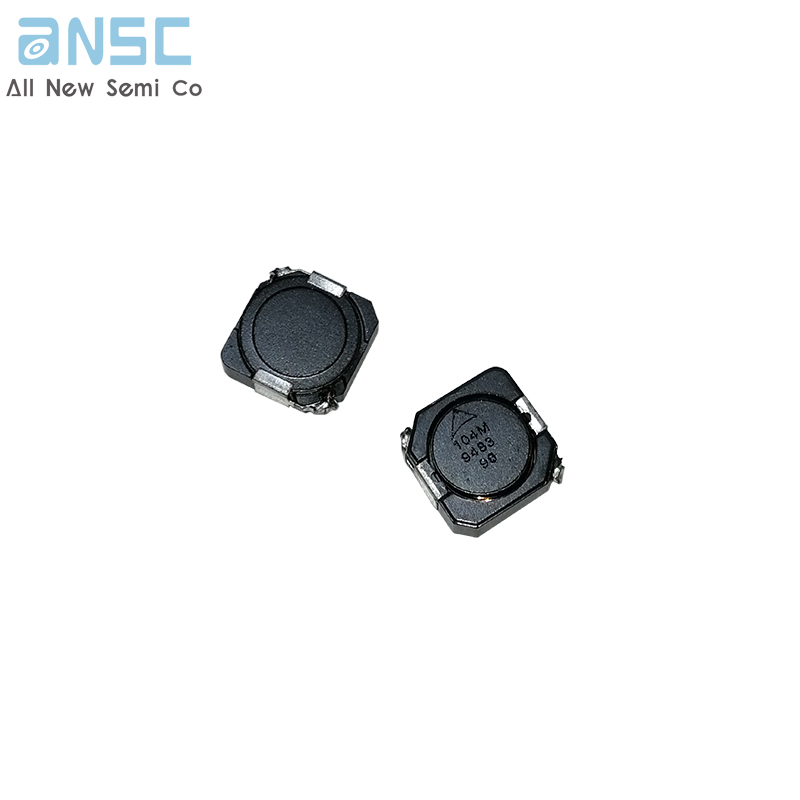

Product Photos
