Product Details
Brief Description:
The SUD50P04-09L-E3 is a P-Channel TrenchFET MOSFET , designed for surface mount and through-hole
applications. It features a high drain current of 50A and a low on-resistance of 9.4mΩ, making it suitable for high-power switching
applications.
Features:
High drain current (ID) of 50A
Low on-resistance (Rds(on)) of 9.4mΩ
High breakdown voltage (Vds) of 40V
Operating temperature range of -55°C to 175°C
Surface mount and through-hole packaging options
Lead-free and RoHS3 compliant
ECCN code EAR99
Application Grade:
The SUD50P04-09L-E3 is designed for high-power switching applications, such as:
Power supplies
Motor control
Power conversion
Automotive electronics
Applications:
High-power switching circuits
Power supplies for industrial and automotive applications
Motor control systems
Power conversion circuits
Automotive electronics, such as engine management systems and powertrain control modules.

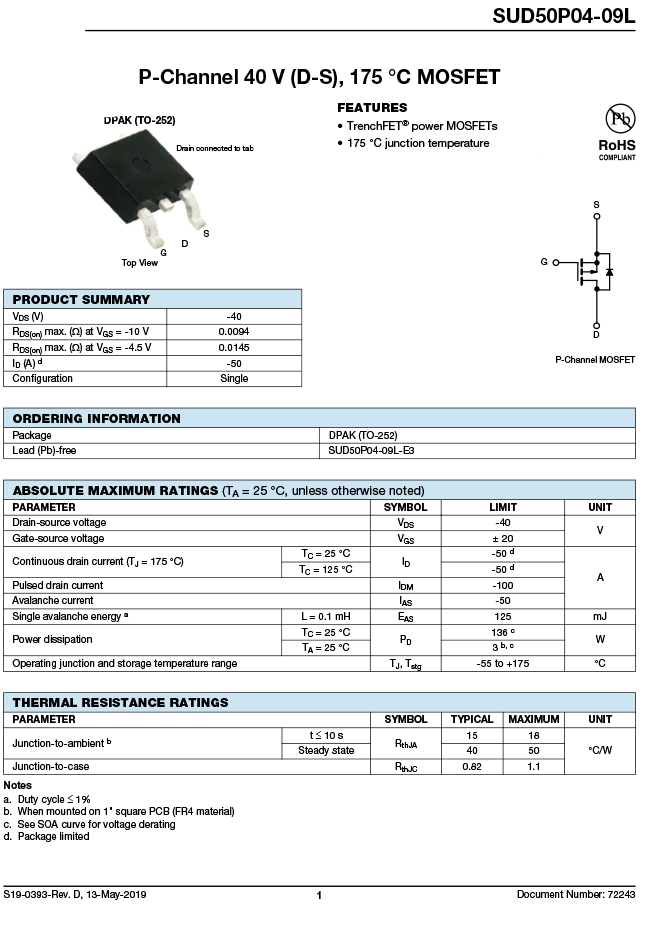

Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
Original |
|
Series |
TrenchFET® |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Obsolete |
|
FET Type |
P-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
40 V |
|
Current - Continuous Drain (Id) @ 25°C |
50A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
|
Rds On (Max) @ Id, Vgs |
9.4mOhm @ 24A, 10V |
|
Vgs(th) (Max) @ Id |
3V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
150 nC @ 10 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
4800 pF @ 25 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
3W (Ta), 136W (Tc) |
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
|
Grade |
- |
|
Qualification |
- |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
TO-252AA |
|
Package / Case |
TO-252-3, DPAK (2 Leads + Tab), SC-63 |
|
Base Product Number |
SUD50 |

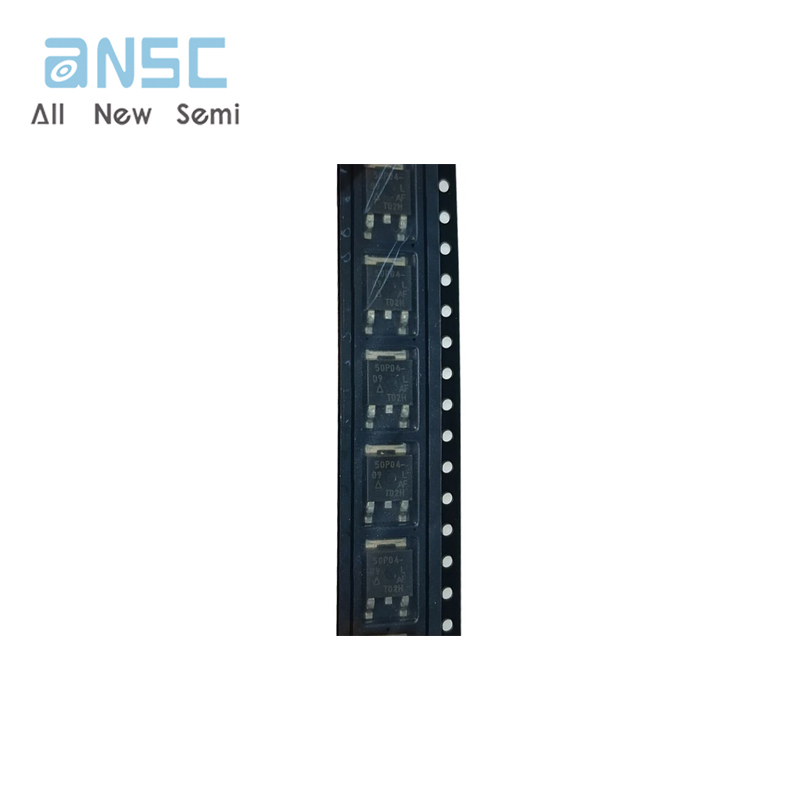

Actual image of the product
