Product Details
|
Description: The UUX0J681MNL1GS is a high-quality, general-purpose aluminum electrolytic capacitor designed for surface mount applications. This capacitor is part of the UUX series, known for its reliability and performance in various electronic circuits. With a rated DC voltage of 6.3V and a capacitance of 680μF, this component is ideal for applications requiring stable and efficient energy storage. Features: - High Capacitance: 680μF, making it suitable for applications requiring significant energy storage. - Wide Operating Temperature Range: -55°C to 105°C, ensuring reliable operation in diverse environmental conditions. - Low ESR and High Ripple Current: The capacitor's low Equivalent Series Resistance (ESR) and high ripple current capabilities make it suitable for applications with high-frequency and high-current demands. - Surface Mount Design: The SMD/SMT termination allows for easy integration into modern electronic devices. - RoHS3 Compliant: Meets the requirements of the Restriction of Hazardous Substances Directive, ensuring compliance with environmental regulations. - Long Lifetime: With a lifespan of 2000 hours at 105°C, this capacitor is designed to provide long-lasting performance. Applications: 1. General Purpose Applications: Suitable for general-purpose applications such as power supplies, filters, and decoupling circuits. 2. Secondary Applications: - Audio Equipment: Used in audio circuits to filter out unwanted frequencies and stabilize power supply. - Medical Devices: Employed in medical devices where reliability and stability are crucial. - Industrial Control Systems: Utilized in industrial control systems where high capacitance and low ESR are essential. |
Product Description
| Type | Description |
| PART# | UUX0J681MNL1GS |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | Original |
| Series | UUX |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. |
2000 Hrs @ 105°C |
| Operating Temperature |
-55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 408 mA @ 120 Hz |
| Ripple Current @ High Frequency | 530.4 mA @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |

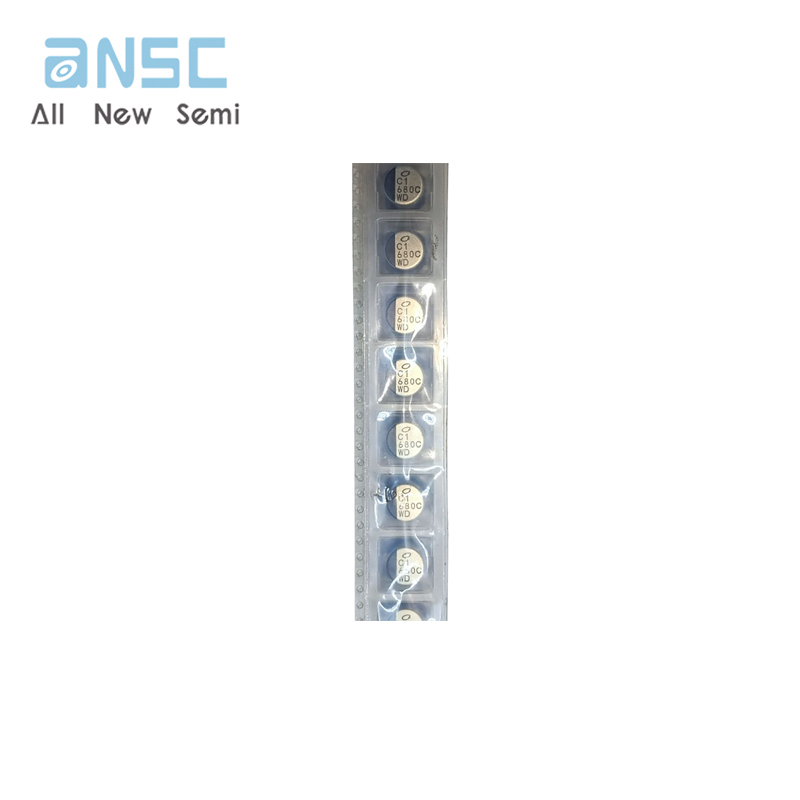

Actual image of the product
