Product Details
The IRF7389TRPBF is a high-performance, surface-mount N-Channel and P-Channel Metal-Oxide Semiconductor Field-Effect Transistor (MOSFET) array. This device is designed for switching applications and features a logic-level gate, making it suitable for use in a wide range of applications.
Product Features
-
Ultra-low resistance with a maximum Rds(on) of 29mΩ
-
High power dissipation of 2.5W
-
Operating temperature range of -55°C to 150°C
-
Logic-level gate for easy integration with microcontrollers
-
Avalanche-rated for enhanced reliability
-
Surface-mount package with a 8-SOIC (0.154, 3.90mm Width) case
Product Applications
-
Switching applications in automotive, industrial, and consumer electronics
-
Power supplies and converters
-
Motor control and drives
-
LED lighting and displays
Embedded Modules
-
This component is commonly used in various embedded systems, including:
-
Power supplies and converters
-
Motor control and drives
-
LED lighting and displays
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs FET, MOSFET Arrays |
|
Manufacturer |
- |
|
Series |
HEXFET® |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
MOSFET (Metal Oxide) |
|
Configuration |
N and P-Channel |
|
FET Feature |
Logic Level Gate |
|
Drain to Source Voltage (Vdss) |
30V |
|
Current - Continuous Drain (Id) @ 25°C |
- |
|
Rds On (Max) @ Id, Vgs |
29mOhm @ 5.8A, 10V |
|
Vgs(th) (Max) @ Id |
1V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
33nC @ 10V |
|
Input Capacitance (Ciss) (Max) @ Vds |
650pF @ 25V |
|
Power - Max |
2.5W |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
Supplier Device Package |
8-SO |
|
Base Product Number |
IRF738 |

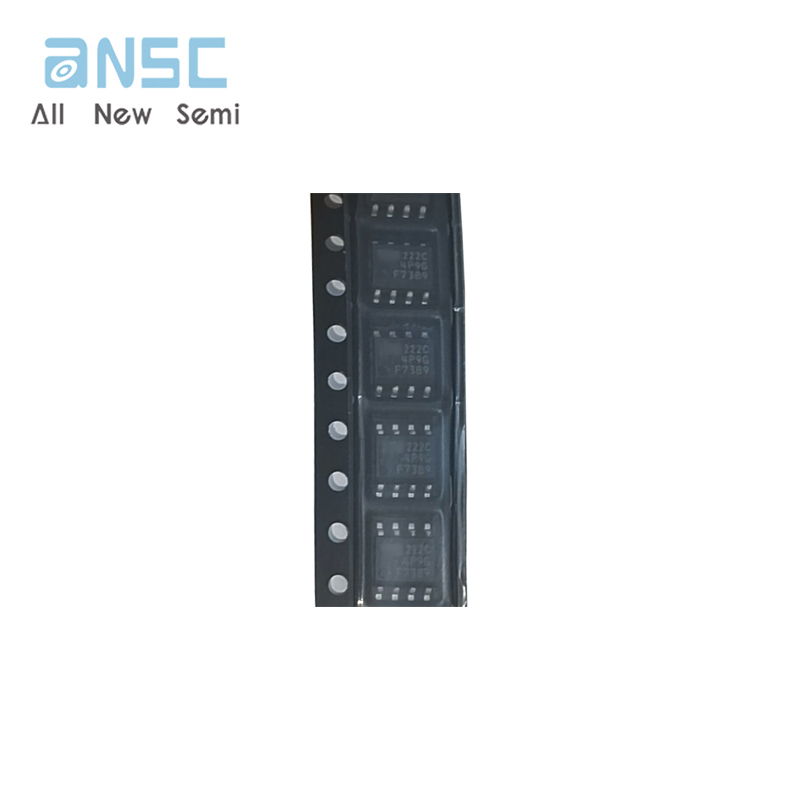

Actual image of the product

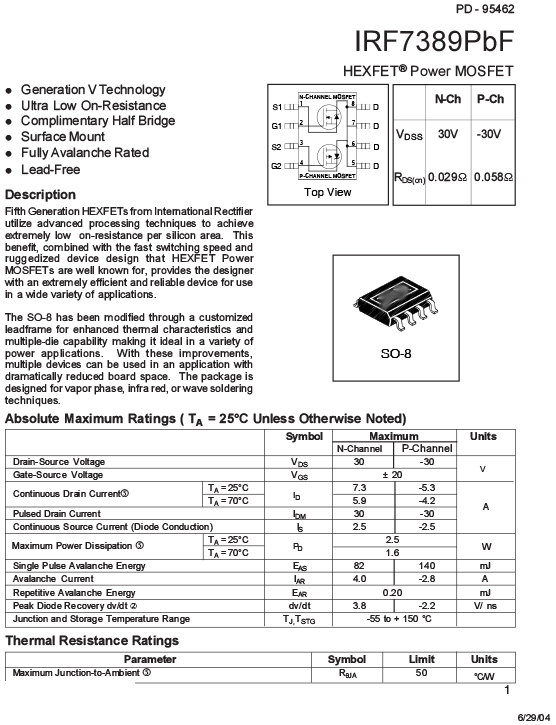

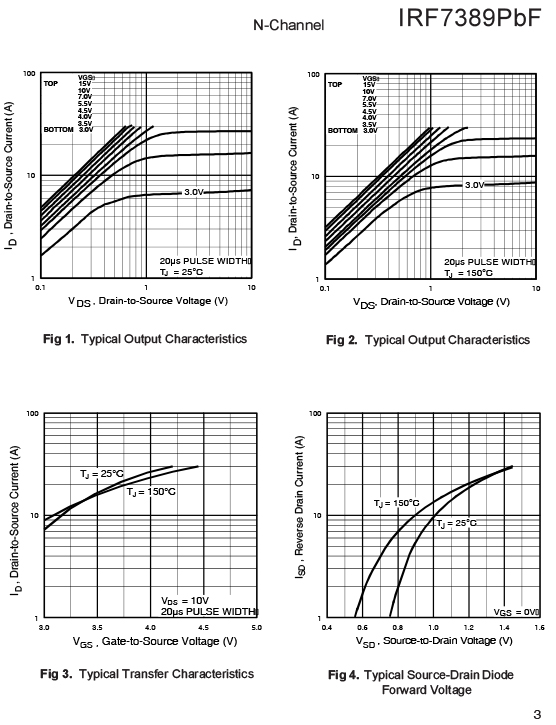

Product datasheet
For more information, please download
