Product Details
Features
• Extremely Low On-Resistance:
170mΩ @ VGS = 4.5V
• High Drain Current: 1.1A
• Ideal for Notebook Computer, Portable Phone, PCMCIA
Cards, and Battery Powered Circuits
• Lead Free By Design/RoHS Compliant (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
• ESD Protected Gate
• "Green" Device (Note 3)
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
- |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
12 V |
|
Current - Continuous Drain (Id) @ 25°C |
9.3A (Ta) |
|
Drive Voltage (Max Rds On, Min Rds On) |
1.2V, 2.5V |
|
Rds On (Max) @ Id, Vgs |
10mOhm @ 9.7A, 4.5V |
|
Vgs(th) (Max) @ Id |
800mV @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
50.6 nC @ 8 V |
|
Vgs (Max) |
±8V |
|
Input Capacitance (Ciss) (Max) @ Vds |
2426 pF @ 10 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
680mW (Ta) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Grade |
- |
|
Qualification |
- |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
SC-59-3 |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Base Product Number |
DMN1019 |

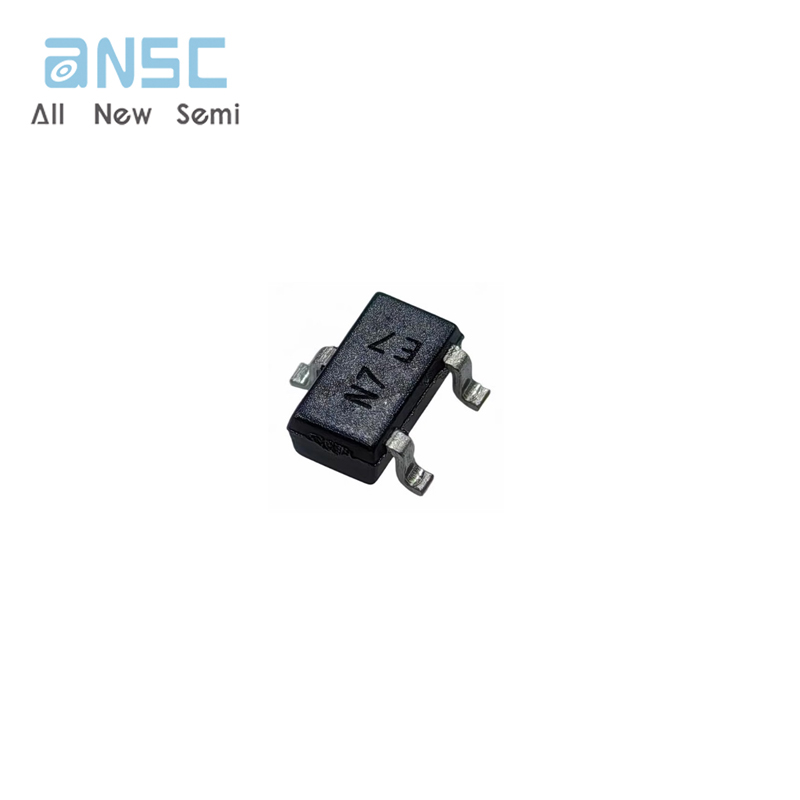

Actual image of the product
