Product Details
NPN Silicon AF Transistor
• For general AF applications
• High collector current
• High current gain
• Low collector-emitter saturation voltage
• Complementary types: BC807W, BC808W (PNP)
Product Description
Type | Description |
|---|---|
Category | Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors |
Mfr | / |
Series | - |
Packaging | Tape & Reel (TR) |
Part Status | Active |
Transistor Type | NPN |
Current - Collector (Ic) (Max) | 500 mA |
Voltage - Collector Emitter Breakdown (Max) | 45 V |
Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA |
Current - Collector Cutoff (Max) | 100nA (ICBO) |
DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V |
Power - Max | 200 mW |
Frequency - Transition | 100MHz |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | SC-70, SOT-323 |
Supplier Device Package | SOT-323 |
Base Product Number | BC817 |

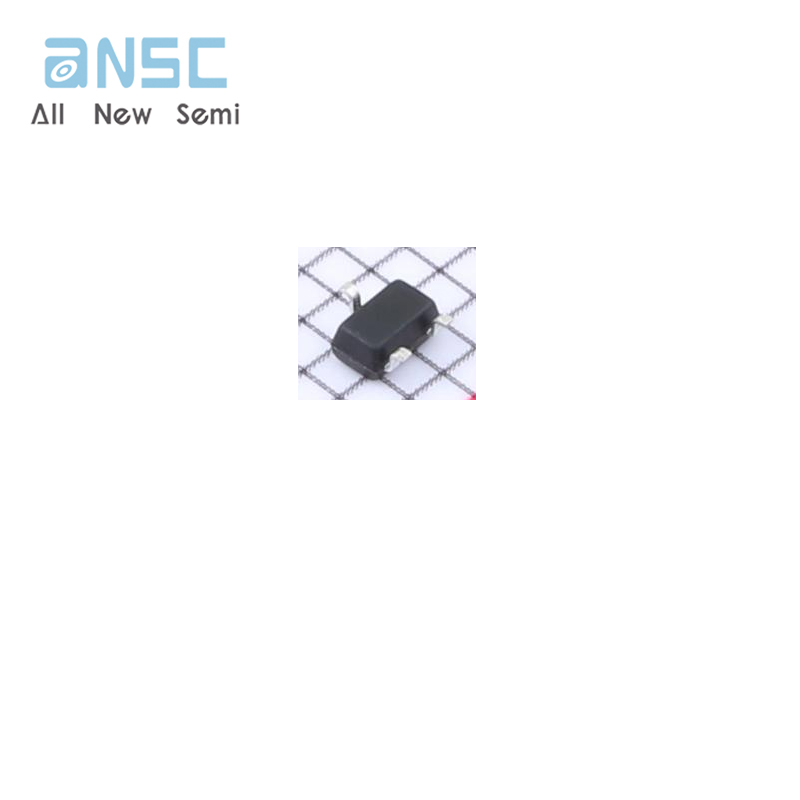

Actual image of the product
