Product Features
• Low power loss, high efficiency
• Low leakage
• Low forward voltage drop
• High current capability
• High speed switching
• High reliability
• High current surge
Product Mechanical Data
•Case: DO-201AD, moulded plastic
•Terminals: MIL-STD-202E, method 208C guaranteed
•Polarity: Colored band denotes cathode end
•Mounting position: Any
Product Description
| Type# | Description |
| Part# | HER502 |
| Part Status | Active |
| Manufacturer |
/ |
| Additional Feature | HIGH RELIABILITY |
| Application | EFFICIENCY |
| Breakdown Voltage-Min | 100 V |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.1 V |
| JEDEC-95 Code | DO-201AD |
| JESD-30 Code | O-PALF-W2 |
| Non-rep Pk Forward Current-Max | 200 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min |
-65 °C |
| Output Current-Max | 5 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Reference Standard | MIL-STD-202 |
| Rep Pk Reverse Voltage-Max | 100 V |
| Reverse Current-Max |
10 µA |
| Reverse Recovery Time-Max |
0.05 µs |
| Reverse Test Voltage | 100 V |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |

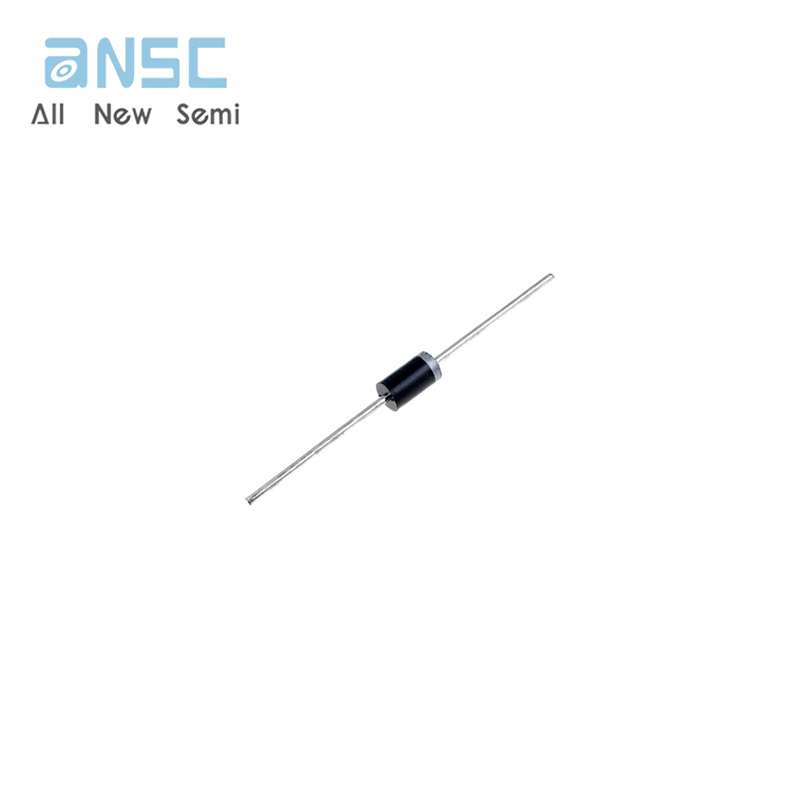

Actual image of the product
