Product Details
Overview of the SLF Series
FEATURES
○ Magnetic shield type wound inductor for power circuits.
○ Product lineup allows for various usages.
APPLICATION
Thin-screen TV, LCDs, AV equipment, gaming equipment, other electrical devices
Product Description
Type | Description |
|---|---|
Category | Inductors, Coils, Chokes Fixed Inductors |
Mfr | - |
Series | SLF |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Last Time Buy |
Type | Drum Core, Wirewound |
Material - Core | Ferrite |
Inductance | 15 µH |
Tolerance | ±20% |
Current Rating (Amps) | 1.53 A |
Current - Saturation (Isat) | 1.1A |
Shielding | Shielded |
DC Resistance (DCR) | 62.4mOhm Max |
Q @ Freq | - |
Frequency - Self Resonant | - |
Ratings | - |
Operating Temperature | -40°C ~ 105°C |
Inductance Frequency - Test | 100 kHz |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
Height - Seated (Max) | 0.189" (4.80mm) |

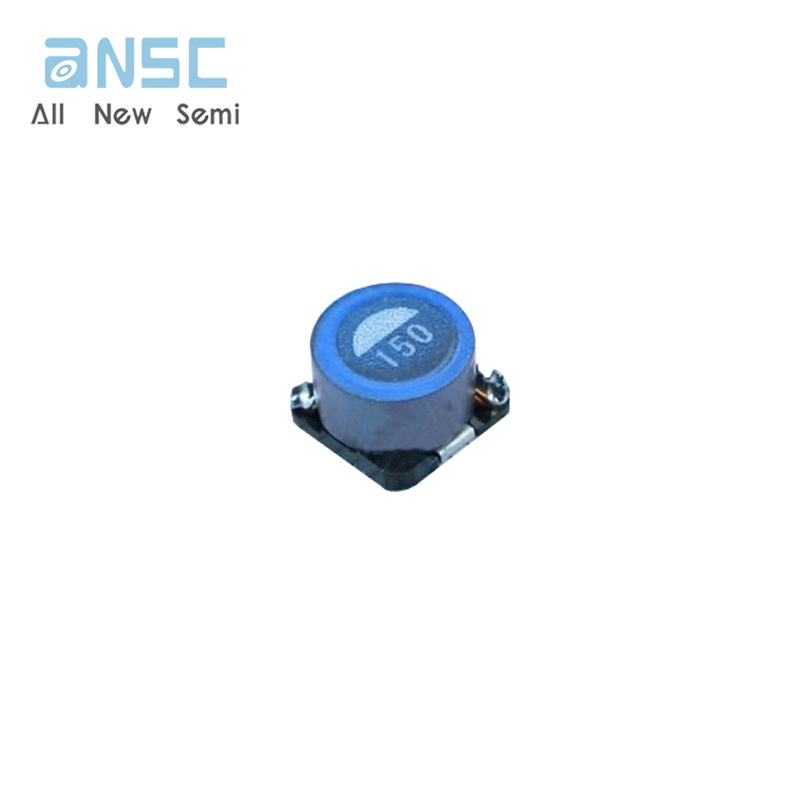

Actual image of the product

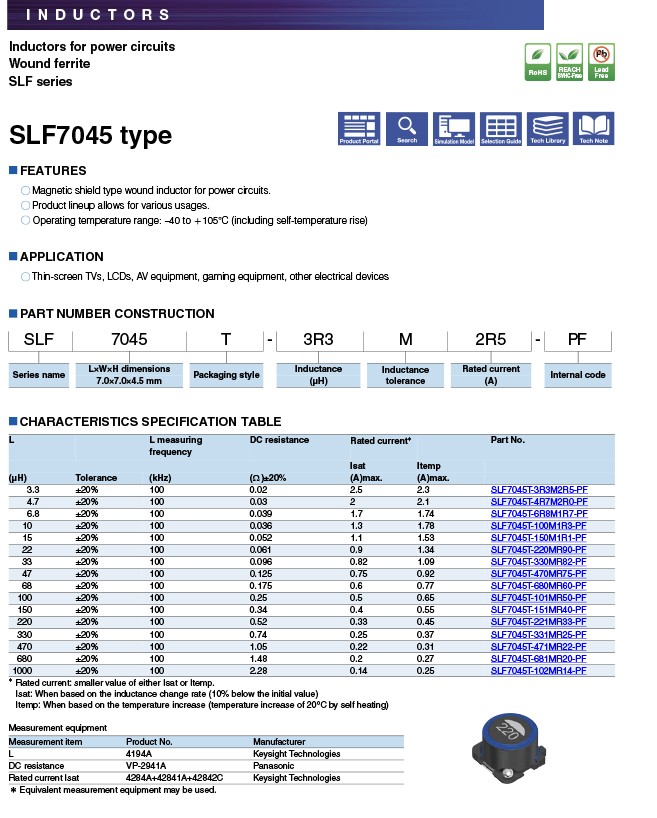

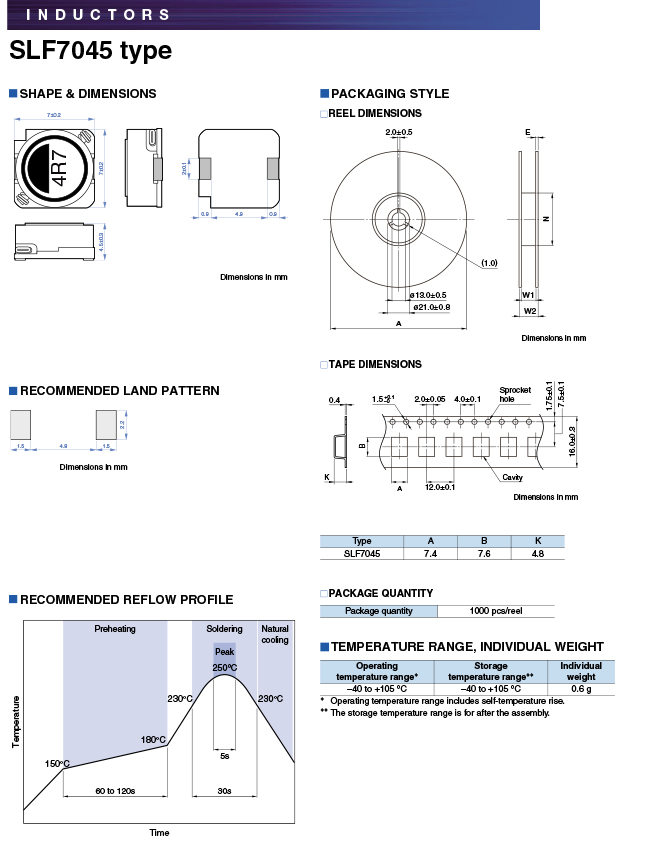

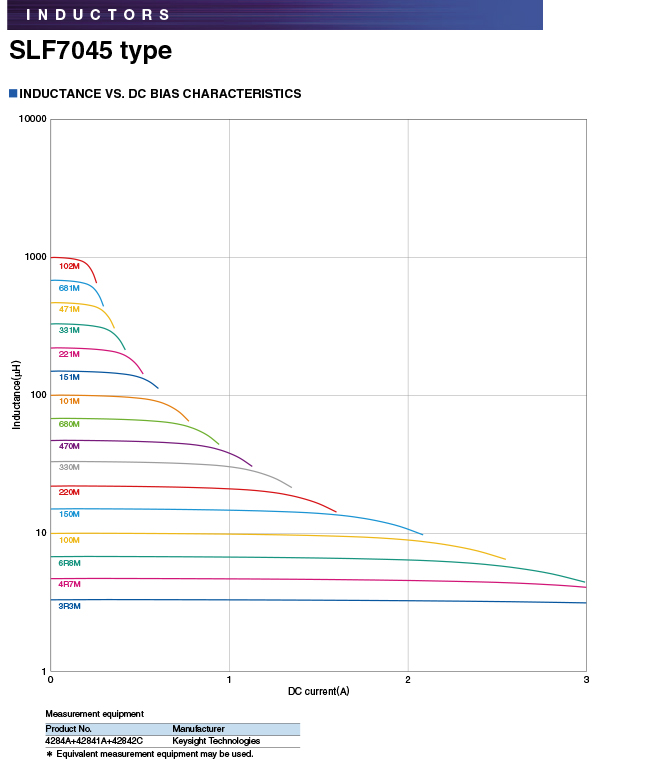

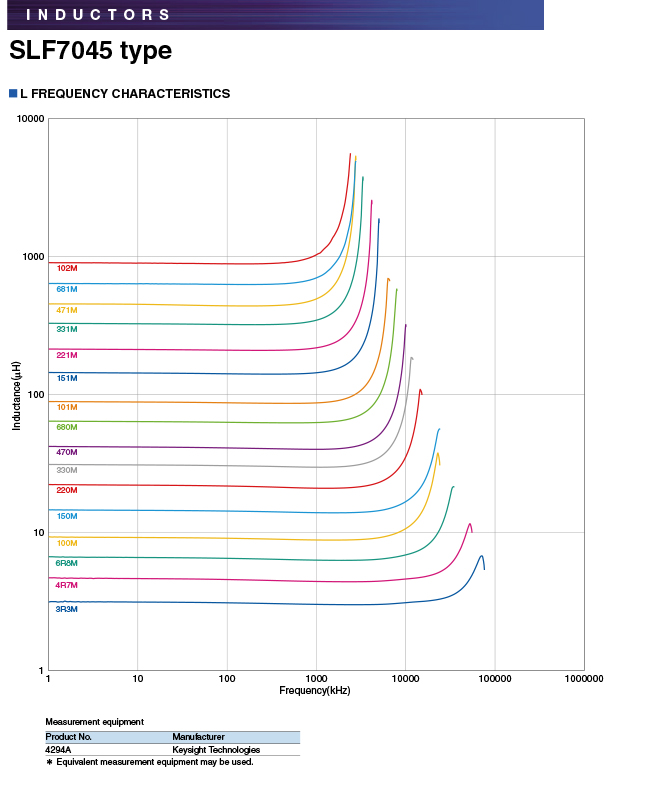

Product datasheet
For more information, please download
