Product Details
ALUMINUM ELECTROLYTIC CAPACITORS
Standard snap-ins, 105°C
● Endurance with ripple current : 2,000 hours at 105℃
● Non solvent resistant type
● RoHS2 Compliant
Product Description
| Type | Description |
| PART# | EKMQ401VSN271MR30S |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | Original |
| Series | KMQ |
| cms-packaging | Bulk |
| cms-part-status | Active |
| Capacitance |
270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. |
2000 Hrs @ 105°C |
| Operating Temperature |
-25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.22 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.7446 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |

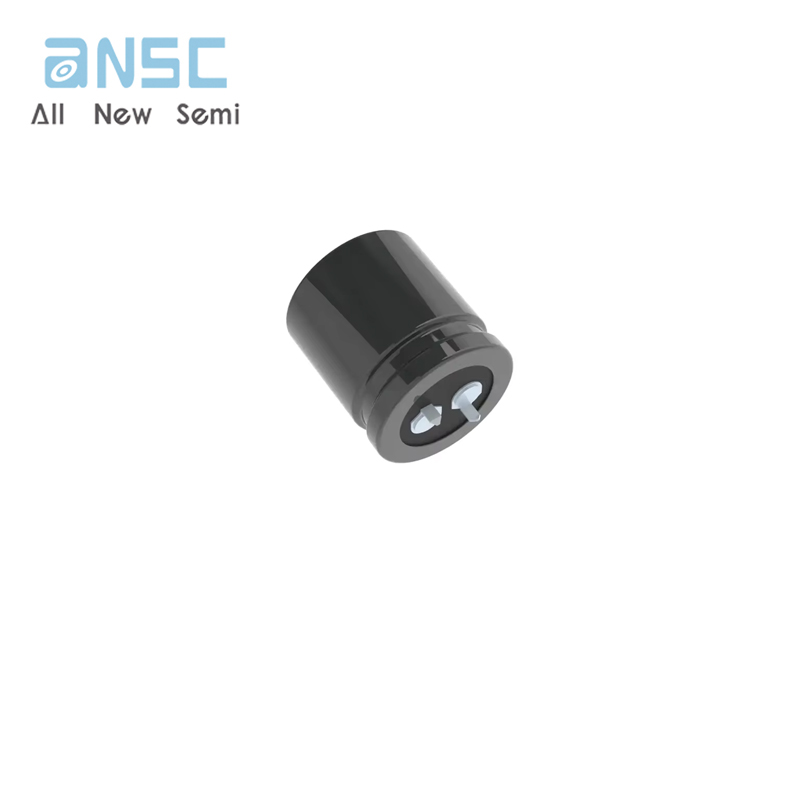

Actual image of the product
