Product Details
|
1. Description The TYS40302R2N-10 is a high-performance, shielded fixed inductor . This component is part of the TYS4030 series and is optimized for surface mount applications. With a robust construction and reliable performance, it is ideal for use in various electronic circuits requiring precise inductive properties. 2. Features High Saturation Current: The TYS40302R2N-10 can handle a maximum DC current of 2.95A, making it suitable for applications requiring high current handling. Low DC Resistance: The maximum DC resistance (DCR) is 39mOhm, ensuring minimal power loss and efficient operation. Frequency Stability: The self-resonant frequency is 10MHz, providing stable inductive performance across a wide range of frequencies. Operating Temperature Range: The inductor operates effectively between -40°C and 125°C, offering flexibility in various environmental conditions. Surface Mount Technology: Designed for surface mount applications with a compact size of 0.157L x 0.157W (4.00mm x 4.00mm), it simplifies PCB design and assembly processes. Shielded Construction: The shielded design helps reduce electromagnetic interference (EMI), ensuring cleaner signal integrity in complex electronic systems. 3. Applications Primary Applications: Filtering Circuits: The TYS40302R2N-10 can be used in filtering circuits due to its high inductance value of 2.2μH and low DCR, which helps in efficient filtering of unwanted frequencies. Power Supplies: Its high saturation current makes it suitable for power supply applications where high current handling is required. Audio Equipment: The inductor's stable performance across frequencies makes it useful in audio equipment designs where signal quality is paramount. Secondary Applications: Switching Regulators: The inductor's ability to handle high currents and its low DCR make it suitable for use in switching regulators. RF Circuits: The shielded construction helps reduce EMI, making it useful in RF circuits where signal integrity is crucial. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - TYS40302R2N-10 |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Original |
| Series | TYS4030 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.95 A |
| Current - Saturation (Isat) | 4.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 39mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature |
-40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |

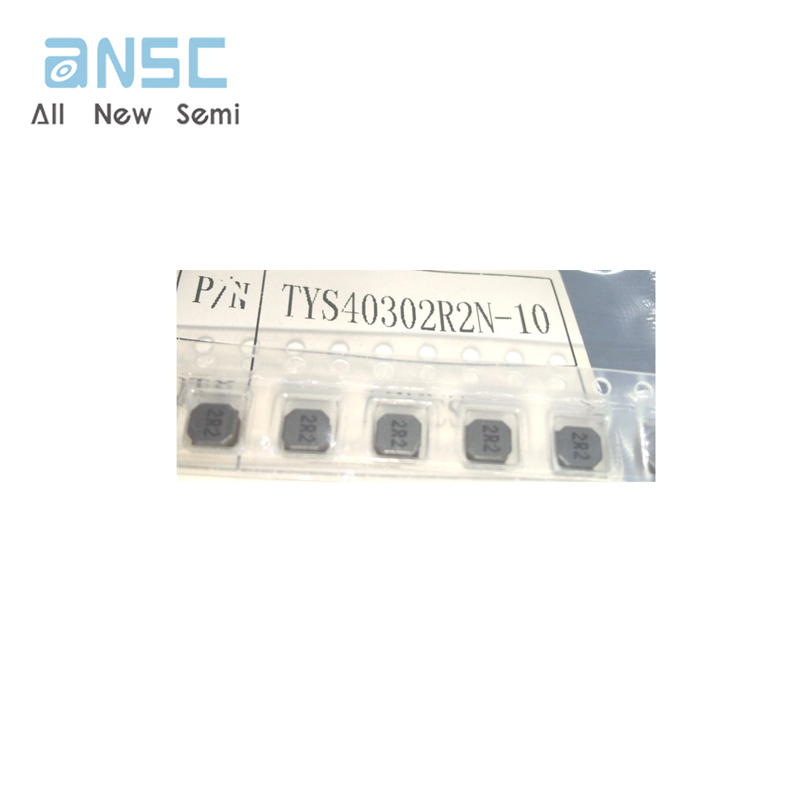

Actual image of the product

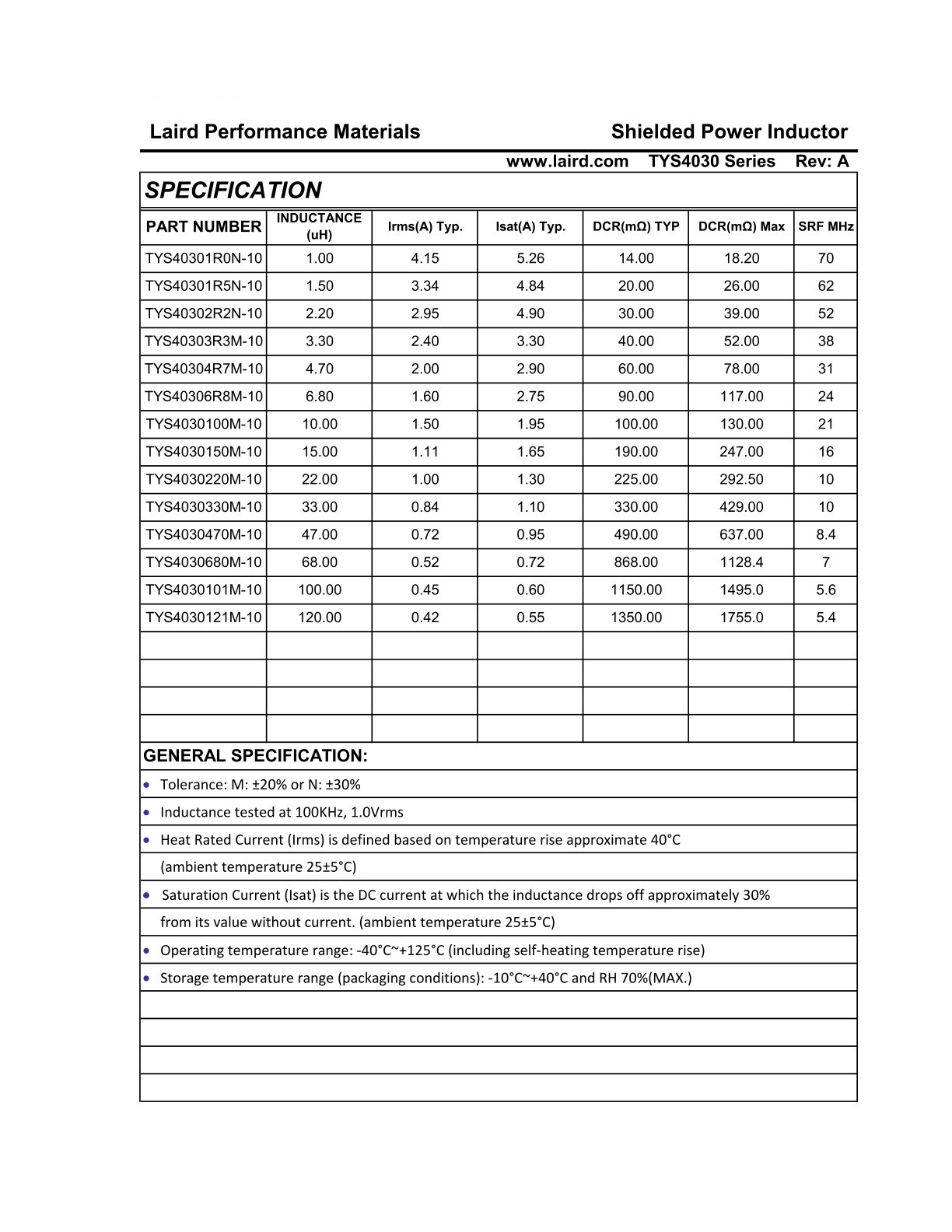

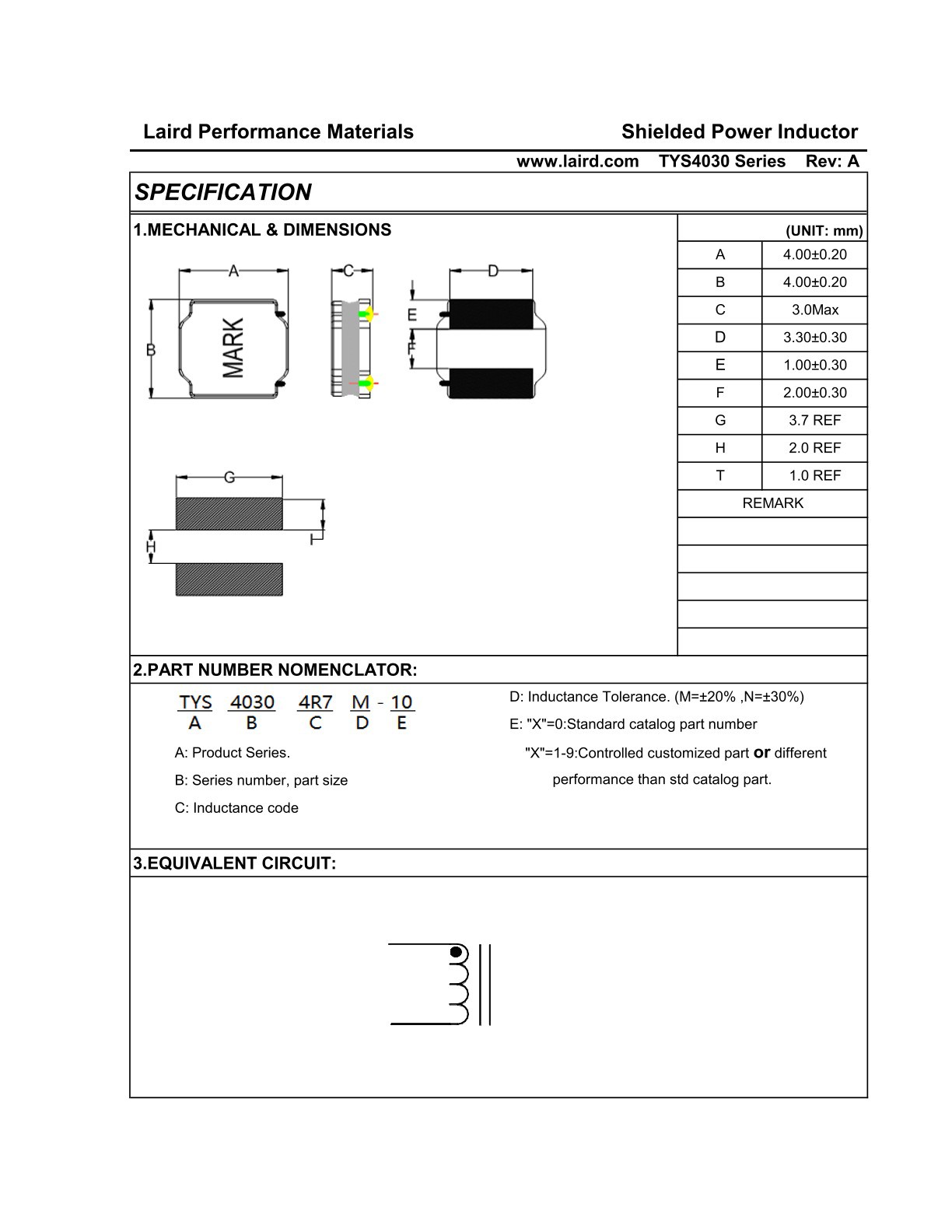

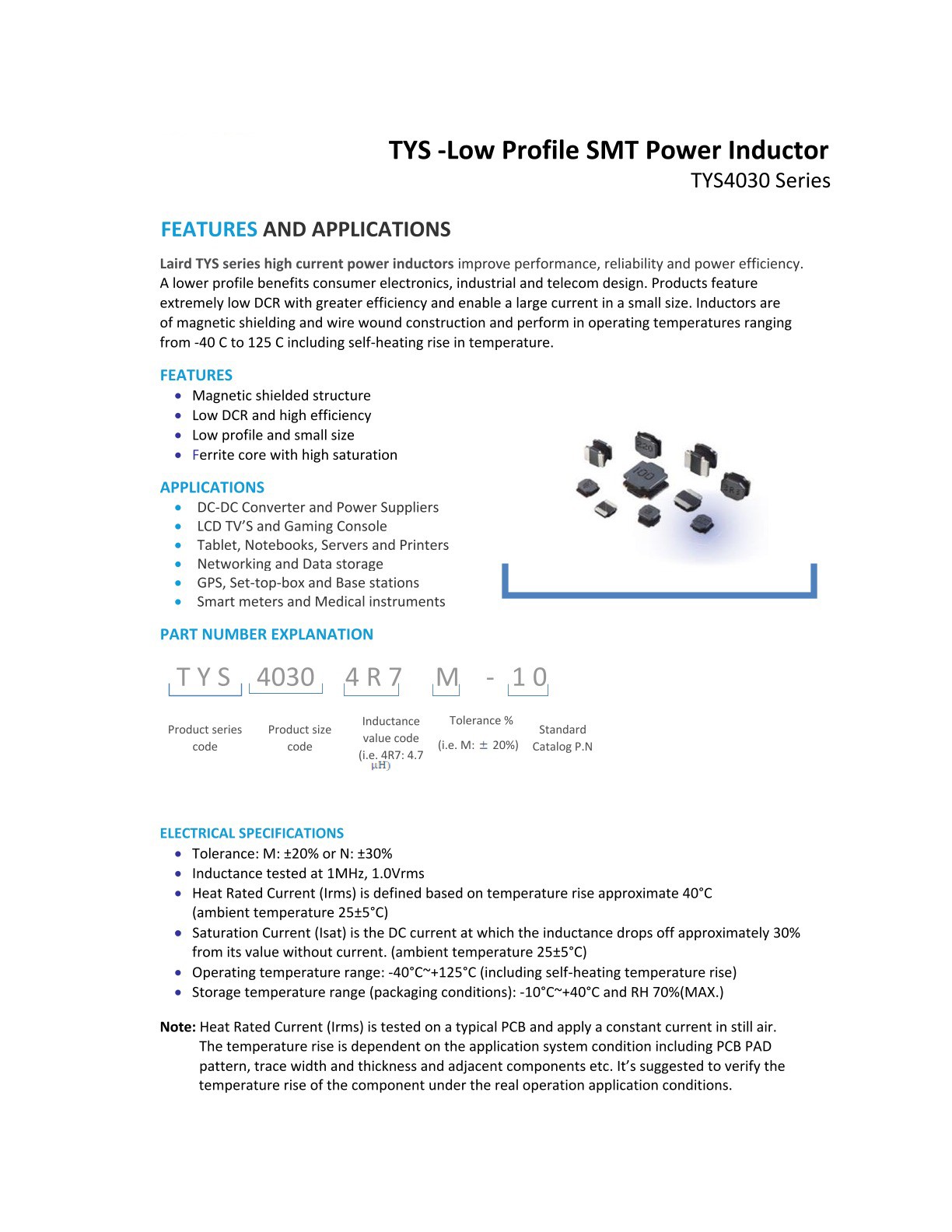

Product datasheet
For more information, please download
