Product Details
Description:
The Chip Resistor - Surface Mount RC0805FR-070RL is a surface mount resistor with a 0 ohm resistance value.
It is a jumper type resistor with a power rating of 1/8W and a size of 0805.
Features:
- 0 ohm resistance value
- Jumper type resistor
- Power rating of 1/8W
- Size of 0805
- Surface mount
Applications:
The Yageo Chip Resistor - Surface Mount RC0805FR-070RL is commonly used in a variety of electronic applications,
such as in circuit boards, power supplies, and other electronic devices. It is also used in automotive, medical,
and industrial applications.
Product Description
| Type | Description |
| PART# | RC0805FR-070RL |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr |
/ |
| Series | RC_L |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Resistance | 0 Ohms |
| Tolerance | Jumper |
| Power (Watts) | - |
| Composition | Thick Film |
| Features | Moisture Resistant |
| Temperature Coefficient | - |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |

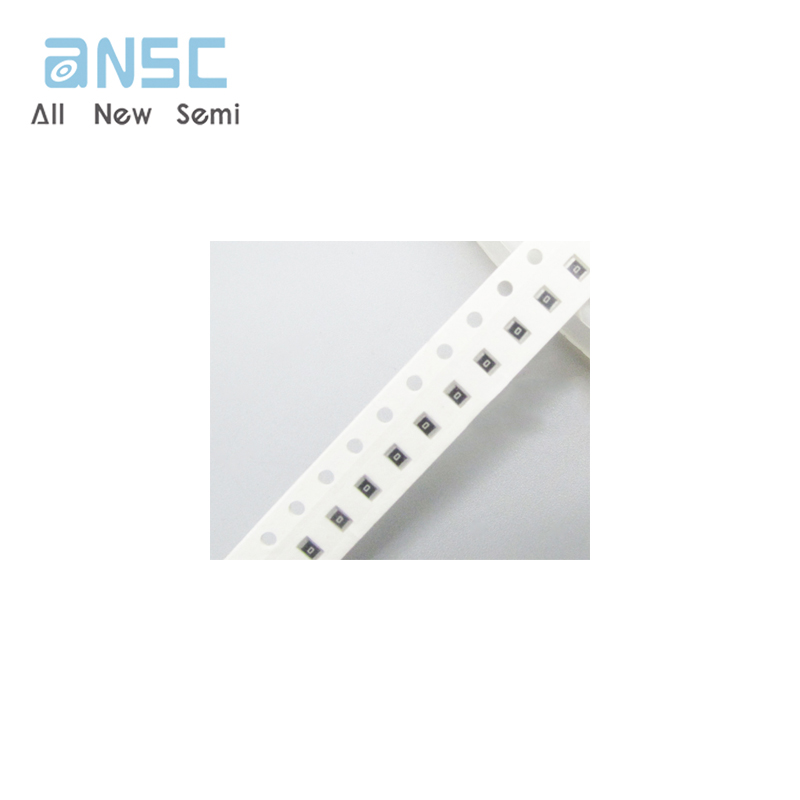

Actual image of the product
