Product Details

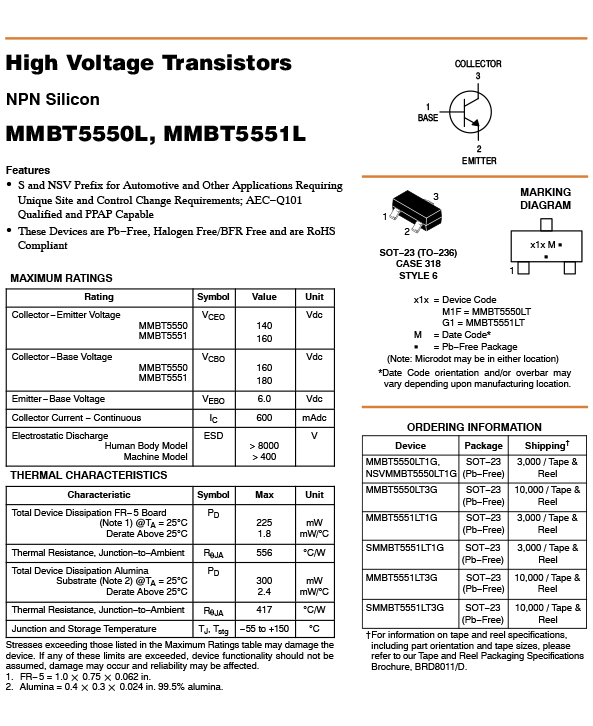

High Voltage Transistors
NPN Silicon
Features
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Product Description
|
Type |
Description |
|---|---|
|
PART# |
MMBT5551LT1G |
|
Category |
Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Transistor Type |
NPN |
|
Current - Collector (Ic) (Max) |
600 mA |
|
Voltage - Collector Emitter Breakdown (Max) |
160 V |
|
Vce Saturation (Max) @ Ib, Ic |
200mV @ 5mA, 50mA |
|
Current - Collector Cutoff (Max) |
100nA |
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
80 @ 10mA, 5V |
|
Power - Max |
225 mW |
|
Frequency - Transition |
- |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Supplier Device Package |
SOT-23-3 (TO-236) |
|
Base Product Number |
MMBT5551 |

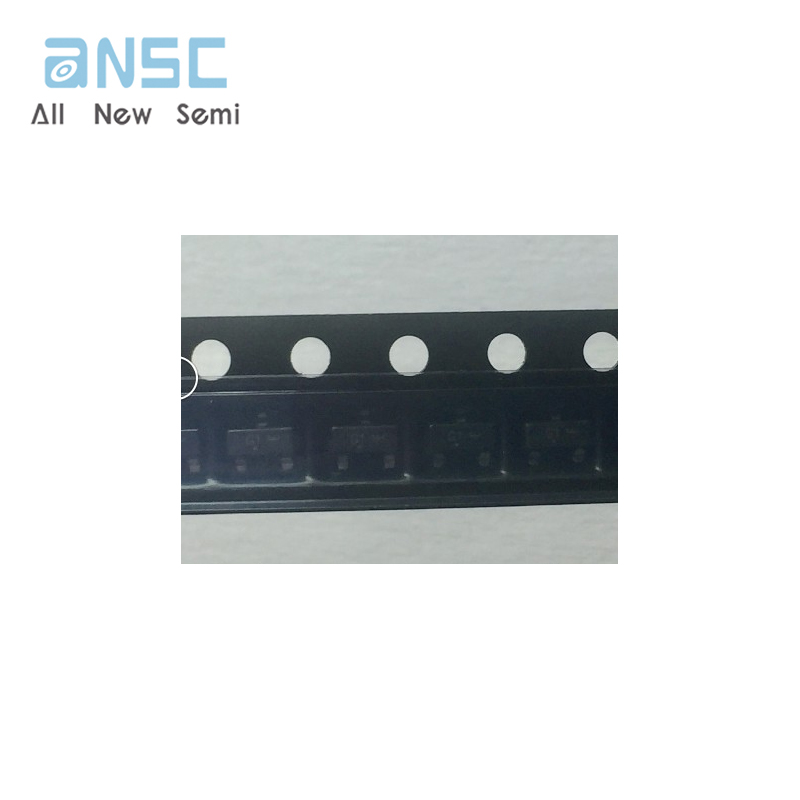

Actual image of the product
