Product Details
Surface Mount Type
Features
Endurance: 2000 to 5000h at105°C
Low impedance (40 to 60% less than FCseries)
Miniaturization(30 to 50% less than FC series)
Vibration-proof product is available upon request.(∮f8≤)
Product Description
| PART# | EEEFK1V100R |
| Package Description | Chip |
| Factory Lead Time | 21 Weeks |
| Capacitance | 10 µF |
| Capacitor Type | Aluminum Electrolytic Capacitor |
| Diameter | 5 Mm |
| Dielectric Material | Aluminum (Wet) |
| Height | 5.8 Mm |
| JESD-609 Code | e6 |
| Leakage Current | 0.0035 Ma |
| Length | 5.3 Mm |
| Mounting Feature | Surface Mount |
| Negative Tolerance | 20% |
| Number of Terminals | 2 |
| Operating Temperature-Max | 105 °C |
| Operating Temperature-Min | -55 °C |
| Package Shape | Cylindrical Package |
| Package Style | Smt |
| Packing Method | Tr, Embossed, 15 Inch |
| Polarity | Polarized |
| Positive Tolerance | 20% |
| Rated (DC) Voltage (URdc) | 35 V |
| Reference Standard | Aec-Q200 |
| Ripple Current | 120 Ma |
| Size Code | 2121 |
| Surface Mount | Yes |
| Tan Delta | 0.12 |
| Terminal Finish | Tin/Bismuth (Sn/Bi) |
| Terminal Shape | Flat |
| Width | 5.3 Mm |

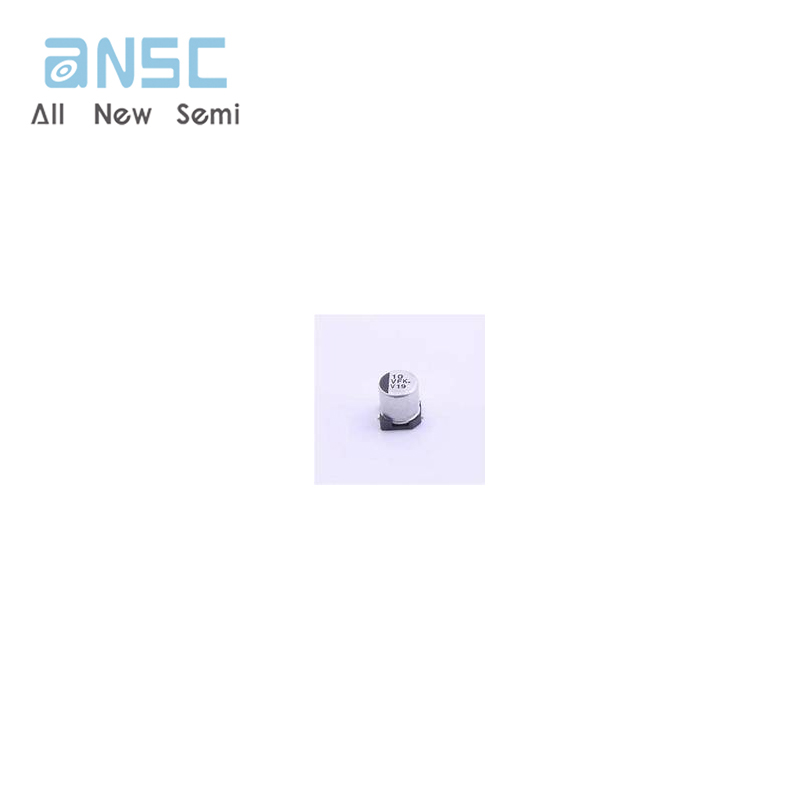

Actual image of the product
