Product Details
|
PolySwitch Resettable Devices Radial-leaded Devices • RoHS compliant • Broadest range of radial-leaded resettable devices available in the industry • Current ratings from 50mA to 15A • Voltage ratings from 6V (computer and electronic applications) to 99V • Agency recognition : UL, CSA, TÜV • Fast time-to-trip • Low resistance Features Benefits • Many product choices give engineers more design flexibility • Compatible with high-volume electronics assembly • Assists in meeting regulatory requirements • Higher voltage ratings allow use in new applications Applications • Satellite video receivers • Industrial controls • Transformers • Computer motherboards • Modems • USB hub, ports and peripherals • IEEE1394 ports • CD-ROMs • Game machines • Battery packs • Phones • Fax machines • Analog and digital line cards • Printers |
Product Description
| Type | Description |
| PART# | RUEF250 |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Manufacturer | Original |
| Series |
PolySwitch®, RUEF |
| Packaging | Bag |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 2.5 A |
| Current - Trip (It) | 5 A |
| Current - Max | 100 A |
| Time to Trip | 10.3 s |
| Resistance - Initial (Ri) (Min) | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 70 mOhms |
| Operating Temperature | - |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.449" L x 0.118" W (11.40mm x 3.00mm) |
| Height - Seated (Max) | 0.720" (18.30mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
| Approval Agency | CQC, CSA, TUV, UL |

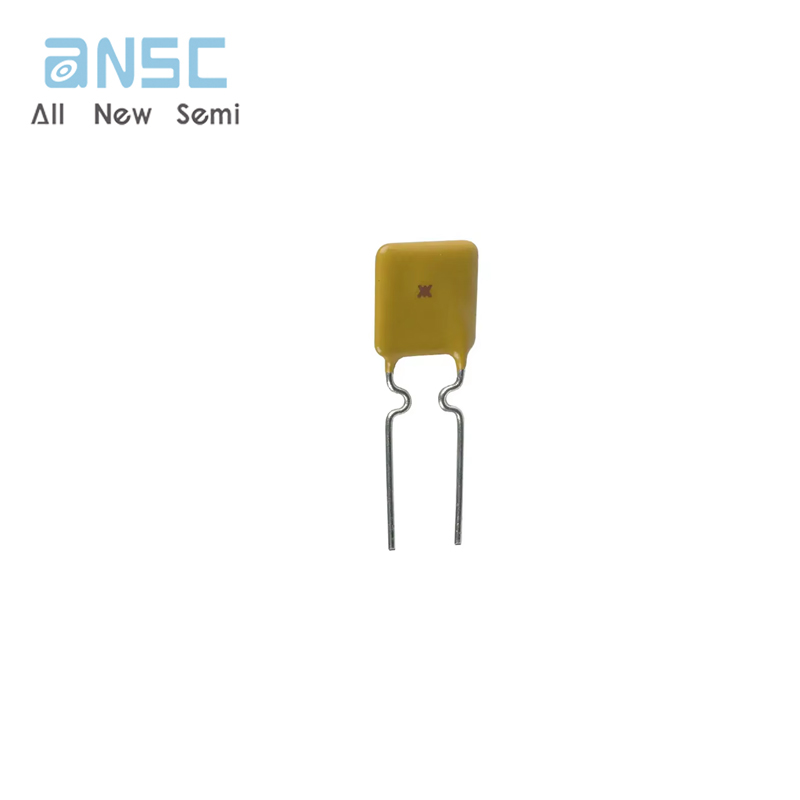

Actual image of the product
