Product Description
The MBRA340T3G is a surface-mount Schottky rectifier diode designed for high-frequency, high-reliability applications. This diode features a fast recovery time of less than 500ns and a maximum forward voltage drop of 450mV at an operating current of 3A. The MBRA340T3G is suitable for use in power supplies, DC-DC converters, and other high-frequency power conversion applications.
Product Features
· Schottky Diode: The MBRA340T3G is a Schottky diode, which offers a low forward voltage drop and fast recovery time, making it ideal for high-frequency applications.
· High Current Rating: The diode has a maximum forward current rating of 3A, making it suitable for use in high-power applications.
· Low Reverse Leakage Current: The diode has a low reverse leakage current of 300μA at 40V, reducing power consumption and heat generation.
· Halogen-Free and Lead-Free: The MBRA340T3G is manufactured using halogen-free and lead-free materials, making it an environmentally friendly option.
· Surface Mount Package: The diode is available in a surface-mount package, DO-214AC, which is easy to handle and mount.
Product Applications
· Primary Applications: Power supplies, DC-DC converters, and other high-frequency power conversion applications.
· Secondary Applications: Audio equipment, telecommunications equipment, and other applications requiring high-frequency switching.
Product Description
| Type# | Description |
| ANSC PART# | ANSC- MBRA340T3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr |
/ |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 300 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Operating Temperature - Junction |
-55°C ~ 150°C |
| Base Product Number | MBRA340 |

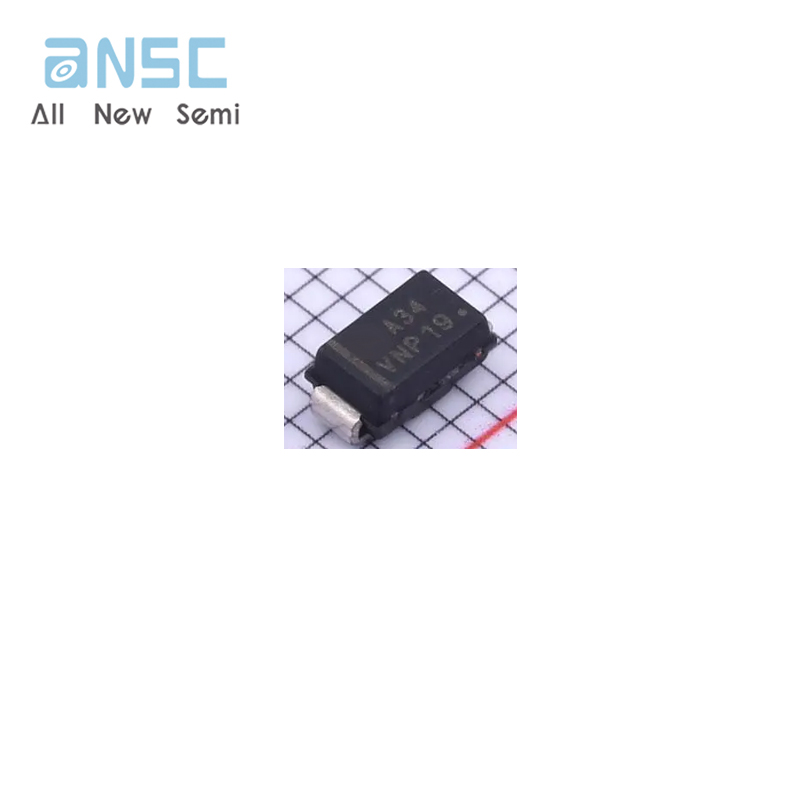

Actual image of the product

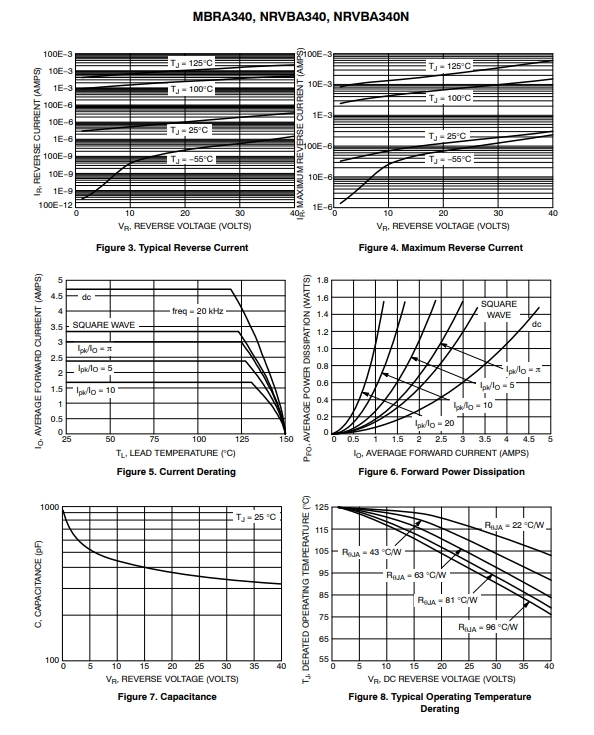

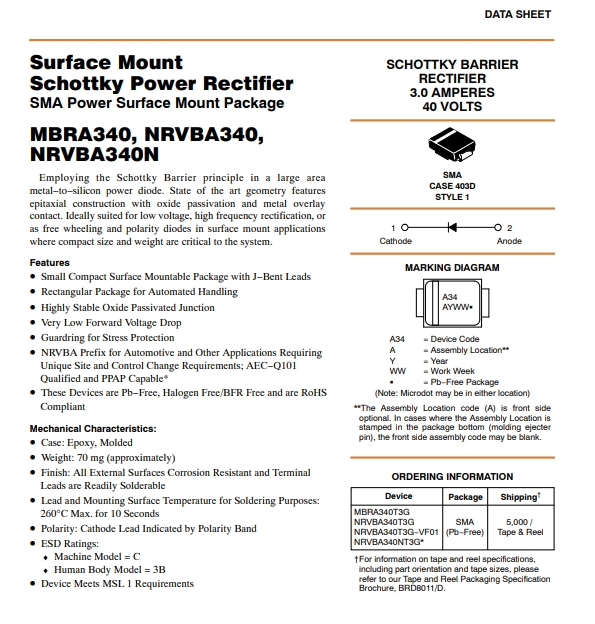

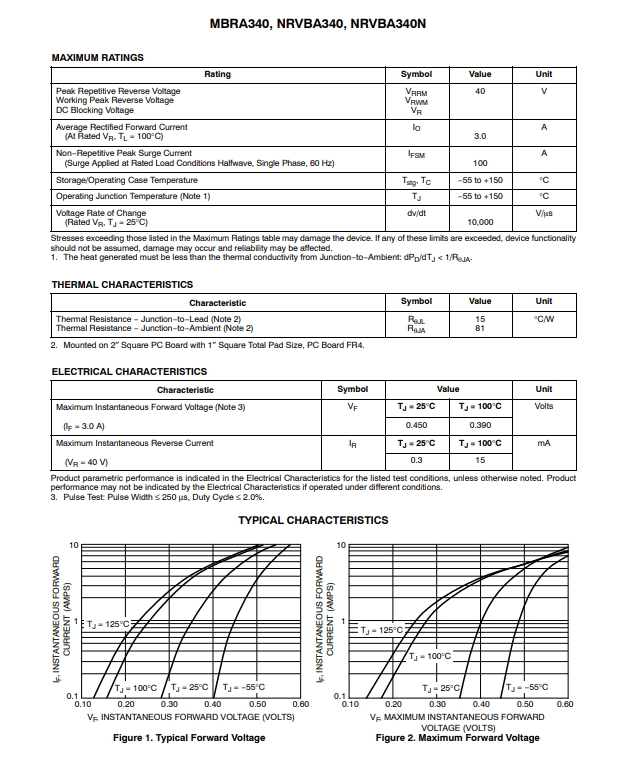

Product datasheet
For more information, please download
