Product Details
EEE-FK1H151P Description
Aluminum Electrolytic Capacitors - SMD 150uF 50V
EEE-FK1H151P Features
● Endurance: 2000 h to 5000 h at 105 °C
● Low impedance (40 % to 60 % less than FC series)
● Miniaturized (30 % to 50 % less than FC series)
● Vibration-proof product is available upon request. (ø8 mm and larger)
● AEC-Q200 qualified✽
● RoHS directive compliant
Product Description
|
Type |
Description |
|---|---|
| PART# | EEE-FK1H151P |
|
Category |
Capacitors Aluminum Electrolytic Capacitors |
|
Mfr |
/ |
|
Series |
FK |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Capacitance |
150 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
50 V |
|
ESR (Equivalent Series Resistance) |
- |
|
Lifetime @ Temp. |
2000 Hrs @ 105°C |
|
Operating Temperature |
-55°C ~ 105°C |
|
Polarization |
Polar |
|
Ratings |
AEC-Q200 |
|
Applications |
Automotive |
|
Ripple Current @ Low Frequency |
502.5 mA @ 120 Hz |
|
Ripple Current @ High Frequency |
670 mA @ 100 kHz |
|
Impedance |
180 mOhms |
|
Lead Spacing |
- |
|
Size / Dimension |
0.394" Dia (10.00mm) |
|
Height - Seated (Max) |
0.413" (10.50mm) |
|
Surface Mount Land Size |
0.406" L x 0.406" W (10.30mm x 10.30mm) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Radial, Can - SMD |
|
Base Product Number |
EEE-FK |

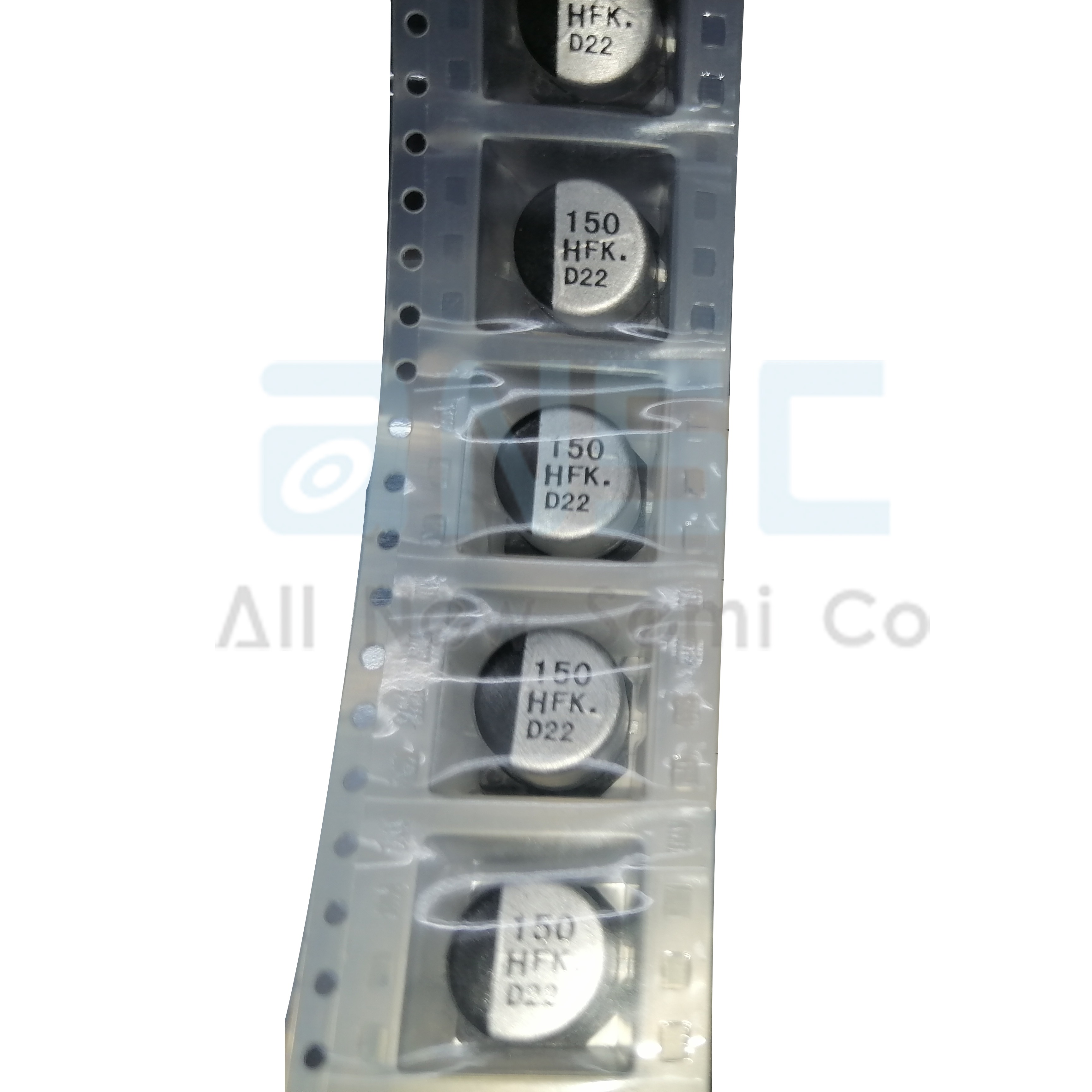

Actual image of the product
