Product Details
Surface Mount Type
Features
Endurance: 2000 to 5000h at105°C
Low impedance (40 to 60 less than FCseries)
Miniaturization(30 to 50 less than FC series)
Vibration-proof product is available upon request.(∮f8≤)
Product Description
| Type# | Description |
| PART# | EEEFK1V100UR |
| Ihs Manufacturer | Original |
| Package Description | CHIP |
| Reach Compliance Code | compliant |
| ECCN Code | EAR99 |
| HTS Code | 8532.24.0020 |
| Factory Lead Time | 28 Weeks, 1 Day |
| Samacsys Manufacturer |
/ |
| Capacitance | 10 µF |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR |
| Diameter | 4 mm |
| Dielectric Material | ALUMINUM (WET) |
| Height | 5.8 mm |
| Leakage Current | 0.0035 mA |
| Length | 4.3 mm |
| Mounting Feature | SURFACE MOUNT |
| Negative Tolerance | 20% |
| Number of Terminals | 2 |
| Operating Temperature-Max | 105 °C |
| Operating Temperature-Min |
-55 °C |
| Package Shape | CYLINDRICAL PACKAGE |
| Package Style | SMT |
| Packing Method | TR, EMBOSSED, 15 INCH |
| Polarity | POLARIZED |
| Positive Tolerance | 20% |
| Rated (DC) Voltage (URdc) | 35 V |
| Reference Standard | AEC-Q200 |
| Ripple Current | 67.5 mA |
| Size Code | 1717 |
| Surface Mount | YES |
| Tan Delta | 0.12 |
| Terminal Shape | FLAT |
| Width | 4.3 mm |

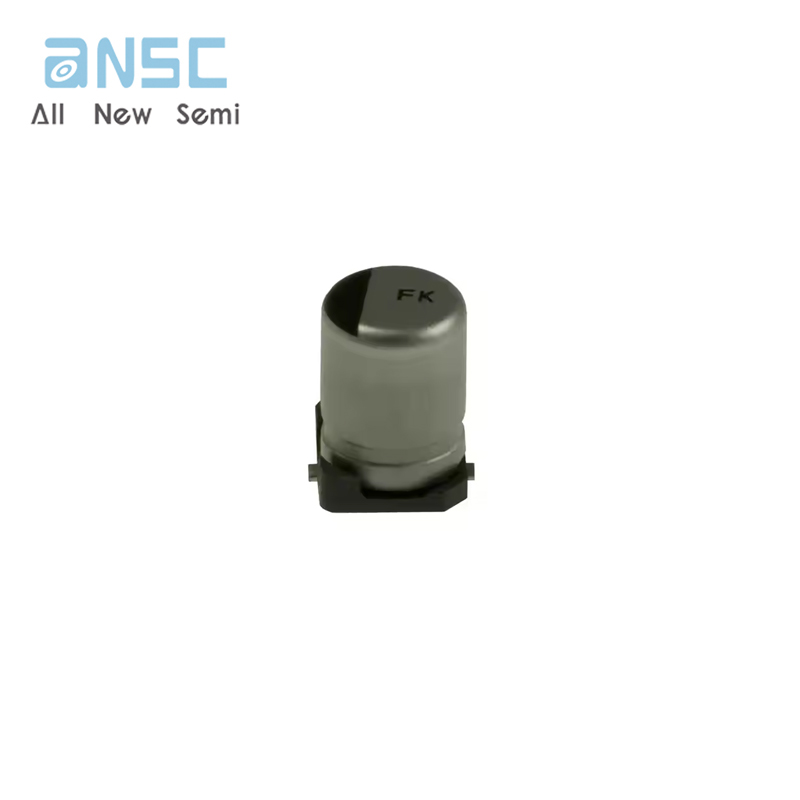

Actual image of the product
