Product Description
| PART# | GRM188F51A105ZA01D |
| Package Description | Chip |
| Capacitance | 1 µF |
| Capacitor Type | Ceramic Capacitor |
| Dielectric Material | Ceramic |
| Height | 0.8 Mm |
| JESD-609 Code | e3 |
| Length | 1.6 Mm |
| Mounting Feature | Surface Mount |
| Multilayer | Yes |
| Negative Tolerance | 20% |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -30 °C |
| Package Shape | Rectangular Package |
| Package Style | Smt |
| Packing Method | Tr, Paper, 7 Inch |
| Positive Tolerance | 80% |
| Rated (DC) Voltage (URdc) | 10 V |
| Size Code | 603 |
| Surface Mount | Yes |
| Temperature Characteristics Code | Y5V |
| Temperature Coefficient | -82/+22% Ppm/°C |
| Terminal Finish | Matte Tin (Sn) - With Nickel (Ni) Barrier |
| Terminal Shape | Wraparound |
| Width | 0.8 Mm |

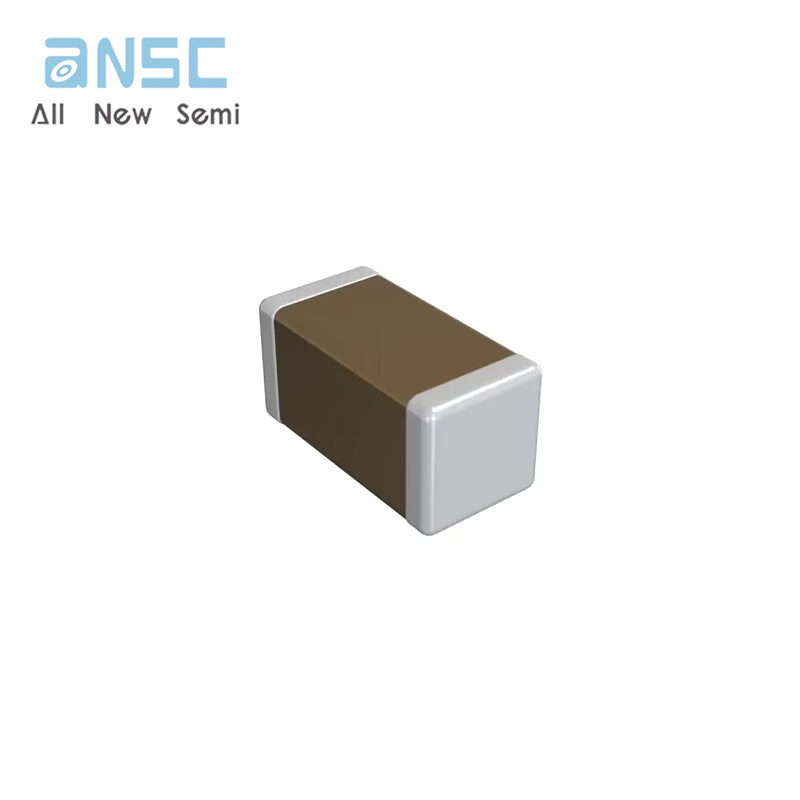

Actual image of the product
