Product Details
|
Inductors for Decoupling Circuits Multilayer Ferrite FEATURES ● The MLZ Series include inductors for decoupling circuits that have top-class DC superimposition characteristics and low DC resistance. ● Sizes range from 1005 to 2012, and they are compatible with wide frequency band noise, from low to high frequency. ● H type products have a rated current that is equivalent to that of wound coils. ● W type products are the new standard type products that have both large current and low resistance. ● L type products have a resistance up to 60% lower than W type products. APPLICATION Smart phones, tablet terminals, laptop computers, various modules such as camera modules, DSCs, video games, portable memory audio devices, navigation systems, PNDs, WLANs, SSDs, automotive equipment (MLZ1608, MLZ2012) |
Product Description
| Type | Description |
| Part# | MLZ2012M330WTD25 |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Original |
| Series | MLZ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 190 mA |
| Current - Saturation (Isat) | 55mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.6Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature |
-55°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |

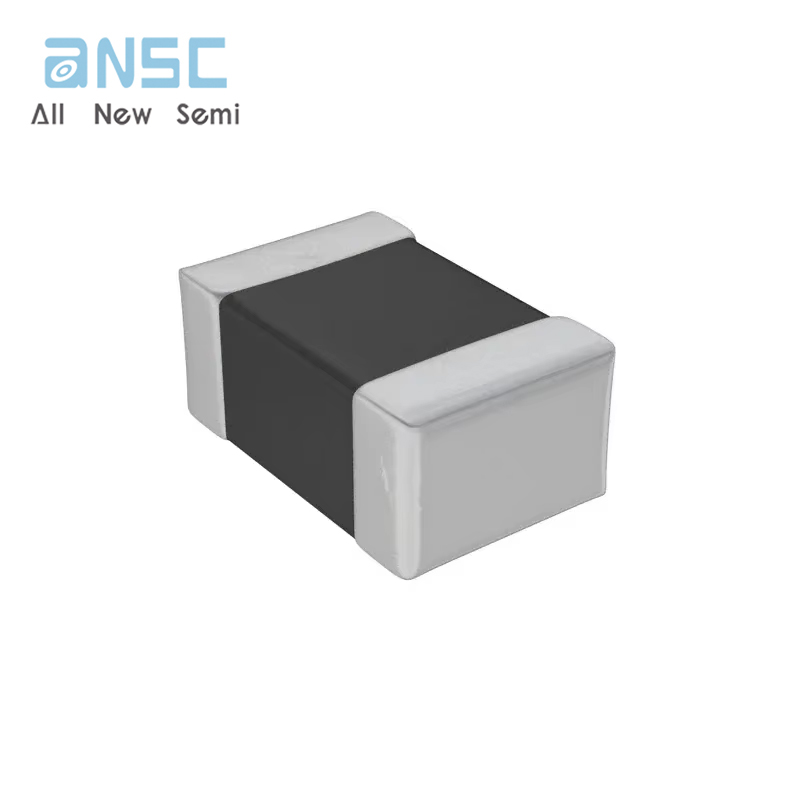

Actual image of the product
