Product Details
|
1. Description The RC1206FR-071K02L is a high-reliability, surface-mount chip resistor designed . This resistor is part of the RC series and features a thick film construction with a rectangular shape, making it suitable for various electronic applications. It has a termination type of SMD/SMT, ensuring easy integration into modern PCBs. The resistor is lead-free and compliant with ROHS3 standards, ensuring environmental sustainability. 2. Features Moisture Resistant: Designed to withstand moisture, making it ideal for applications where humidity is a concern. High Power Dissipation: With a maximum power dissipation of 250mW, this resistor can handle moderate to high current applications. Wide Operating Temperature Range: Operates between -55°C and 155°C, providing flexibility in temperature-sensitive environments. Low Tolerance: ±1% tolerance ensures precise resistance values in critical applications. Lead-Free and RoHS3 Compliant: Meets stringent environmental regulations, making it suitable for green electronics projects. 3. Applications Primary Applications: Automotive Electronics: Used in automotive systems due to its high reliability and wide operating temperature range. Industrial Control Systems: Integrated into industrial control systems where precision and durability are crucial. Medical Devices: Utilized in medical devices requiring high reliability and resistance to moisture. Secondary Applications: Consumer Electronics: Used in consumer electronics such as smartphones, tablets, and gaming consoles. Aerospace and Defense: Although not radiation hardened, it can be used in non-critical aerospace applications where its other features are beneficial. |
Product Description
| Type | Description |
| Part# | RC1206FR-071K02L |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Original |
| Series | RC_L |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Resistance | 1.02 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thick Film |
| Features | Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature |
-55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |

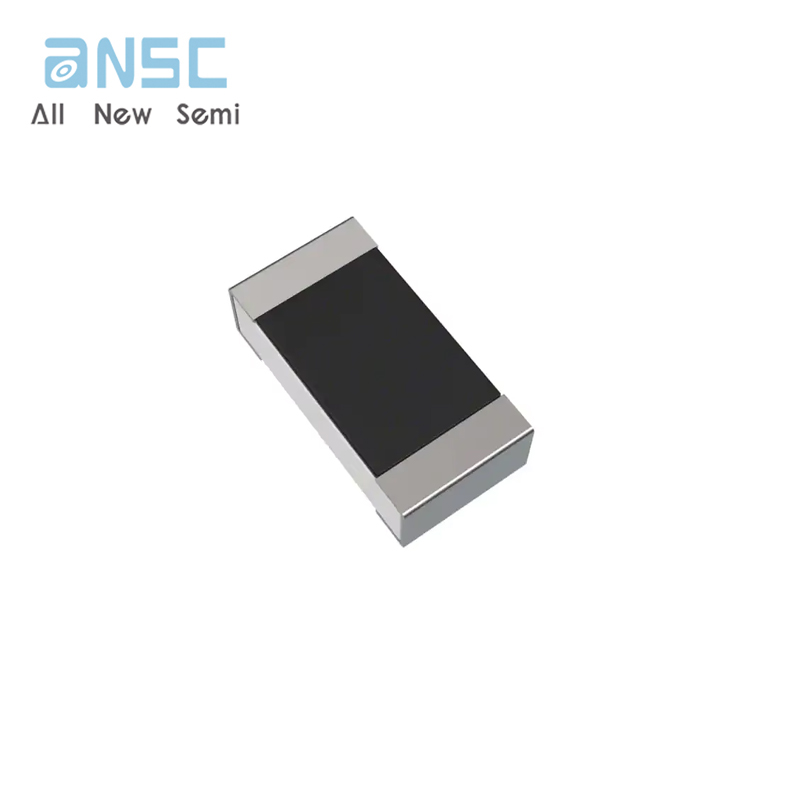

Actual image of the product
