Product Details
PRODUCT DESCRIPTION
KEMET’s family of solid tantalum chip capacitors is designed and manufactured with the demanding requirements of surface mount technology in mind.
These devices extend the advantages of solid tantalum technology to today’s surface mount circuit applications. Complementing multilayer ceramic chip convenience with capacitance ratings through 1500 µF, tantalum chip capacitors permit circuitdesigners to take full advantage of the benefits of surface mount technology.
CAPACITORS
T491 SERIES - Precision Molded Chip
FEATURES
• Meets or Exceeds EIA Standard 535BAAC
• Taped and Reeled per EIA 481-1
• Symmetrical, Compliant Terminations
• Optional Gold-plated Terminations
• Laser-marked Case
• 100% Surge current test on C, D, E, U, V, X sizes
• Halogen Free Epoxy
• Capacitance: 0.1 μF to 1000 μF
• Tolerance: ±10%, ±20%
• Voltage: 2.5-50 VDC
• Extended Range Values
• Low Profile Case Sizes
• RoHS Compliance & Lead Free Terminations
• Operating Temperature: -55˚C to +125˚C
Product Description
Type | Description |
|---|---|
Category | Capacitors Tantalum Capacitors |
Mfr | KEMET |
Series | T491 |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Capacitance | 22 µF |
Tolerance | ±20% |
Voltage - Rated | 10 V |
Type | Molded |
ESR (Equivalent Series Resistance) | 3.2Ohm |
Operating Temperature | -55°C ~ 125°C |
Lifetime @ Temp. | 2000 Hrs @ 125°C |
Mounting Type | Surface Mount |
Package / Case | 1206 (3216 Metric) |
Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
Height - Seated (Max) | 0.071" (1.80mm) |
Lead Spacing | - |
Manufacturer Size Code | A |
Features | General Purpose |
Failure Rate | - |
Base Product Number | T491A |

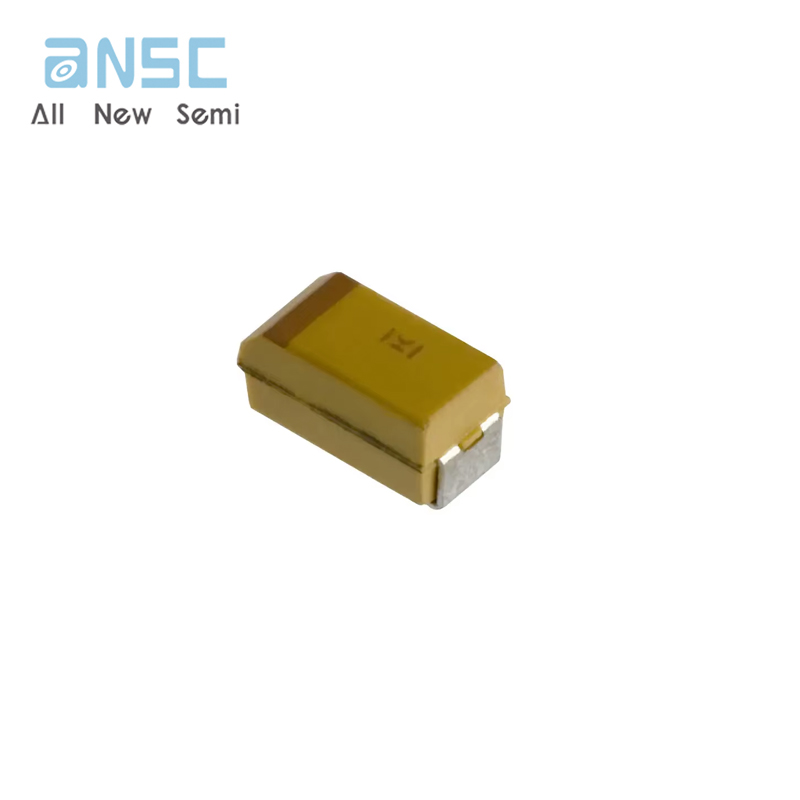

Product Photos
Product datasheet
For more information, please download
