Product Details
Overview
The low ESR, surge-robust T495 is designed for demanding applications that require high surge current and high ripple current capability. The T495 builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents.
Benefts
• Meets or exceeds EIA Standard 535BAAC
• Taped and reeled per EIA 481
• High surge current capability
• Optional gold-plated terminations
• High ripple current capability
• 100% surge current test on B, C, D, E, U, V, and X sizes
• 100% steady-state accelerated aging
• Capacitance values of 0.1 to 1,000 μF
• Tolerances of ±10% and ±20%
• Voltage rating of 2.5 – 50 VDC
• Extended range values
• RoHS compliant and lead-free terminations
• Operating temperature range of −55°C to +125°C
Applications
Typical applications include decoupling and fltering in automotive end applications, such as DC/DC converters, portable electronics, telecommunications, and control units requiring high ripple current capability.
Product Description
|
Type |
Description |
|---|---|
|
PART# |
T495X337M010ATE100 |
|
Category |
Capacitors Tantalum Capacitors |
|
Mfr |
/ |
|
Series |
T495 |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Capacitance |
330 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
10 V |
|
Type |
Molded |
|
ESR (Equivalent Series Resistance) |
100mOhm |
|
Operating Temperature |
-55°C ~ 125°C |
|
Lifetime @ Temp. |
2000 Hrs @ 85°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
2917 (7343 Metric) |
|
Size / Dimension |
0.287" L x 0.169" W (7.30mm x 4.30mm) |
|
Height - Seated (Max) |
0.169" (4.30mm) |
|
Lead Spacing |
- |
|
Manufacturer Size Code |
X |
|
Features |
General Purpose |
|
Failure Rate |
- |
|
Base Product Number |
T495X |

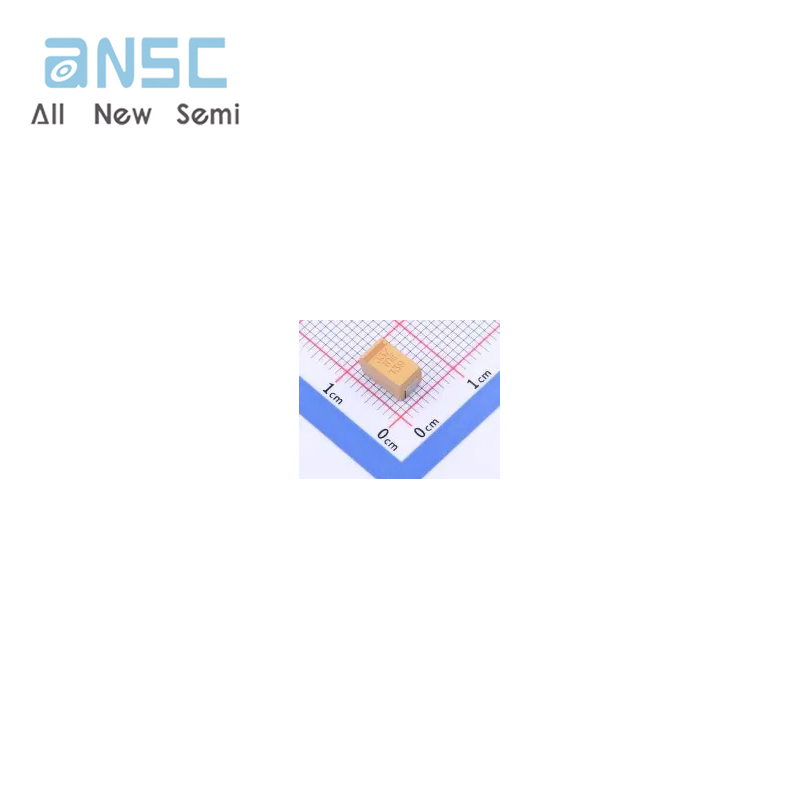

Actual image of the product
