Product Overview
There is a ripple current of 514μA set on the capacitor.As a result of the loss of useful energy in a simple circuit with a resistor and an ideal (perfect) capacitor, equivalent series resistance (ESR) is known as internal resistance.Currently, this capacitor is leakage current 33μA.A capacitor's dissipation factor determines how much power is lost when AC is applied through it, and its dissipation factor is 8 %.The Tan Delta is a dielectric test on the insulating oil to determine its quality, and it is 0.08.
Product Features
514μA is the ripple current of the capacitor
a leakage current of 33μA in this capacitor
the dissipation factor is 8 %
its tan delta is 0.08
Product Applications
TPSE337M010R0100 applications of tantalum capacitors.
-
Computer
-
General purpose
-
General low power DC/DC and LDO
-
Automotive ECU
-
ABS
-
Airbag systems
-
Avionics,
-
Industrial control units
-
Military / aerospace
-
General purpose
Product Description
| Type# | Description |
| PART# | TPSE337M010R0100 |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr |
/ |
| Series | TPS |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| - | |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 100mOhm |
| Operating Temperature |
-55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Lead Spacing | - |
| Manufacturer Size Code | E |
| Features | General Purpose |
| Failure Rate | - |

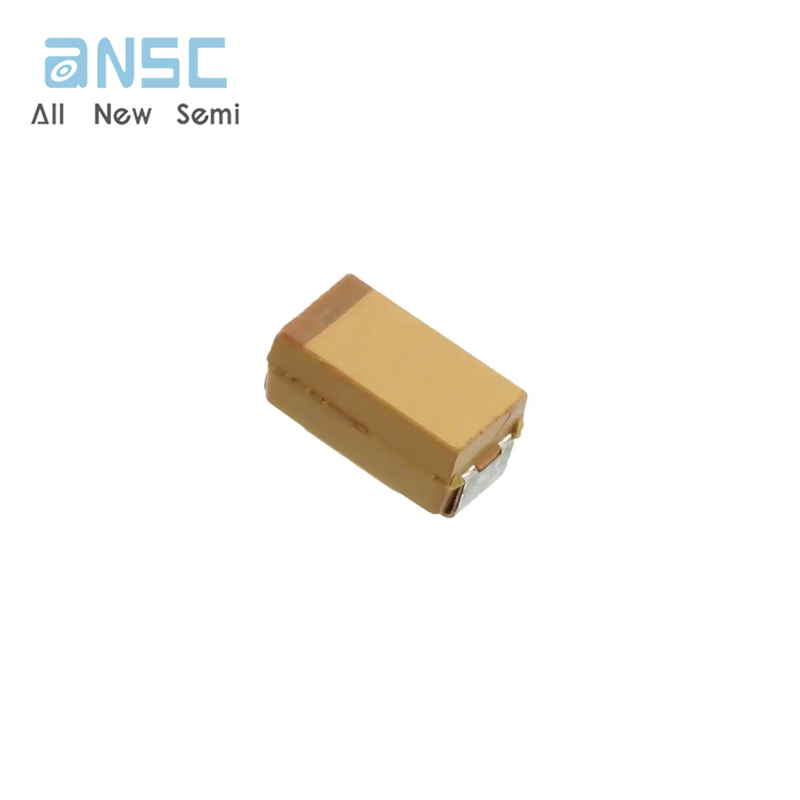

Actual image of the product
