Product Details
TNPW e3 precision thin film flat chip resistors are the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. Typical applications include test and measuring equipment, medical equipment, industrial, and automotive.
FEATURES
• Superior moisture resistivity (85 °C; 85 % RH)
• Excellent overall stability at different environmental conditions ≤ 0.05 % (1000 h rated power at 70 °C)
• AEC-Q200 qualified (sizes 0402 to 1206)
• Single lot date code (optional)
• Sulfur resistance verified according to ASTM B 809
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS
• Test and measuring equipment
• Medical equipment
• Industrial equipment
• Automotive
Product Description
|
Type |
Description |
|---|---|
|
Category |
Resistors Chip Resistor - Surface Mount |
|
Mfr |
/ |
|
Series |
TNPW e3 |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Resistance |
20 kOhms |
|
Tolerance |
±0.1% |
|
Power (Watts) |
0.21W |
|
Composition |
Thin Film |
|
Features |
Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
|
Temperature Coefficient |
±25ppm/°C |
|
Operating Temperature |
-55°C ~ 175°C |
|
Package / Case |
0603 (1608 Metric) |
|
Supplier Device Package |
0603 |
|
Ratings |
AEC-Q200 |
|
Size / Dimension |
0.061" L x 0.033" W (1.55mm x 0.85mm) |
|
Height - Seated (Max) |
0.022" (0.55mm) |
|
Number of Terminations |
2 |
|
Failure Rate |
- |
|
Base Product Number |
TNPW0603 |

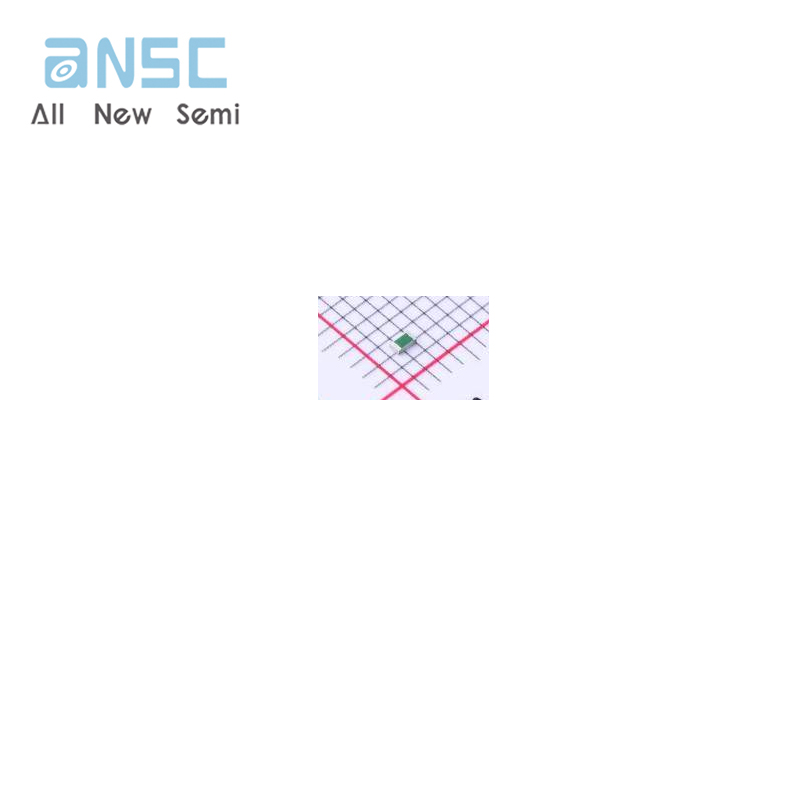

Actual image of the product
