Product Details
Chip Resistors
Resistors:
• CR Model offers 1 % and 5 % tolerance for values from 1 ohm to 10M ohms
• CRH Model offers 1 % tolerance for values from 1.02M ohms to 10M ohms
• CRL Model offers 1 % and 5 % tolerance for values from .010 ohms to 9.1 ohms
• CRP Model offers 0.1 % tolerance for values from 100 ohms to 360K ohms
Applications:
Bourns offers seven sizes of Chip Resistors for most market requirements.
Product Description
|
Type |
Description |
|---|---|
|
Category |
Resistors Chip Resistor - Surface Mount |
|
Mfr |
/ |
|
Series |
CR0603 |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Resistance |
82 kOhms |
|
Tolerance |
±5% |
|
Power (Watts) |
0.1W, 1/10W |
|
Composition |
Thick Film |
|
Features |
Moisture Resistant |
|
Temperature Coefficient |
±200ppm/°C |
|
Operating Temperature |
-55°C ~ 155°C |
|
Package / Case |
0603 (1608 Metric) |
|
Supplier Device Package |
0603 |
|
Size / Dimension |
0.063" L x 0.031" W (1.60mm x 0.80mm) |
|
Height - Seated (Max) |
0.022" (0.55mm) |
|
Number of Terminations |
2 |
|
Failure Rate |
- |
|
Base Product Number |
CR0603 |

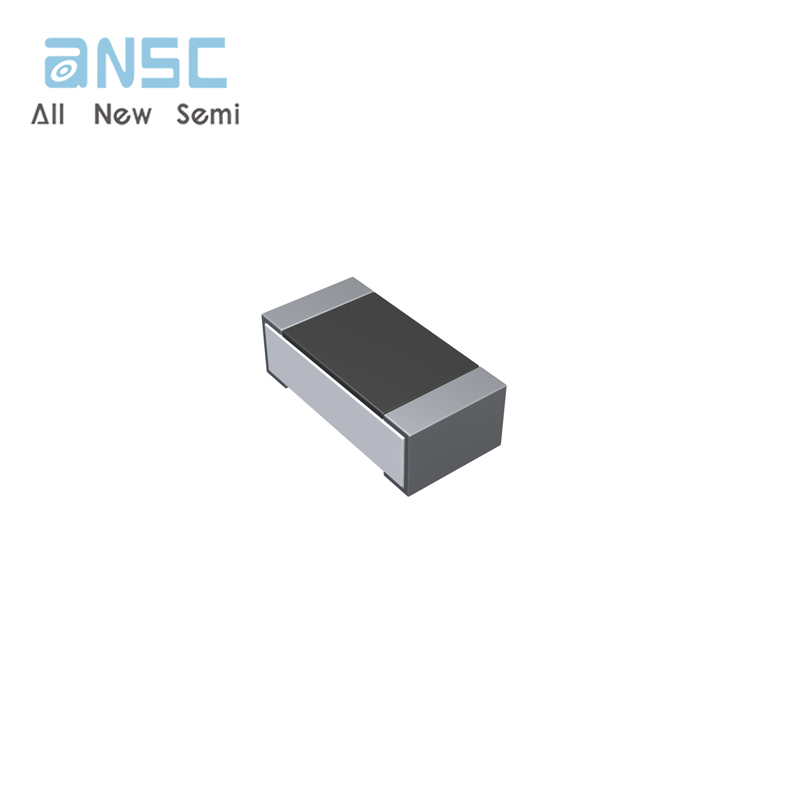

Actual image of the product
