Product Details

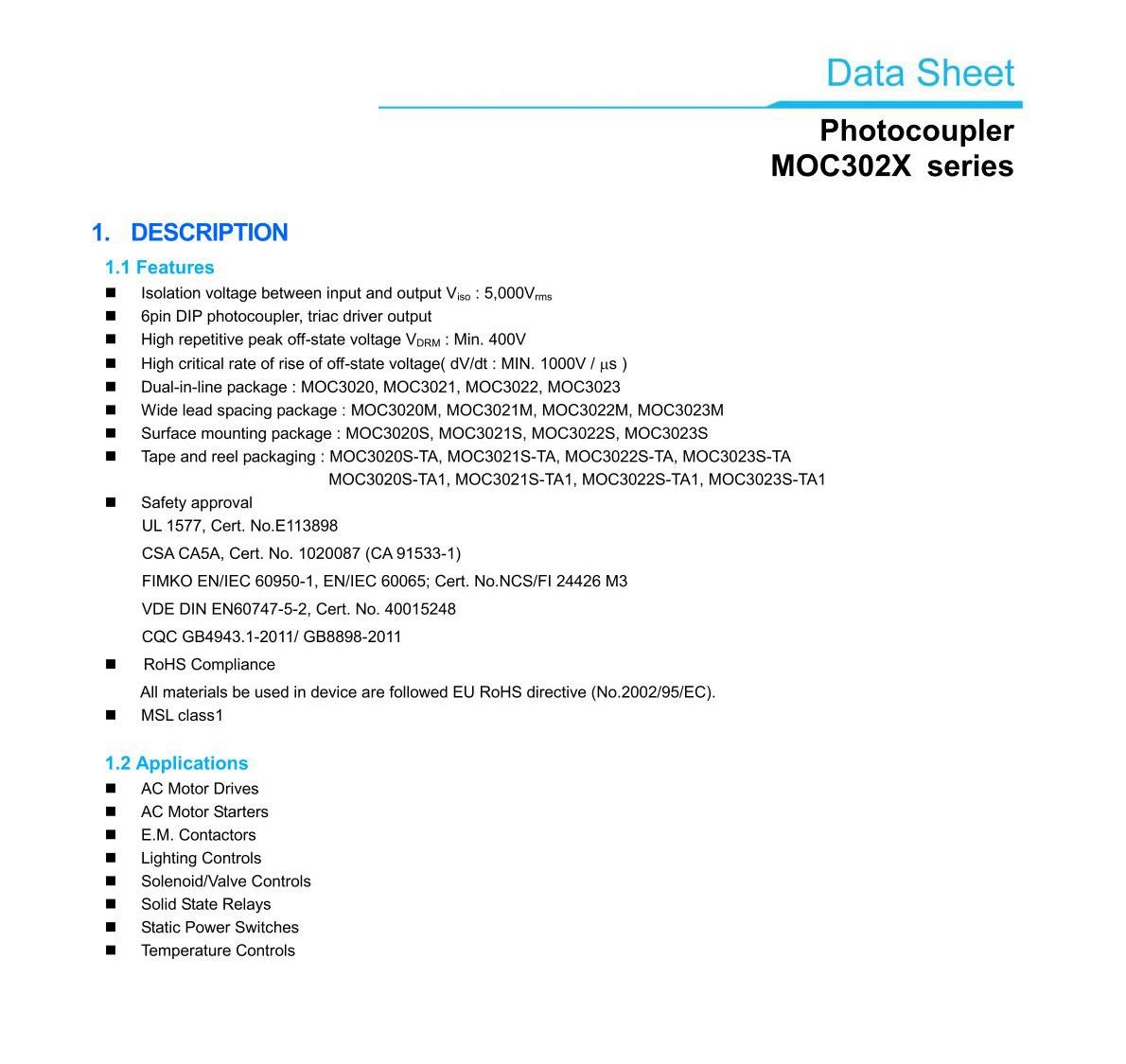

FEATURES
* Isolation voltage between input and output Viso : 5,000Vrms January 2010
* 6pin DIP photocoupler, triac driver output
* High repetitive peak off-state voltage VDRM : Min. 400V
* High critical rate of rise of off-state voltage
( dV/dt : MIN. 100V / µs )

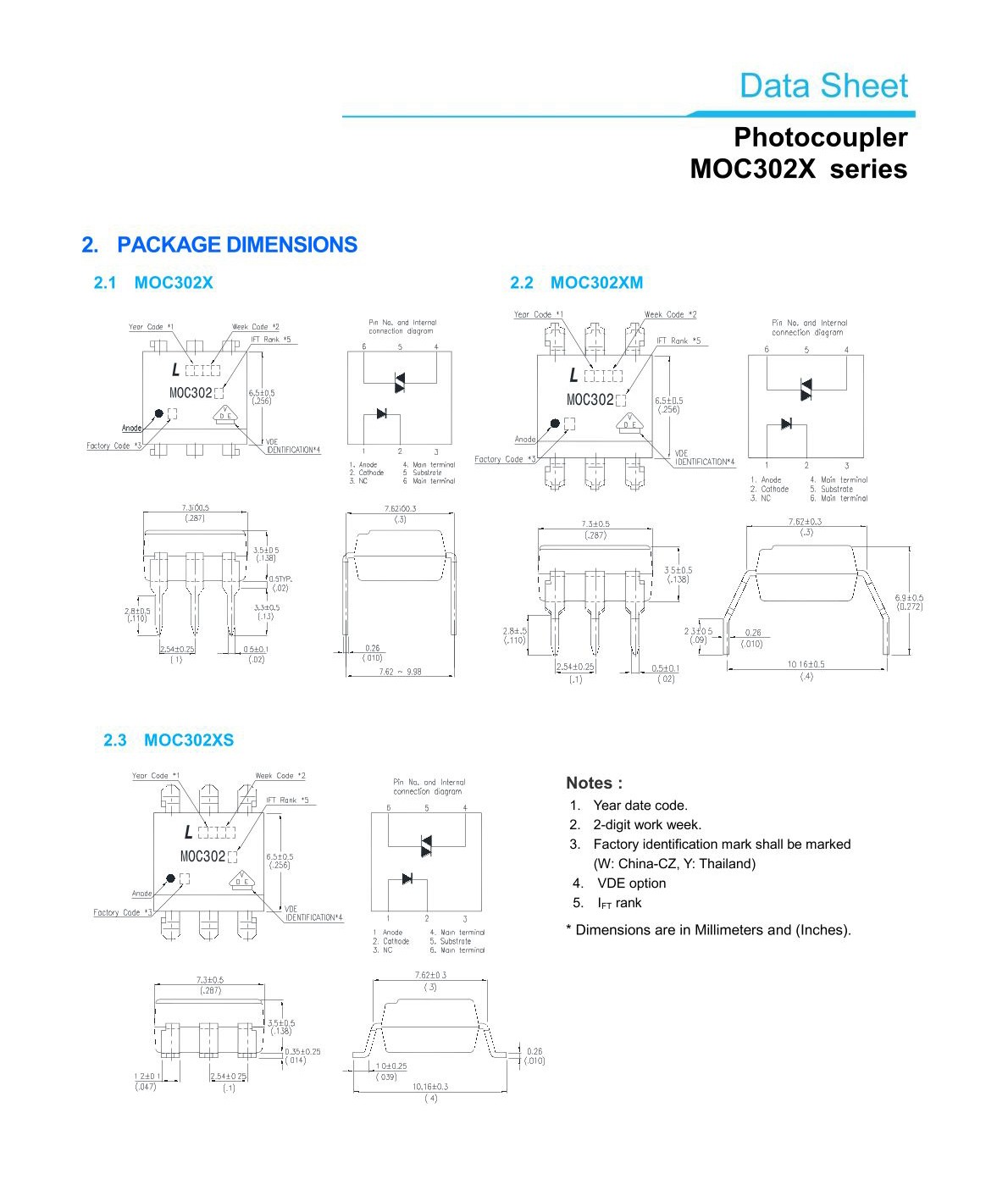

* Dual-in-line package :
MOC3020, MOC3021, MOC3022, MOC3023
* Wide lead spacing package :
MOC3020M, MOC3021M, MOC3022M, MOC3023M
* Surface mounting package :
MOC3020S, MOC3021S, MOC3022S, MOC3023S

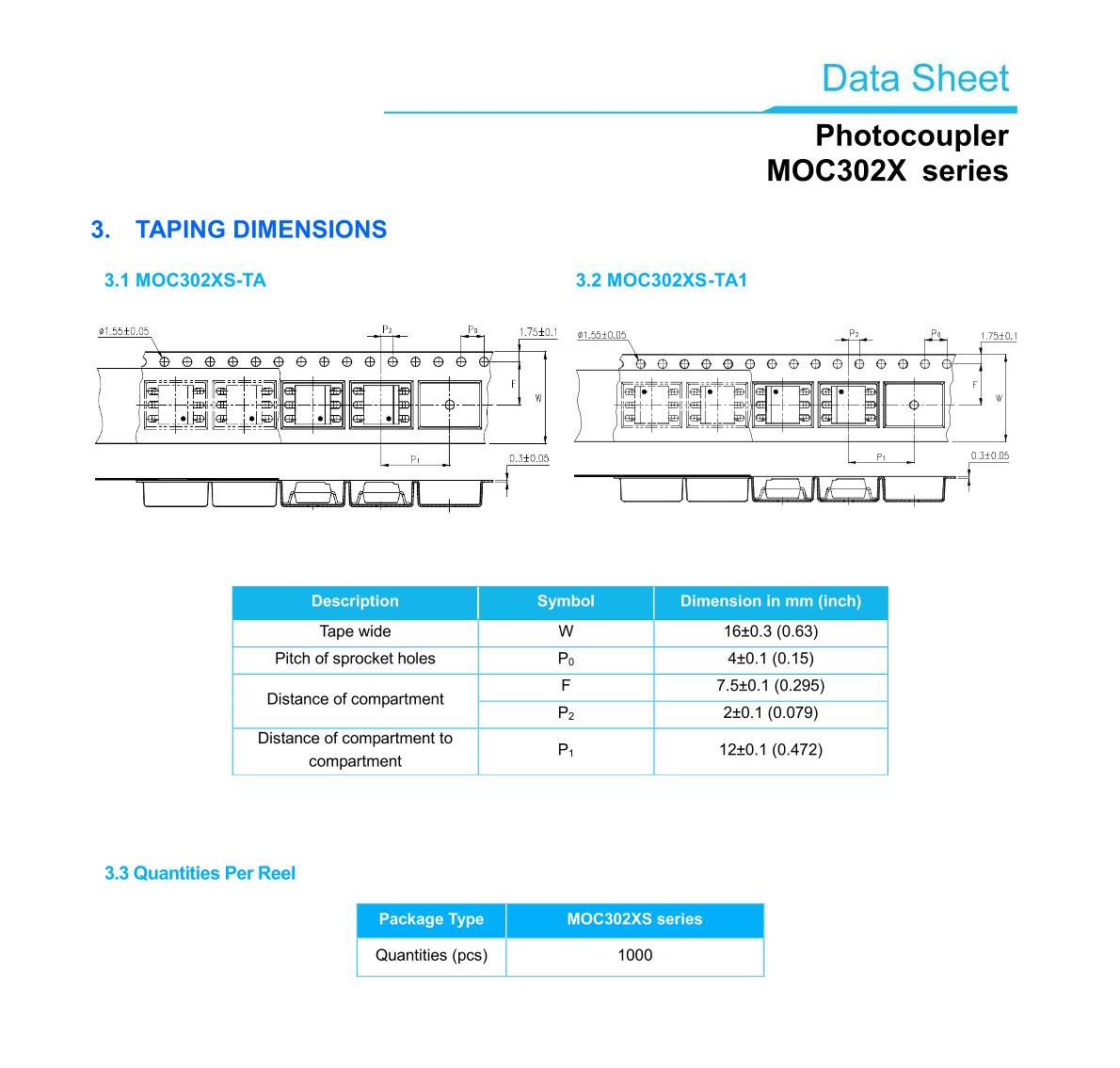

* Tape and reel packaging :
MOC3020S-TA1, MOC3021S-TA1, MOC3022S-TA1, MOC3023S-TA1
* Safety approval
UL / CSA / FIMKO / VDE* approved
*Required “V” ordering option
APPLICATIONS
* Motor Controls
* Solid state relays
* For triggering high power thyristor and triac
* Household use equipment
Product Description
| Type# | Description |
| ANSC PART# | ANSC- MOC3021 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Triac, SCR Output Optoisolators | |
| Manufacturer | LITEON |
| Series | MOC302x |
| Packaging | Tube |
| Part Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 400 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 15mA |
| Current - Hold (Ih) | 250µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | CQC, CSA, TUV, UL, VDE |
| Base Product Number | MOC302 |

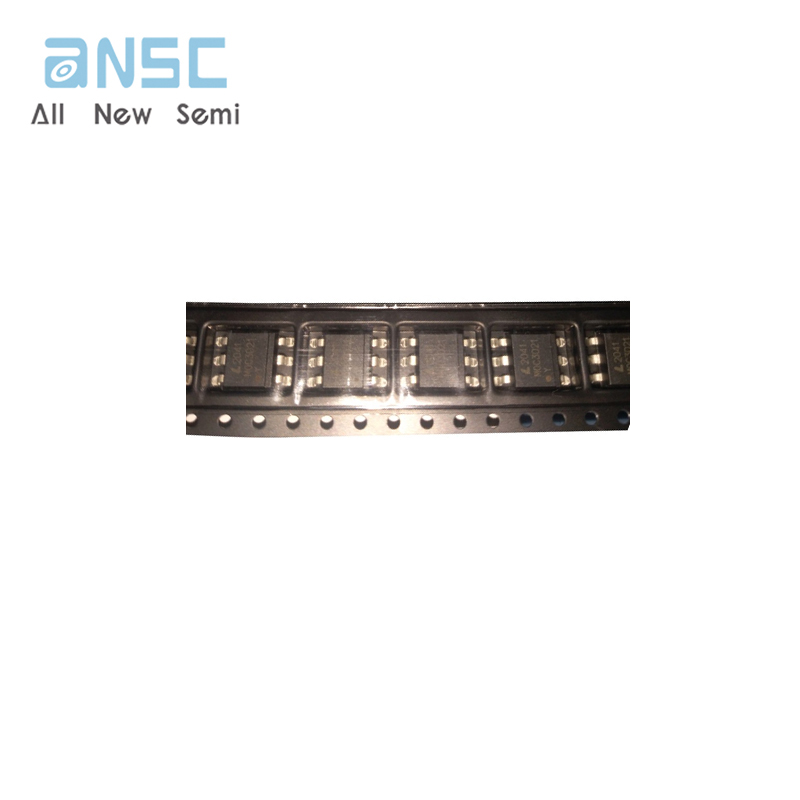

Product Photos
