Product Details
EVALUATION BOARD DESCRIPTION
The EVAL-AD5421 is a full-featured evaluation board, designed to allow the user to easily evaluate all features of the AD5421 loop-powered 4 mA to 20 mA DAC. The AD5421 pins are accessible at on-board connectors for external connection. The AD5421 evaluation board is controlled via the PC’s USB port in conjunction with Analog Device’s system demonstration platform board. The SDP board allows the evaluation board to be controlled through the USB port of a Windows® XP (SP2 or later) or Vista-based (32-bit) PC using the AD5421 evaluation software. The AD5421 serial interface is also accessible at the testpoint connections on the board.
FEATURES
Full-featured evaluation board for the AD5421
Link options
PC control in conjunction with Analog Devices, Inc.,
system demonstration platform (SDP)
PC software for control
EQUIPMENT NEEDED
DC power supply unit
SDP for PC control (EVAL-SDP-CB1Z)
Voltmeter or ammeter
Product Description
| Type# | Description |
| ANSC PART# | ANSC-ADUM1201ARZ |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Original |
| Series | iCoupler® |
| Packaging | Tube |
| Part Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ADUM1201 |

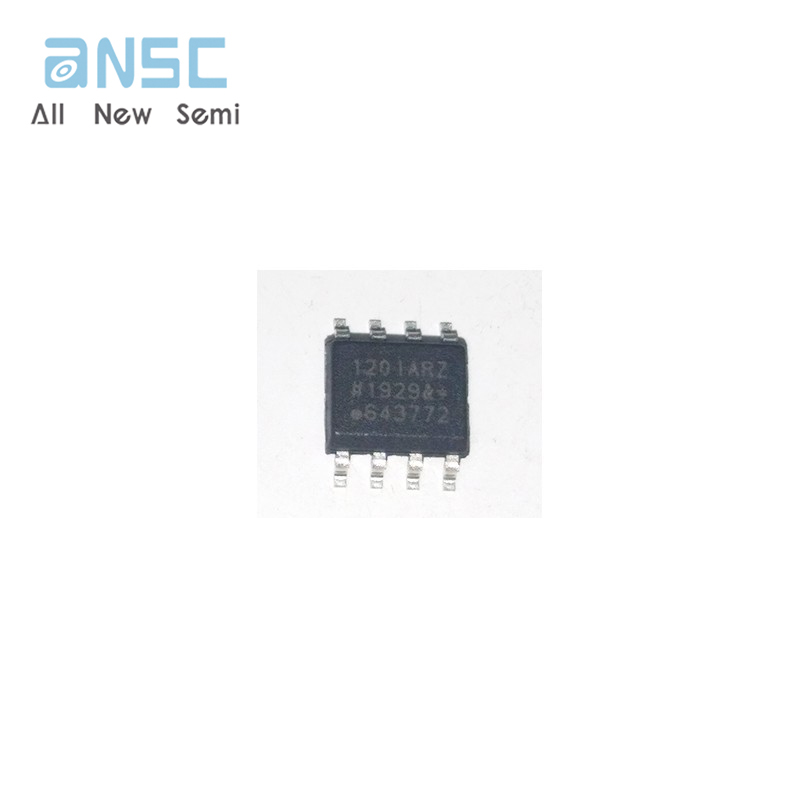

Actual image of the product

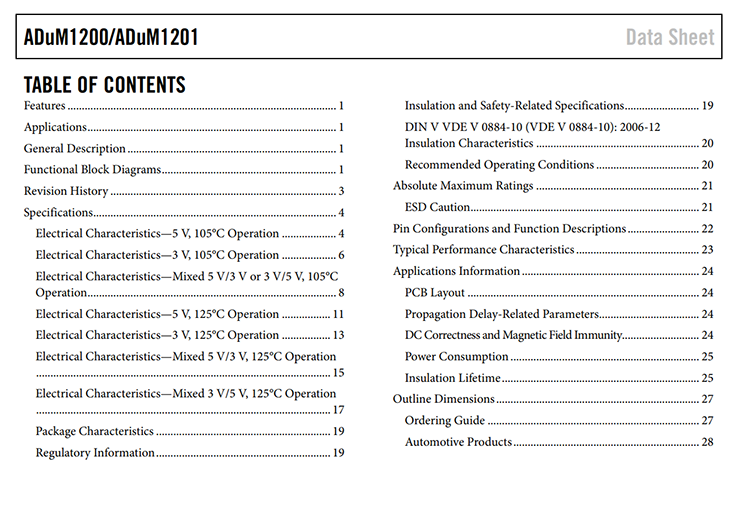

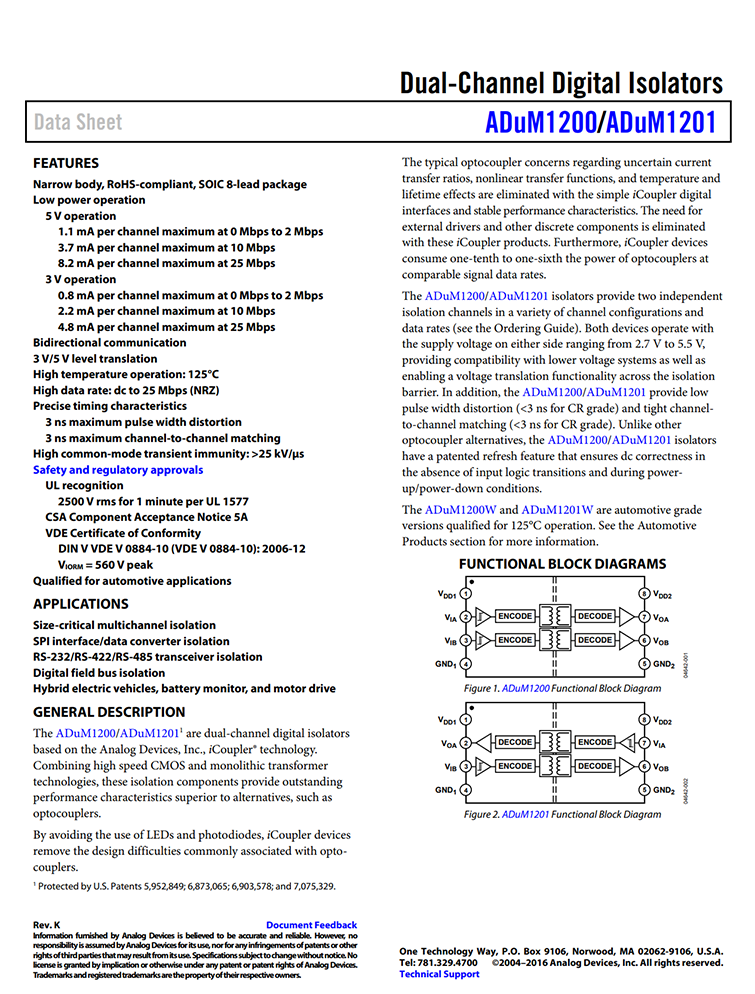

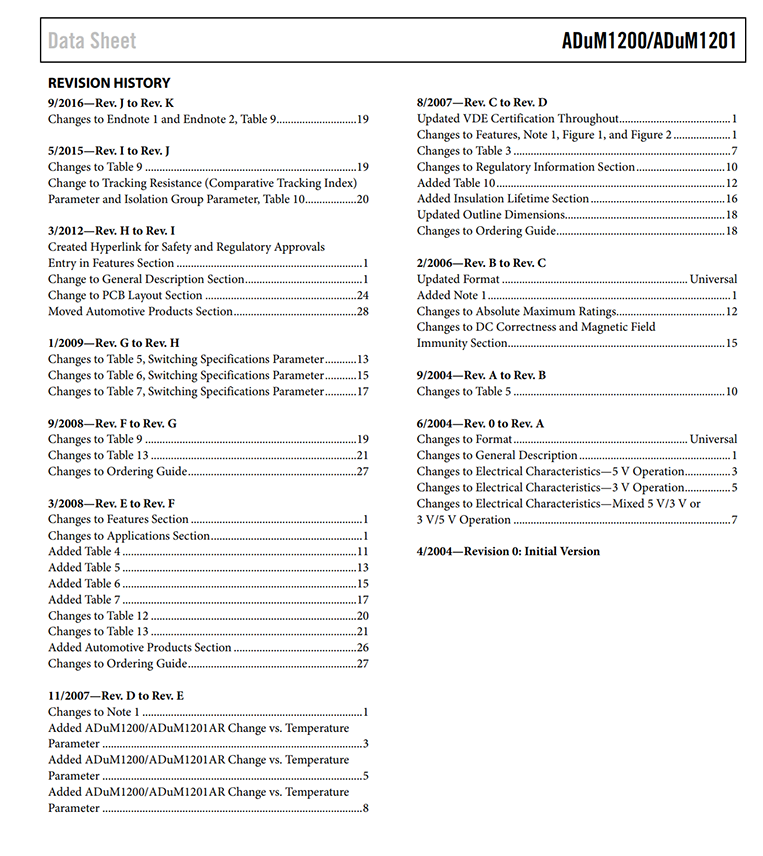

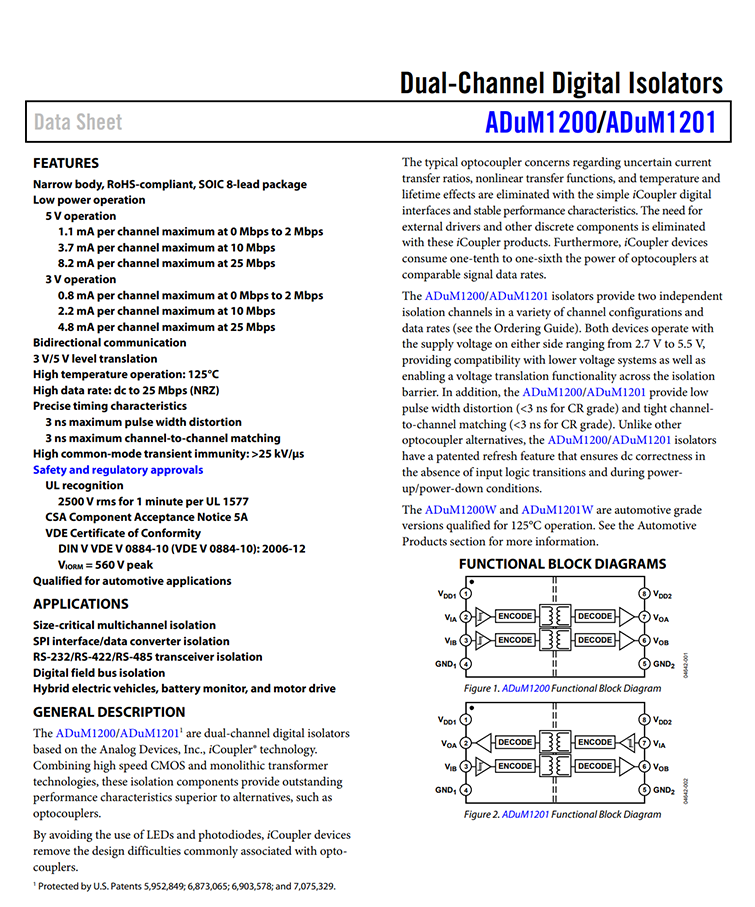

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
