Product Details
| Transistor NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SC−70/SOT−323 package which is designed for low power surface mount applications. Features • Simplifies Circuit Design • Reduces Board Space • Reduces Component Count • The SC−70/SOT−323 package can be soldered using wave or reflow. The modified gull−winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die. • Available in 8 mm embossed tape and reel. Use the Device Number to order the 7 inch/3000 unit reel. • Pb−Free Packages are Available |
Product Description
| Type | Description |
| ANSC PART# | ANSC -MUN5232T1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistors Included | R1 and R2 |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 4.7 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Power - Max | 202 mW |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Base Product Number | MUN5232 |

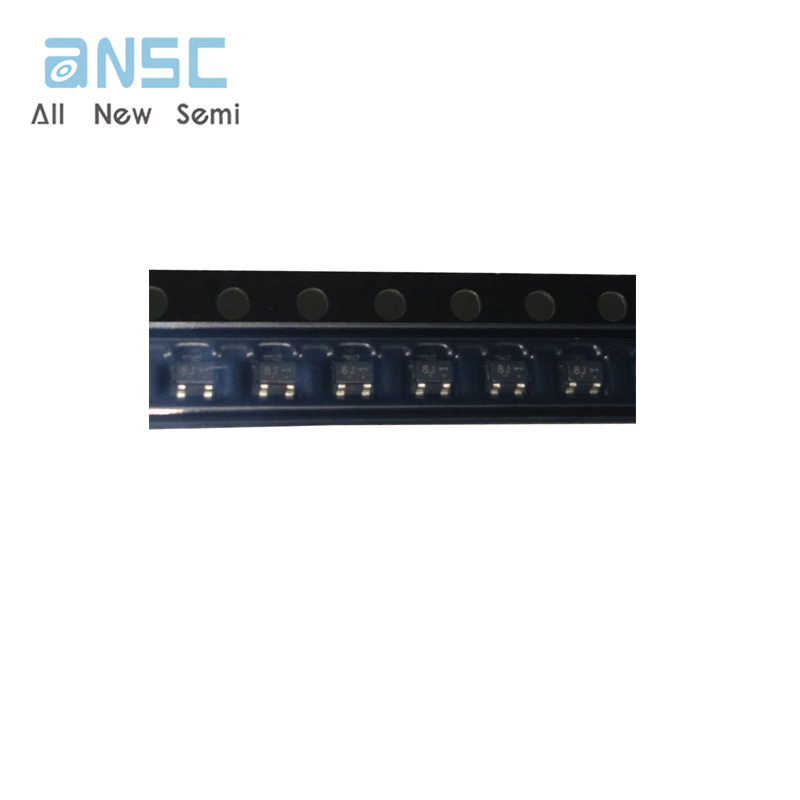

Product Photos

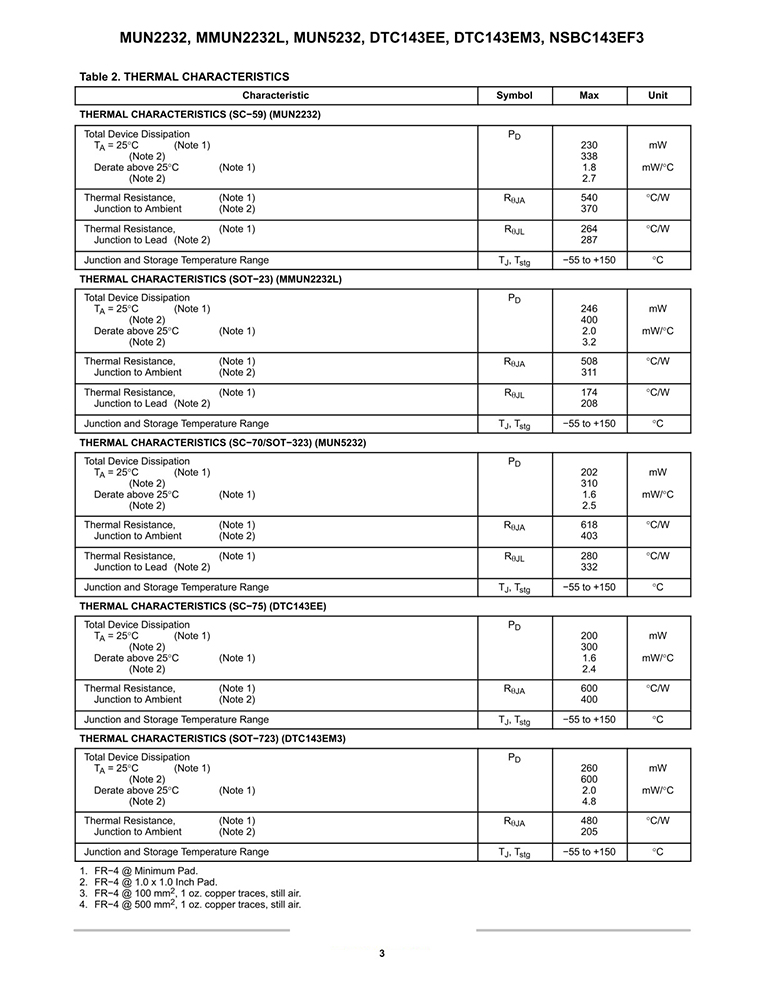

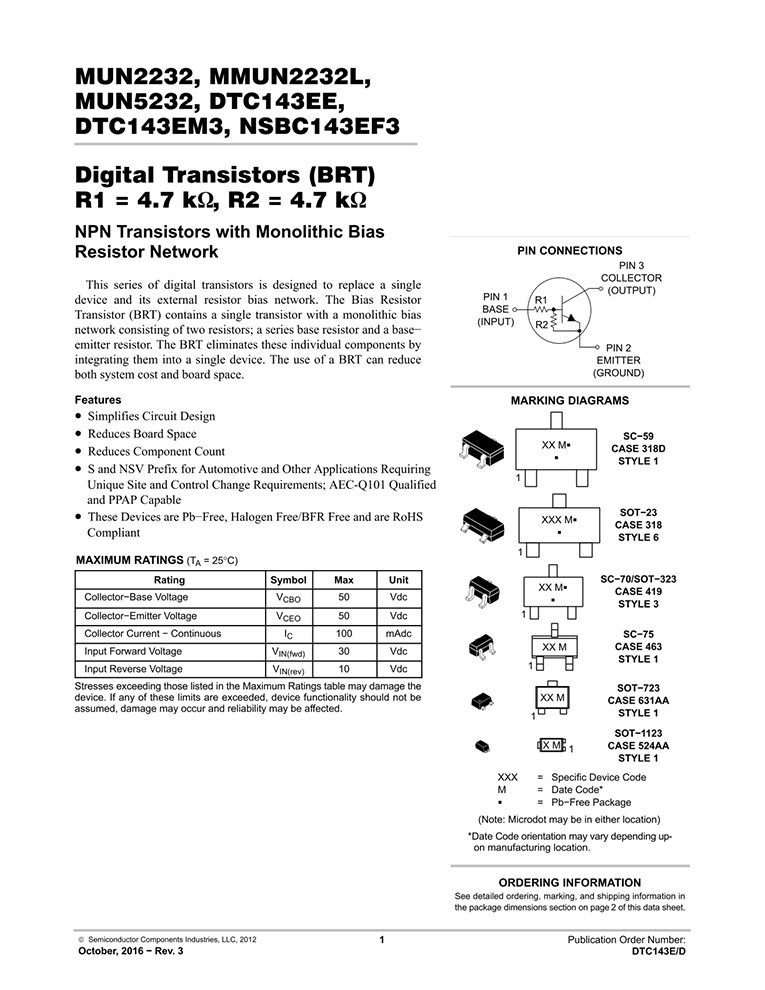

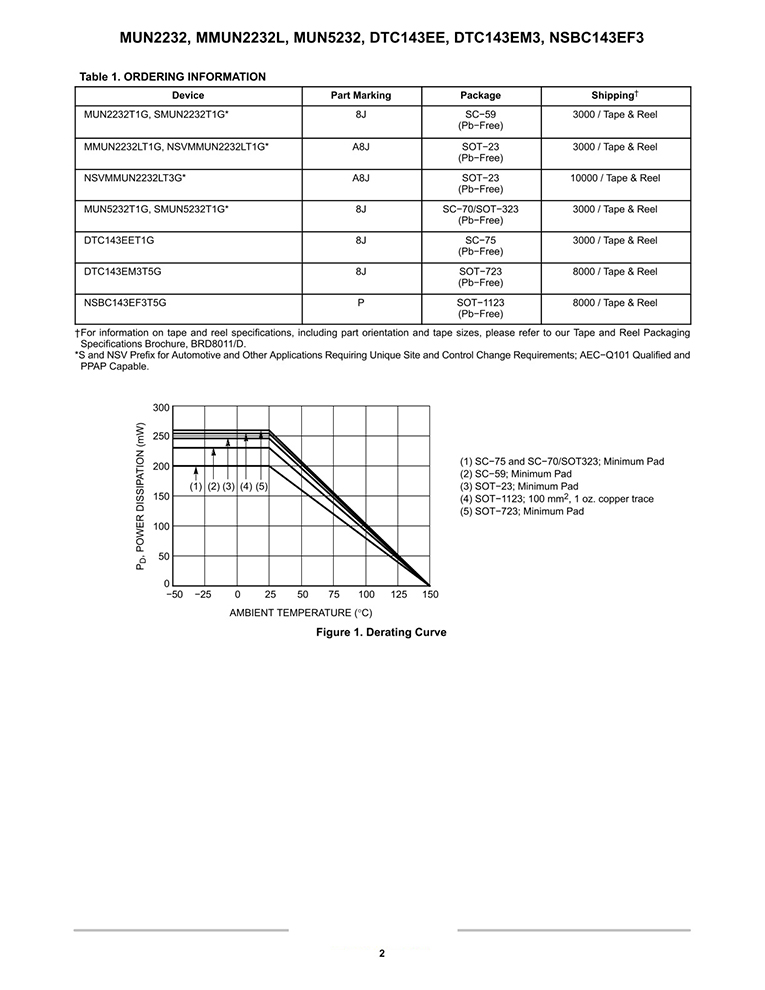

Product datasheet
For more information, please download
