Product Details
| sensor IC featuring the Tria⊗is® Hall technology. Conventional planar Hall technology is only sensitive to the flux density applied orthogonally to the IC surface. The Tria is Hall sensor is also sensitive to the flux density applied parallel to the IC surface. This is obtained through an Integrated Magneto-Concentrator (IMC) which is deposited on the CMOS die (as an additional back-end step). Sensor IC * Simple & Robust Magnetic Design * Tria is Hall Technology * Programmable Angular Range up to 360 Degrees * Programmable Linear Transfer Characteristic * Selectable Analog (Ratiometric), PWM, Serial Protocol * 12 bit Angular Resolution - 10 bit Angular ThermalAccuracy * 40 bit ID Number * Single Die – SO8 Package RoHS Compliant * Dual Die (Full Redundant) – TSSOP16 Package RoHS Compliant |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- MLX90316KGO-BCG-000-RE |
| Category | Sensors, Transducers |
| Position Sensors | |
| Angle, Linear Position Measuring | |
| Manufacturer | Original |
| Series | Triaxis® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Programmable | - |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1° |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | MLX90316 |

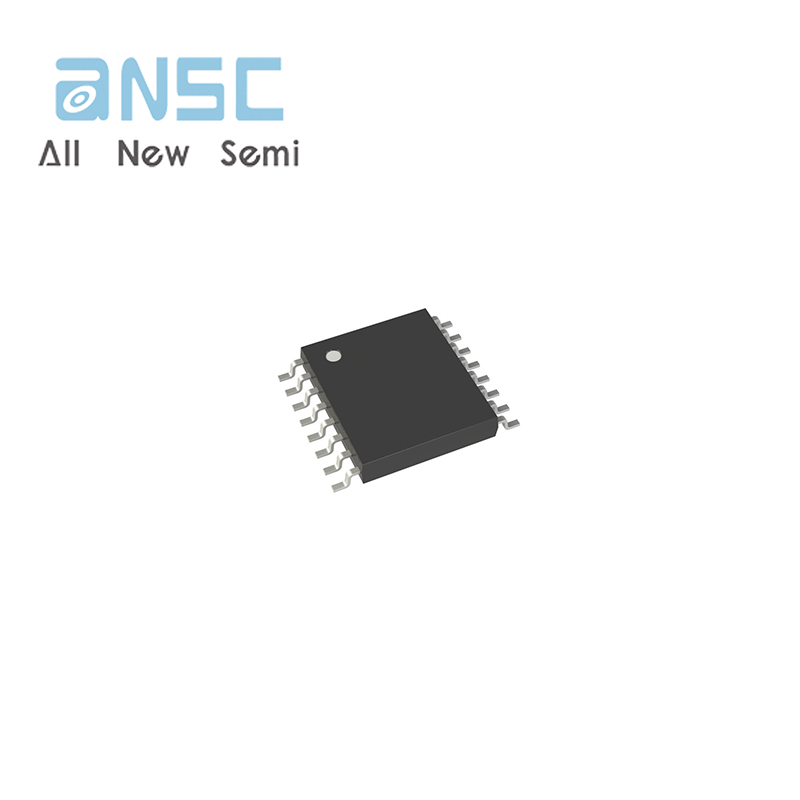

Product Photos

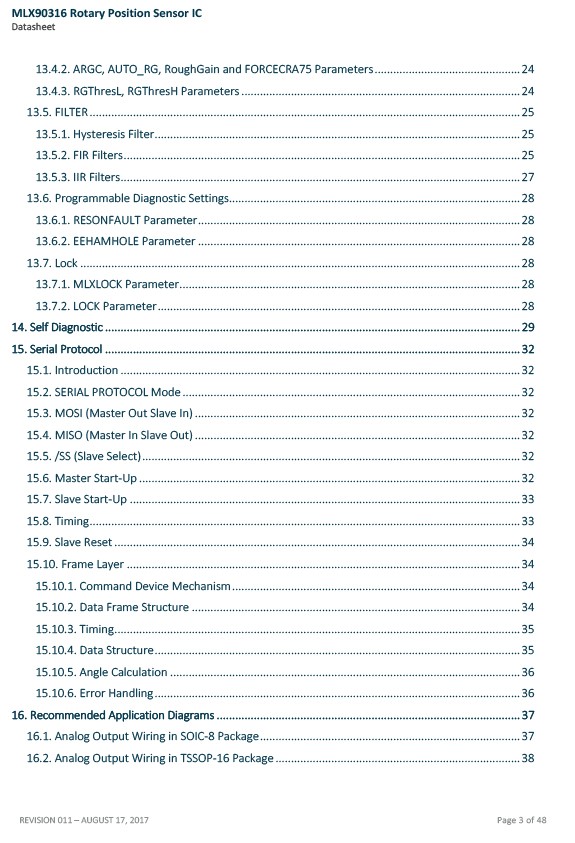

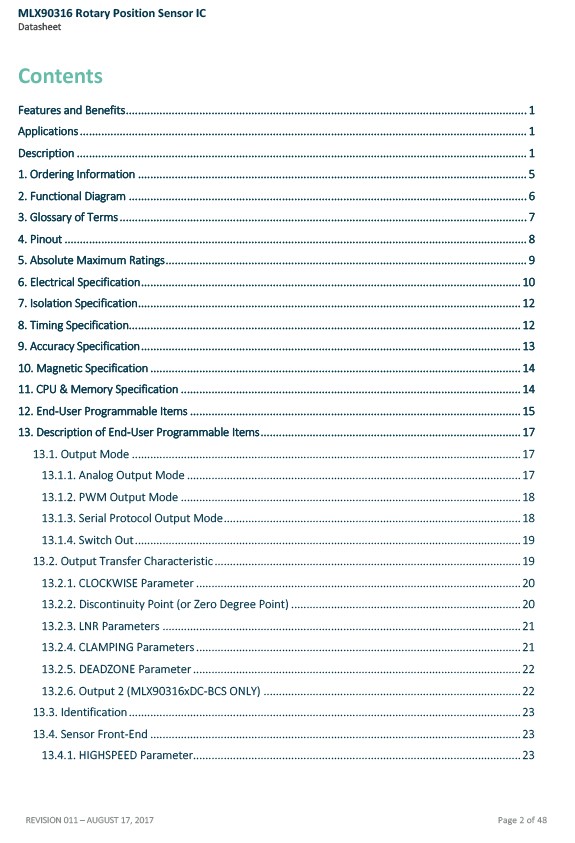

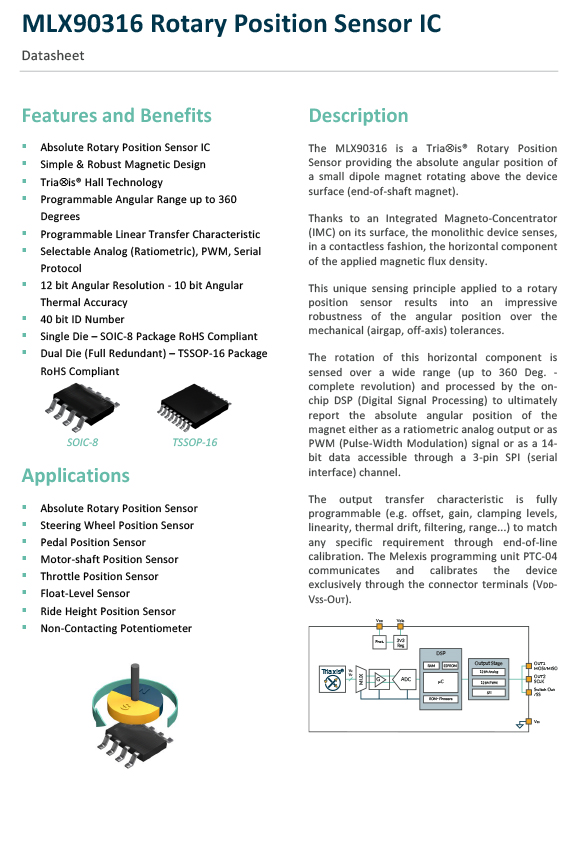

Product datasheet
