Product Details
Benefits
● Very Low RDS(on) at 4.5V VGS
● Ultra-Low Gate Impedance
● Fully Characterized Avalanche Voltage and Current
Applications
● High Frequency Synchronous Buck Converters for Computer Processor Power
● High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
Product Description
Type | Description |
|---|---|
PART# | IRLR7843TRPBF |
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | / |
Series | HEXFET® |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 30 V |
Current - Continuous Drain (Id) @ 25°C | 161A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
Rds On (Max) @ Id, Vgs | 3.3mOhm @ 15A, 10V |
Vgs(th) (Max) @ Id | 2.3V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 4.5 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 4380 pF @ 15 V |
FET Feature | - |
Power Dissipation (Max) | 140W (Tc) |
Operating Temperature | -55°C ~ 175°C (TJ) |
Grade | - |
Qualification | - |
Mounting Type | Surface Mount |
Supplier Device Package | TO-252AA (DPAK) |
Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
Base Product Number | IRLR7843 |

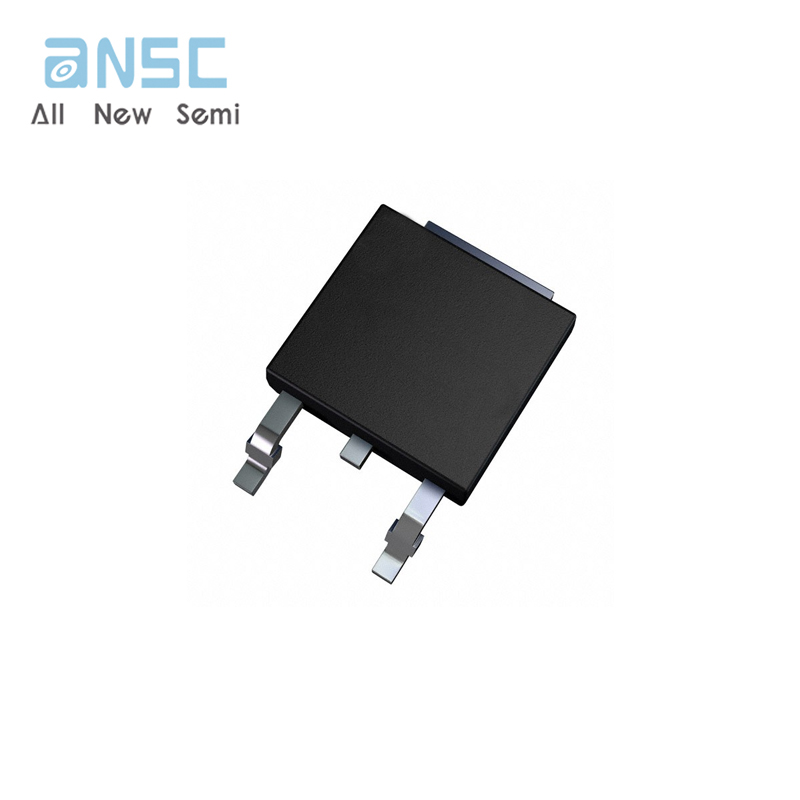

Actual image of the product
