Product Details
| roduct Description: DRV5032FBDBZT Solid-State Magnetic Switch Description The DRV5032FBDBZT is a solid-state magnetic switch , designed to detect and respond to changes in magnetic fields. This versatile device is ideal for applications requiring high sensitivity and reliability in a compact package. With its wide operating voltage range of 1.65V to 5.5V, it can be easily integrated into various electronic systems. Features High Sensitivity: The DRV5032FBDBZT offers a sensing range of ±3mT trip and ±1.5mT release, making it suitable for detecting small changes in magnetic fields. Compact Design: Measuring 1.3mm in width, 2.92mm in length, and 1mm in thickness, this device is perfect for surface-mount applications. Wide Operating Temperature: It operates effectively between -40°C and 85°C, ensuring reliable performance across a broad temperature range. Low Power Consumption: With a maximum supply current of 1.8μA, this switch is energy-efficient and suitable for battery-powered devices. Complementary Output: The push-pull output type provides a complementary signal, which can be easily integrated into digital circuits. RoHS3 Compliant: The device adheres to RoHS3 standards, ensuring environmental sustainability. Applications Primary Applications: Automotive Systems: Used in automotive sensors for detecting magnetic fields related to vehicle position or motion. Industrial Automation: Integrated into industrial control systems for monitoring magnetic field changes. Consumer Electronics: Employed in consumer devices such as smart home sensors and wearable technology. Secondary Applications: Medical Devices: Utilized in medical equipment for detecting magnetic fields related to patient monitoring. Aerospace and Defense: Used in aerospace and defense applications where precise magnetic field detection is crucial. |
Product Description
| Type | Description |
| PART# | DRV5032FBDBZT |
| Category | Sensors, Transducers |
| Magnetic Sensors | |
| Switches (Solid State) | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Function | Omnipolar Switch |
| Technology | Hall Effect |
| Polarization | North Pole, South Pole |
| Sensing Range | ±4.8mT Trip, ±0.5mT Release |
| Test Condition | 25°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Supply (Max) | 1.8µA |
| Current - Output (Max) | 5mA |
| Output Type | Push-Pull |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | DRV5032 |

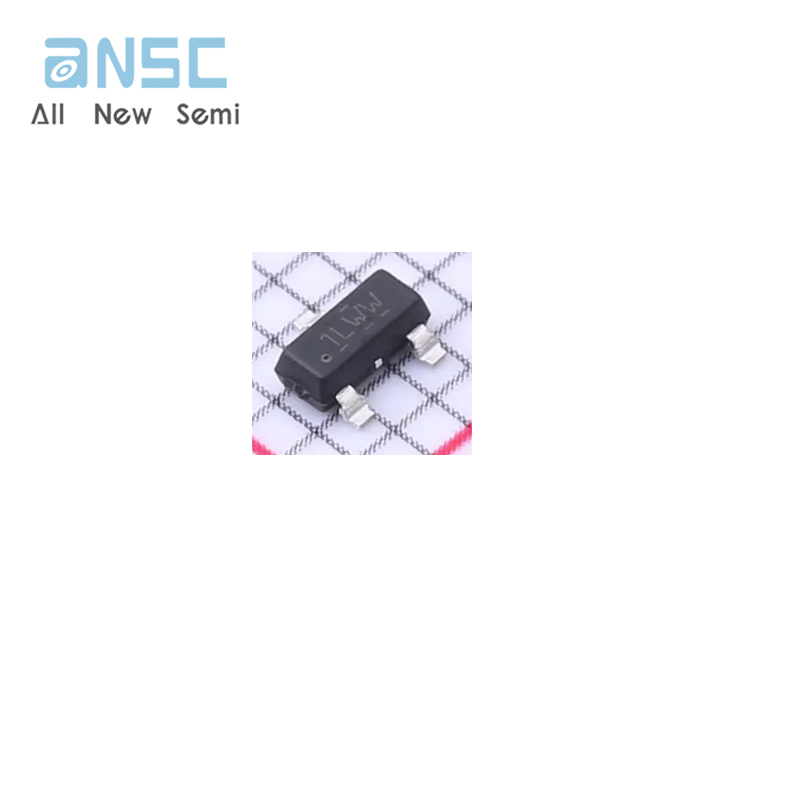

Product Photos
