Product Details
Product Overview
The reverse leakage current for this electrical device is 100nA @ 27V.Voltage (Tol) 5% is the maximum possible.
Reverse leakage currents can reach 100nA.In terms of design, diode has a high degree of flexibildiodey thanks to diodes 100nA zener current.
This value reaches 900mV @ 10mA when the maximum Forward voltage (Vf) is applied.In order to ensure full functionality of this device,
it is recommended that the reverse voltage be 100nA.
Product Features
reverse leakage current of 100nA @ 27V
100nA @ 27V is the maximum voltage (Tol)
Reverse leakage current reaches 100nA
the zener current of 100nA
Product Description
| Type# | Description |
| ANSC PART# | ANSC -MMBZ5258B-7-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 36 V |
| Tolerance | ±5% |
| Power - Max | 350 mW |
| Impedance (Max) (Zzt) | 70 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 27 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | MMBZ5258 |

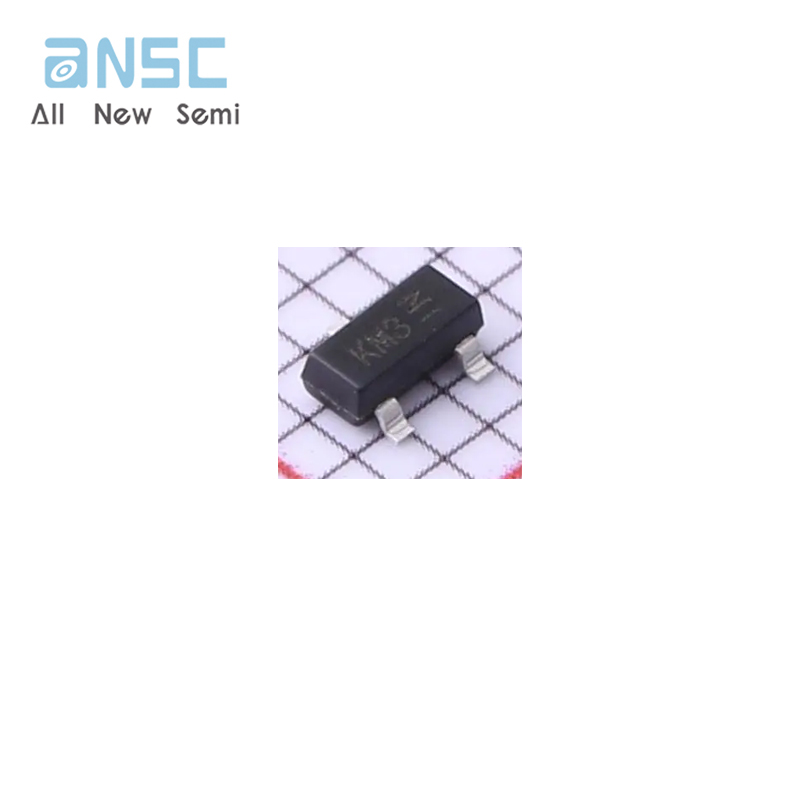

Product Photos

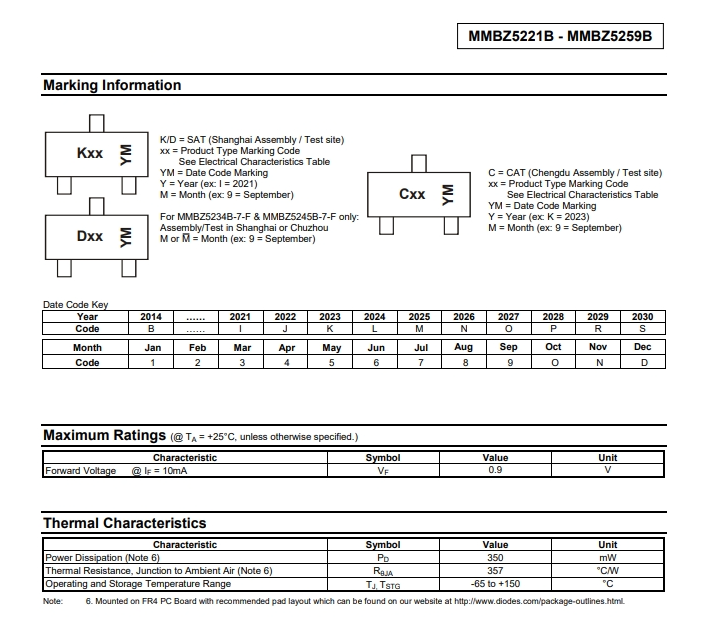

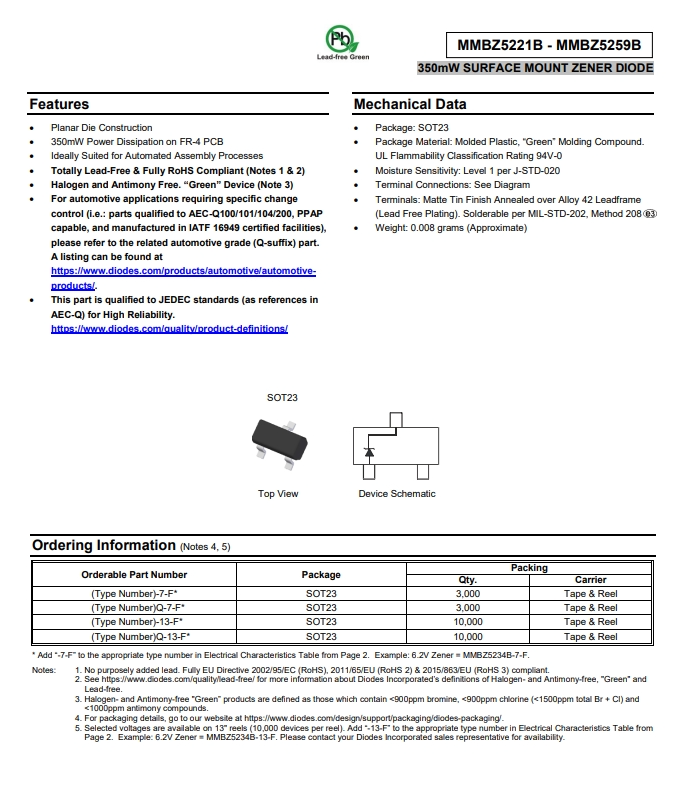

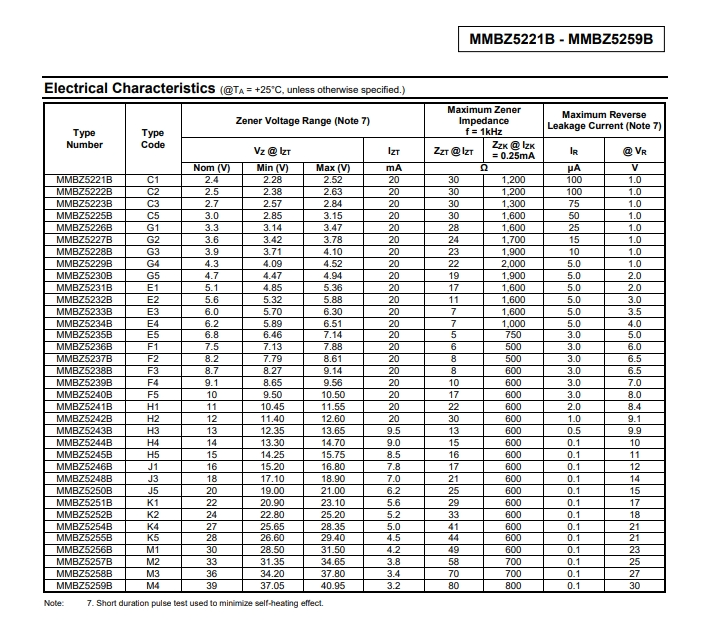

Product datasheet
For more information, please download
