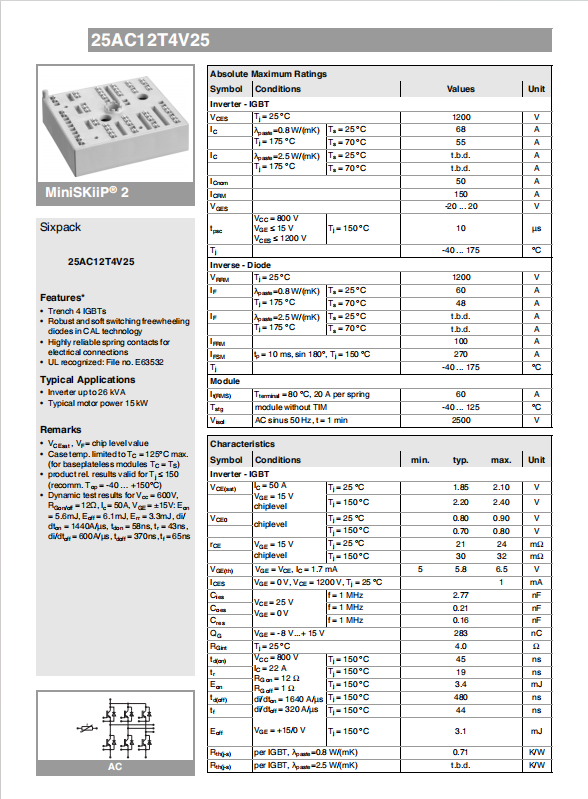

Product Features

• Trench 4 IGBTs

• Robust and soft switching freewheeling diodes in CAL technology

• Highly reliable spring contacts for electrical connections

• UL recognized: File no. E63532

Product Applications

• Inverter up to 26 kVA

• Typical motor power 15 kW

Product Remarks

• VCEsat , VF= chip level value

• Case temp. limited to TC = 125°C max. (for baseplateless modules TC = TS)

• product rel. results valid for Tj ≤ 150 (recomm. Top = -40 … +150°C)

• Dynamic test results for Vcc = 600V, RGon/off = 12Ω, Ic = 50A, VGE = ±15V: Eon= 5.6mJ, Eoff = 6.1mJ, Err = 3.3mJ, di/dton = 1440A/µs, tdon = 58ns, tr = 43ns, di/dtoff = 600A/µs, tdoff = 370ns, tf = 65ns

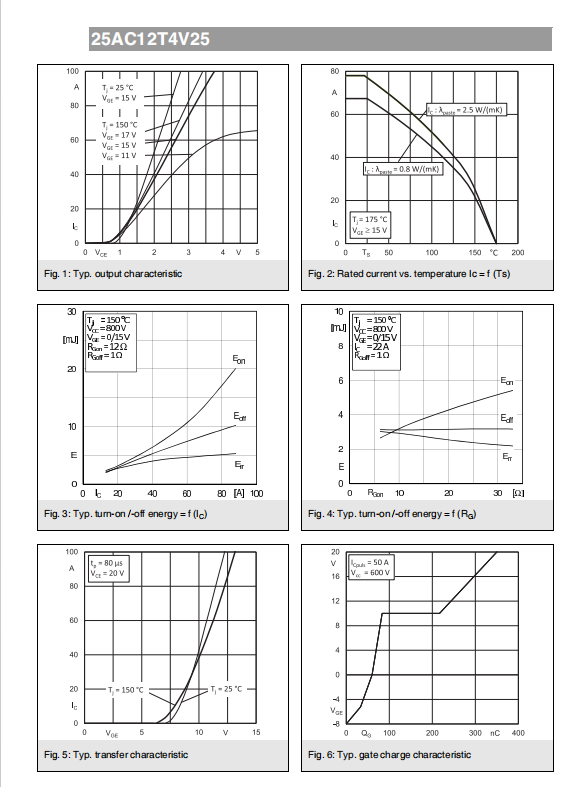

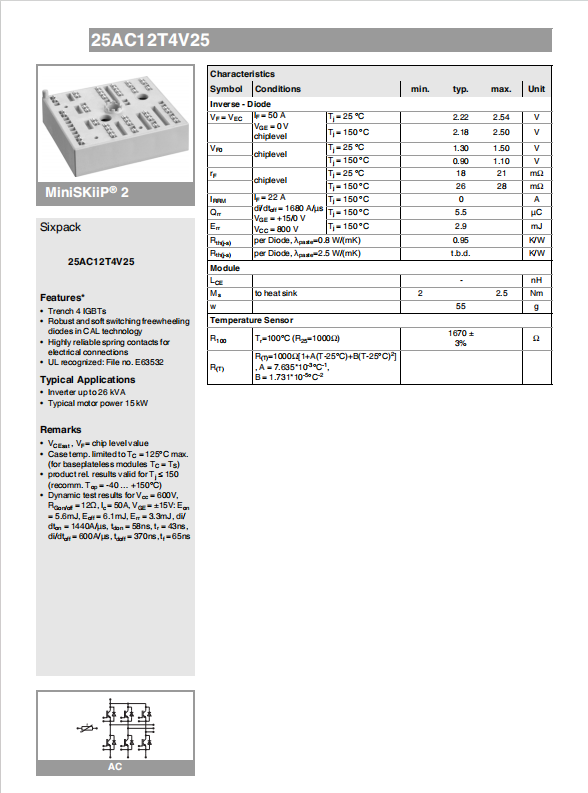

Specifications

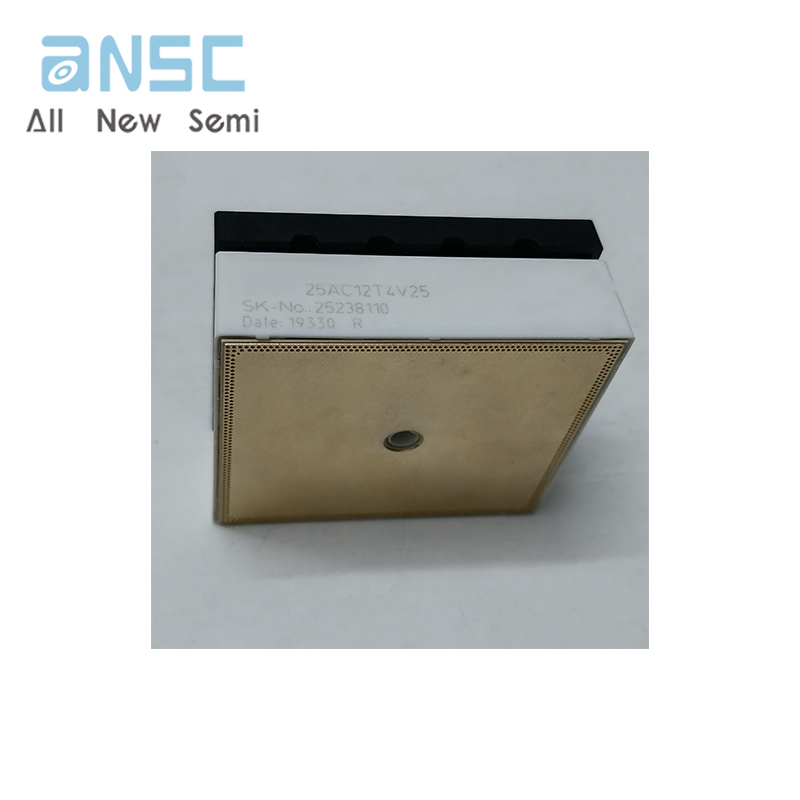

Actual product photos
