Product Descriptions

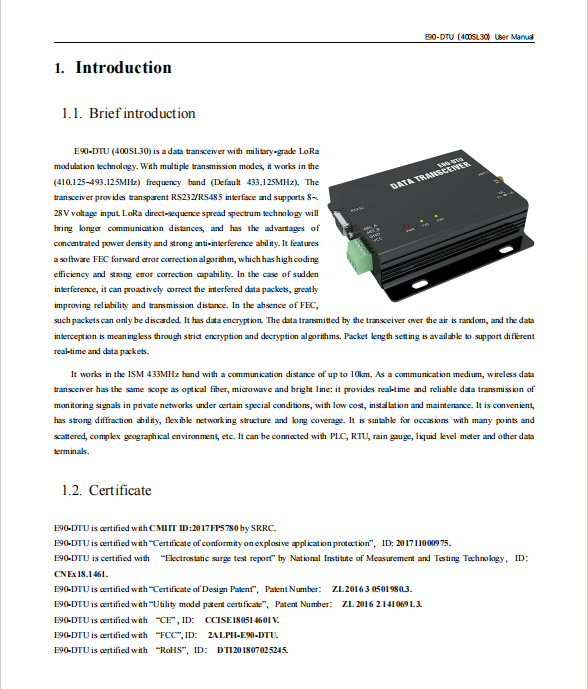

E90-DTU (400SL30) is a data transceiver with military-grade LoRa modulation technology. With multiple transmission modes, it works in the (410.125~493.125MHz) frequency band (Default 433.125MHz). The transceiver provides transparent RS232/RS485 interface and supports 8~. 28V voltage input. LoRa direct-sequence spread spectrum technology will bring longer communication distances, and has the advantages of concentrated power density and strong anti-interference ability. It features a software FEC forward error correction algorithm, which has high coding efficiency and strong error correction capability. In the case of sudden interference, it can proactively correct the interfered data packets, greatly improving reliability and transmission distance. In the absence of FEC, such packets can only be discarded. It has data encryption. The data transmitted by the transceiver over the air is random, and the data interception is meaningless through strict encryption and decryption algorithms. Packet length setting is available to support different real-time and data packets.
It works in the ISM 433MHz band with a communication distance of up to 10km. As a communication medium, wireless data transceiver has the same scope as optical fiber, microwave and bright line: it provides real-time and reliable data transmission of monitoring signals in private networks under certain special conditions, with low cost, installation and maintenance. It is convenient, has strong diffraction ability, flexible networking structure and long coverage. It is suitable for occasions with many points and scattered, complex geographical environment, etc. It can be connected with PLC, RTU, rain gauge, liquid level meter and other data terminals.

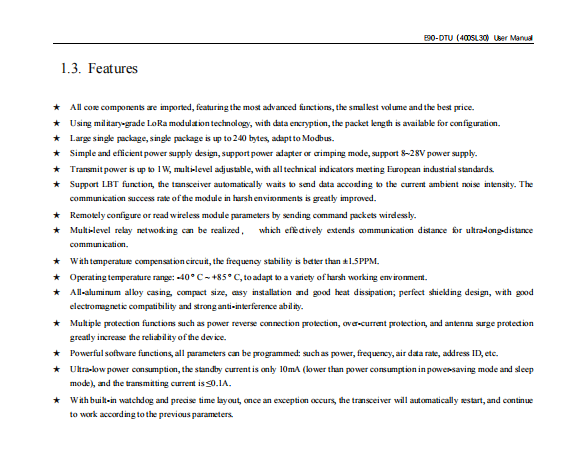

Product Features
★ All core components are imported, featuring the most advanced functions, the smallest volume and the best price.
★ Using military-grade LoRa modulation technology, with data encryption, the packet length is available for configuration.
★ Large single package, single package is up to 240 bytes, adapt to Modbus.
★ Simple and efficient power supply design, support power adapter or crimping mode, support 8~28V power supply.
★ Transmit power is up to 1W, multi-level adjustable, with all technical indicators meeting European industrial standards.
★ Support LBT function, the transceiver automatically waits to send data according to the current ambient noise intensity. The communication success rate of the module in harsh environments is greatly improved.
★ Remotely configure or read wireless module parameters by sending command packets wirelessly.
★ Multi-level relay networking can be realized ， which effectively extends communication distance for ultra-long-distance communication.
★ With temperature compensation circuit, the frequency stability is better than ±1.5PPM.
★ Operating temperature range: -40 ° C ~ +85 ° C, to adapt to a variety of harsh working environment.
★ All-aluminum alloy casing, compact size, easy installation and good heat dissipation; perfect shielding design, with good electromagnetic compatibility and strong anti-interference ability.
★ Multiple protection functions such as power reverse connection protection, over-current protection, and antenna surge protection greatly increase the reliability of the device.
★ Powerful software functions, all parameters can be programmed: such as power, frequency, air data rate, address ID, etc.
★ Ultra-low power consumption, the standby current is only 10mA (lower than power consumption in power-saving mode and sleep mode), and the transmitting current is ≤0.1A.
★ With built-in watchdog and precise time layout, once an exception occurs, the transceiver will automatically restart, and continue to work according to the previous parameters.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E90-DTU(400SL30) | |
| Working frequency | 410.125~493.125 MHz | Default: 433.125MHz |
| Transmitting power | 30 dBm | About 1W |
| Air data rate | 0.3k~62.5kbps | Default: 2.4kbps |
| Test distance | 10000 meter | - |
| Size | 82 * 62 * 25 mm | Without SMA-K |
| Antenna type | SMA-K | - |
| Communication interface | RS232 / RS485 | Standard DB9 Hole / 3.81 connecting terminal |
| Channel numbers | 85v | Half duplex |
| Buffer | 1000 bytes | Can be sub-packed to 32/64/128/240 byte each time via command |
Actual product photos
Product Data Book：
For more product information, please download the PDF
