Product Details
| Brief Description: The STP33N60DM2 is a N-Channel MOSFET from STMicroelectronics, designed for switching applications. It features a built-in diode and operates in enhancement mode. The device is packaged in a TO-220-3 case and is available in a through-hole mounting configuration. Features: N-Channel MOSFET with built-in diode Enhancement mode operation High power dissipation: 190W High continuous drain current: 24A High pulsed drain current: 96A Low Rds(on) resistance: 130mΩ High gate charge: 43nC Operating temperature range: -55°C to 150°C RoHS3 compliant MSL 1 (unlimited) for moisture sensitivity Application Grade: The STP33N60DM2 is designed for high-power switching applications, such as: Power supplies Motor control Power conversion Renewable energy systems Applications: Switching power supplies Motor control systems Power conversion circuits Renewable energy systems High-power applications requiring high current and voltage ratings Overall, the STP33N60DM2 is a high-performance N-Channel MOSFET with a built-in diode, designed for high-power switching applications. Its high power dissipation, continuous drain current, and low Rds(on) resistance make it suitable for a wide range of applications. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-STP33N60DM2 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | STMicroelectronics |
| Series | MDmesh™ DM2 |
| Packaging | Tube |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1870 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 190W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
| Base Product Number | STP33 |

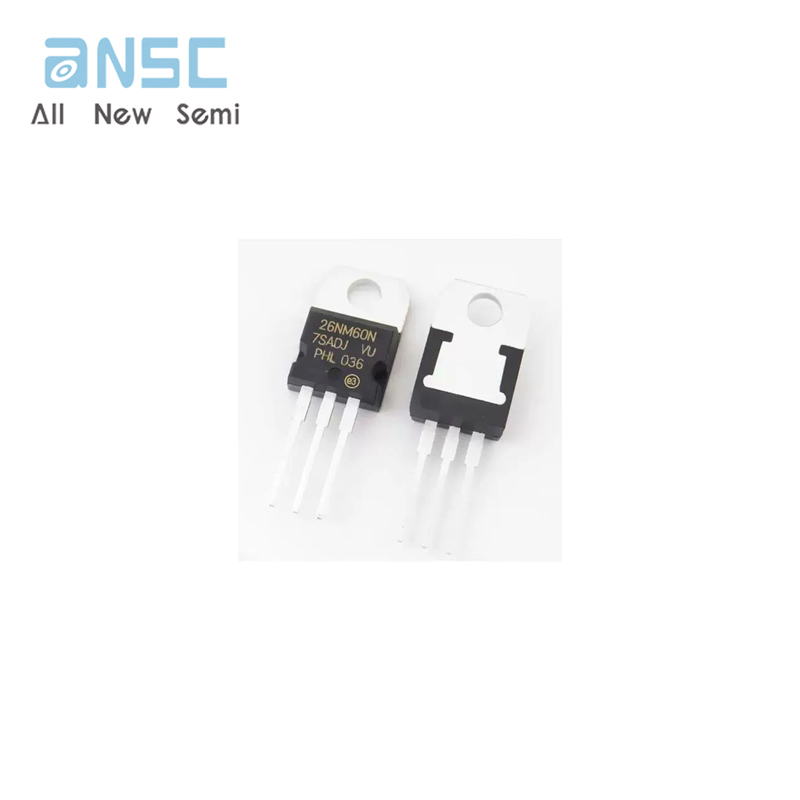

Product Photos

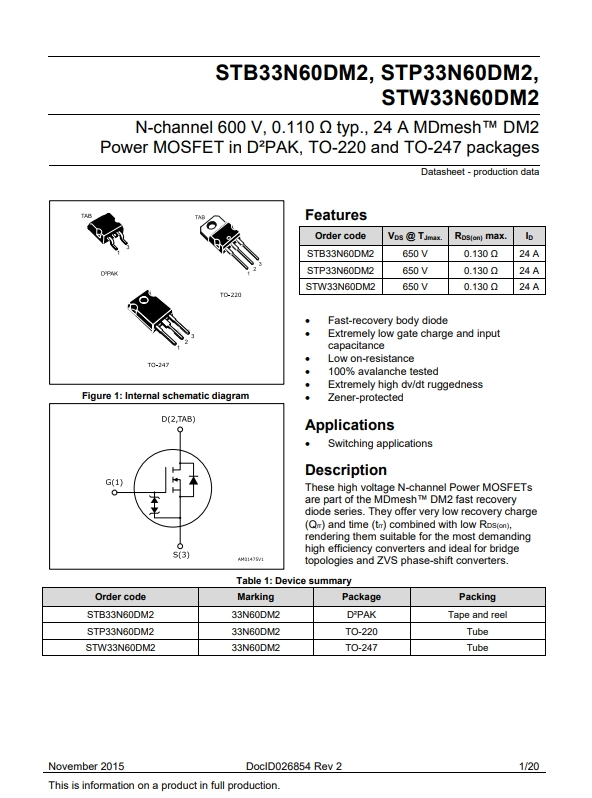

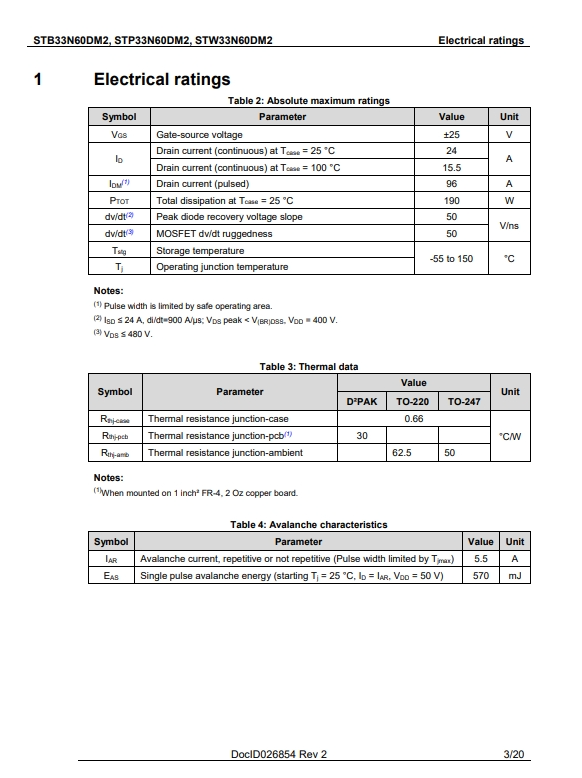

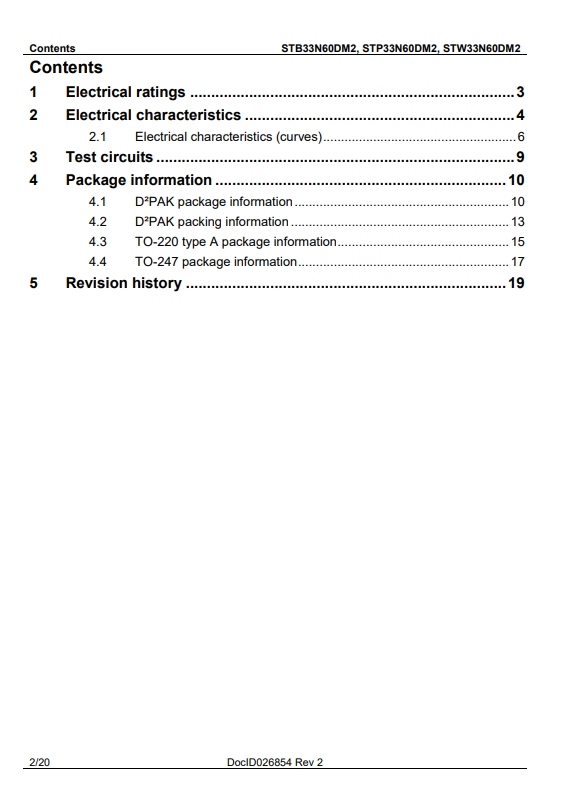

Product datasheet
