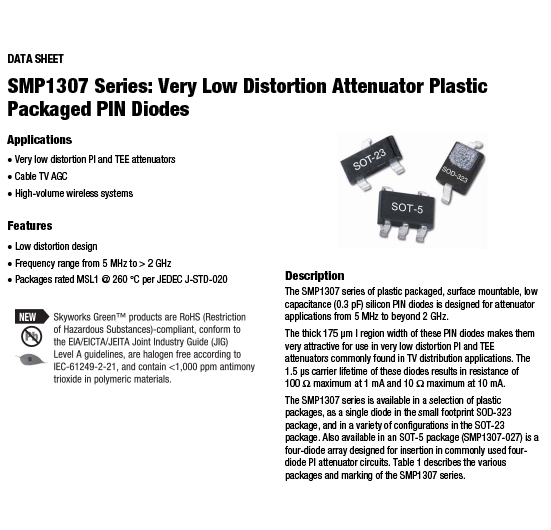

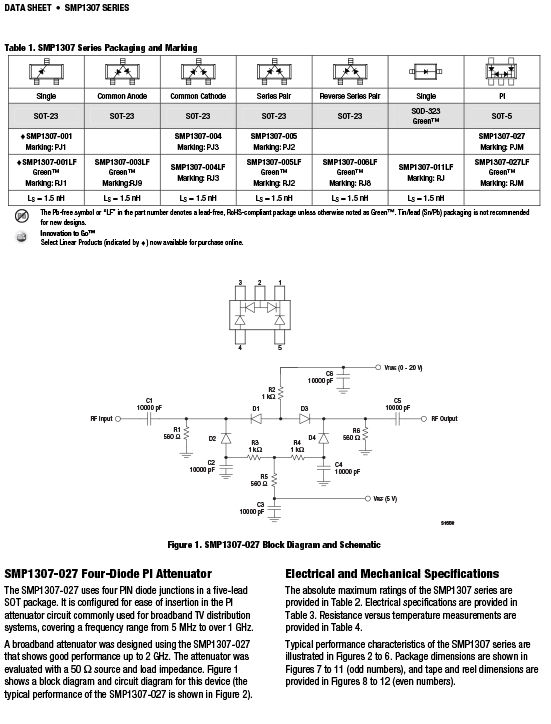

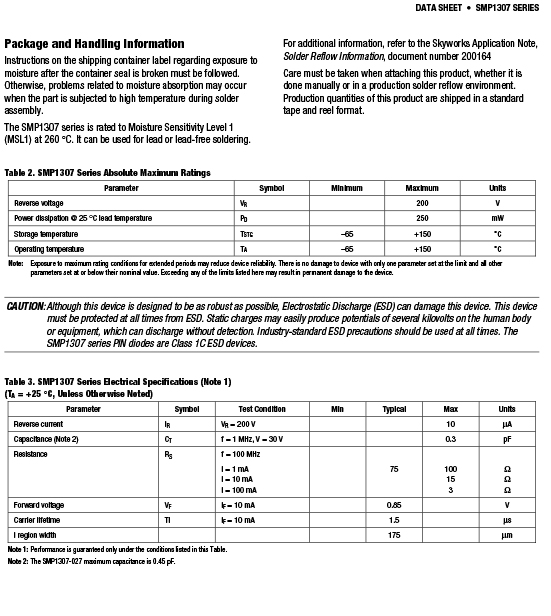

Description The SMP1307 series of plastic packaged, surface mountable, low capacitance (0.3 pF) silicon PIN diodes are designed for use in attenuator applications from 5 MHz to beyond 2 GHz.The thick 175 µm I region of these PIN diodes makes them very attractive for use in very low distortion PI and TEE attenuators commonly used in TV distribution applications. Features ■ Low Distortion Design ■ Frequency Range from HF to > 2 GHz ■ Designed for CATV AGC Applications ■ Designed for High Volume Wireless Applications |
Product Description
| Type | Description |
| ANSC PART# | SMP1307-027 |
| Ihs Manufacturer | Original |
| Package Description | PLASTIC PACKAGE-5 |
| Pin Count | 5 |
| Additional Feature | LOW DISTORTION |
| Application | ATTENUATOR |
| Breakdown Voltage-Min | 200 V |
| Configuration | COMPLEX |
| Diode Capacitance-Max | 0.45 pF |
| Diode Element Material | SILICON |
| Diode Forward Resistance-Max | 3 Ω |
| Diode Type | PIN DIODE |
| Frequency Band | HIGH FREQUENCY TO L BAND |
| JESD-30 Code | R-PDSO-G5 |
| JESD-609 Code | e0 |
| Minority Carrier Lifetime-Nom | 1.5 µs |
| Number of Elements | 4 |
| Number of Terminals | 5 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min |
-65 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Power Dissipation-Max | 0.25 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 200 V |
| Reverse Current-Max | 10 µA |
| Reverse Test Voltage | 200 V |
| Surface Mount | YES |
| Technology | POSITIVE-INTRINSIC-NEGATIVE |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |

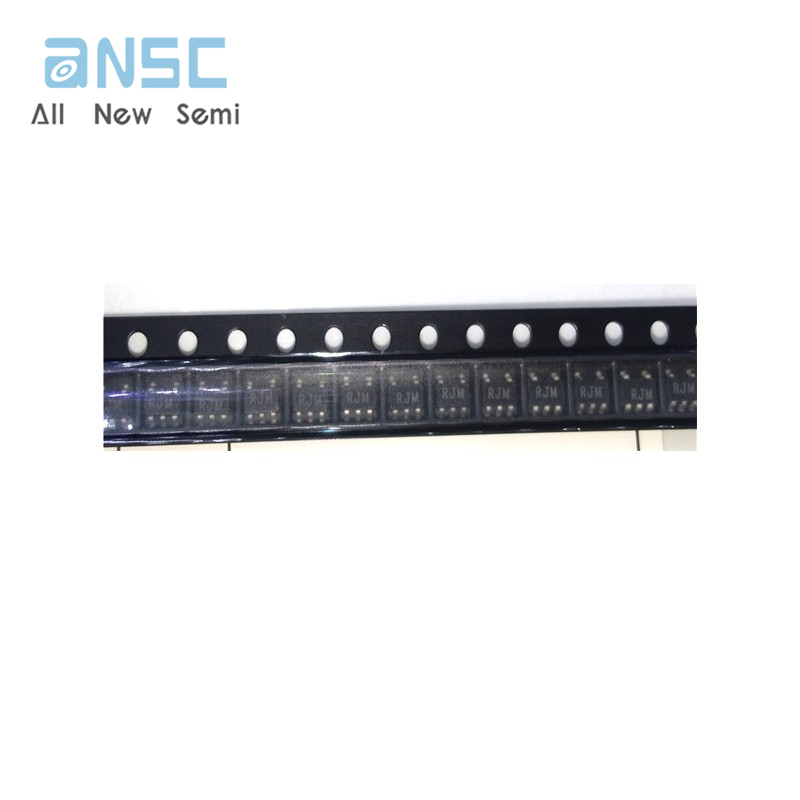

Actual image of the product
