Mikroe Motion 2 Click Board Product Introduction

2026-05-21

Introduction

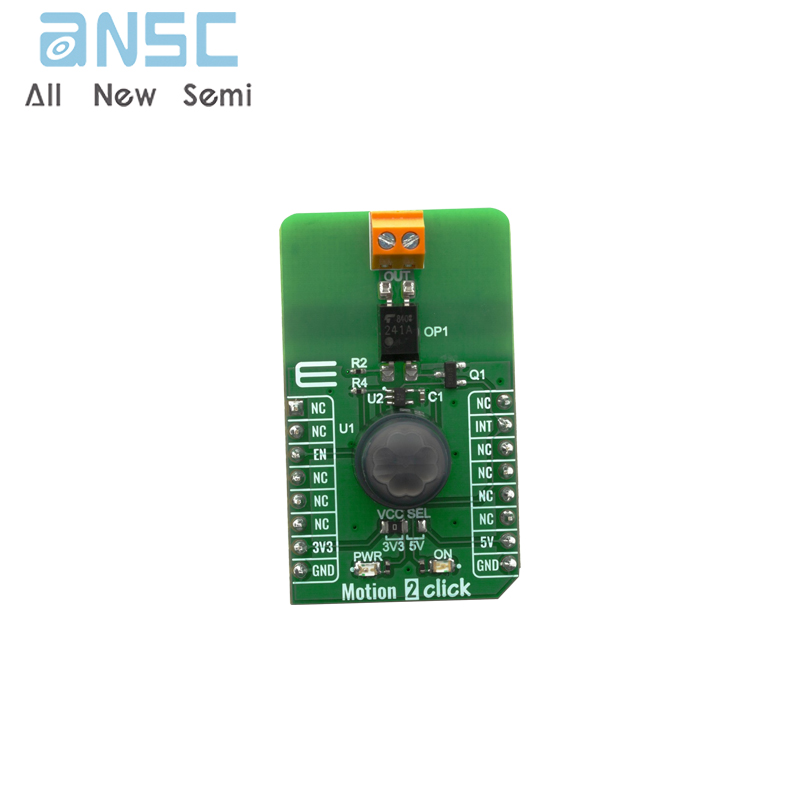

Mikroe Motion 2 Click is based on the Panasonic EKMC1607112 PIR motion sensor and is used as a human motion detector. The Toshiba TLP2419 photoelectric relay also appears on the circuit board. It is used to provide enhanced current isolation for external signals used to drive certain external high-power electronic devices when motion is detected. It allows for up to 40V between SSR contacts in the disconnected state and up to 2A current in the connected state. This is due to the very low on state resistance.

Mikroe Motion 2

Feature

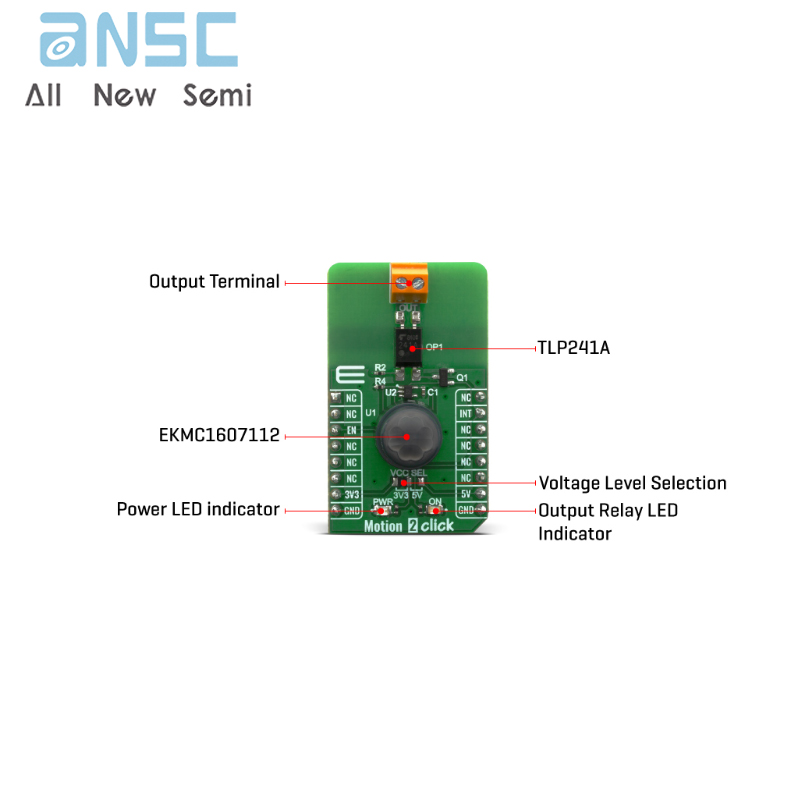

Vehicle module: EKMC1607112 PIR motion sensor; Toshiba TLP241A photoelectric relay

32 detection zones, with horizontal and vertical detection angles of 90 ° C

Interface: GPIO

Compatibility: mikroBUS

Click on board size: M (42.9mm x 25.4mm)

Input voltage: 3.3V or 5V

Application

Alarm system

Light switch controller

Automatic doors and similar systems that require detection of personnel presence
